Coolum 10X3: 3 metres wide, and designed around the way you actually live

Standard Turn-key Home from $179,900

SLEEPS 1-4


1x Queen size ground level bedroom
1x Optional extra Sofa Bed


DIMENSIONS


10m Length
3m Width
4.2m Height


PRICE


$179,900

FEATURES


Single level design with storage loft
Separate ground level bedroom
Full-wall built-in robes
Central bathroom/ensuite design
Central galley kitchen
Storage loft
Large 1200x900mm shower tray
10T rated trailer with air-break system


Description

The Coolum 10x3 is a tiny home that's been laid out the way a home should feel. It's a natural, intuitive flow that makes the Coolum feel less like a tiny home and more like a properly considered house.

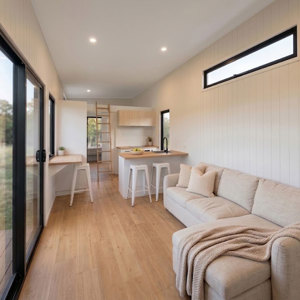

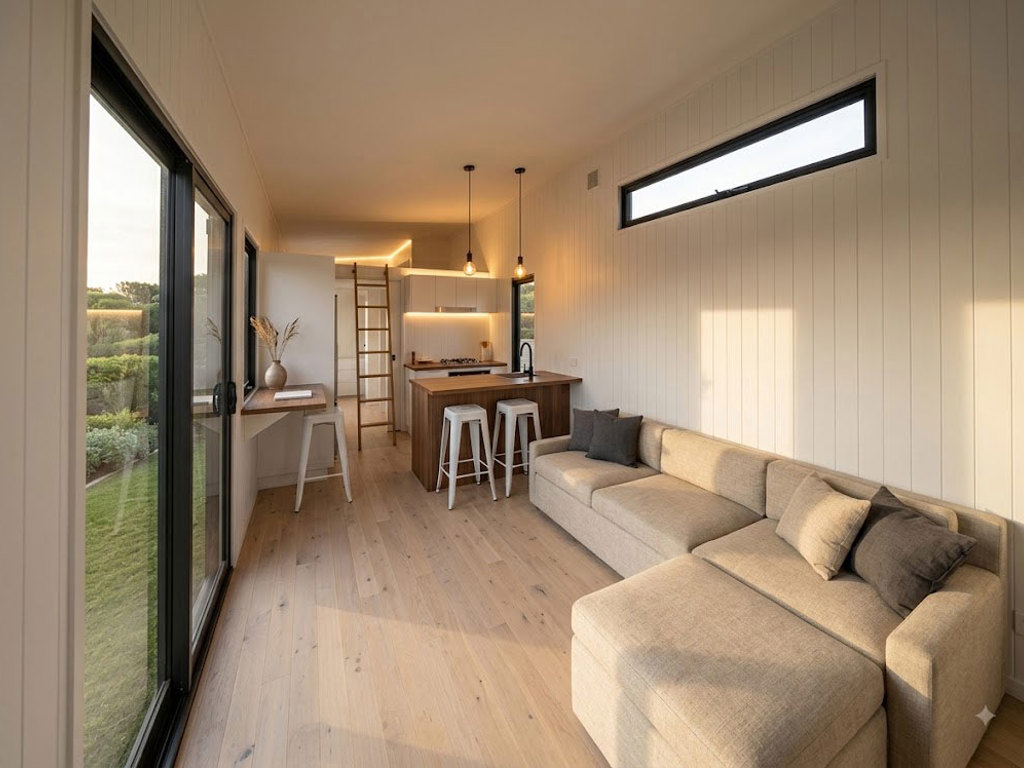

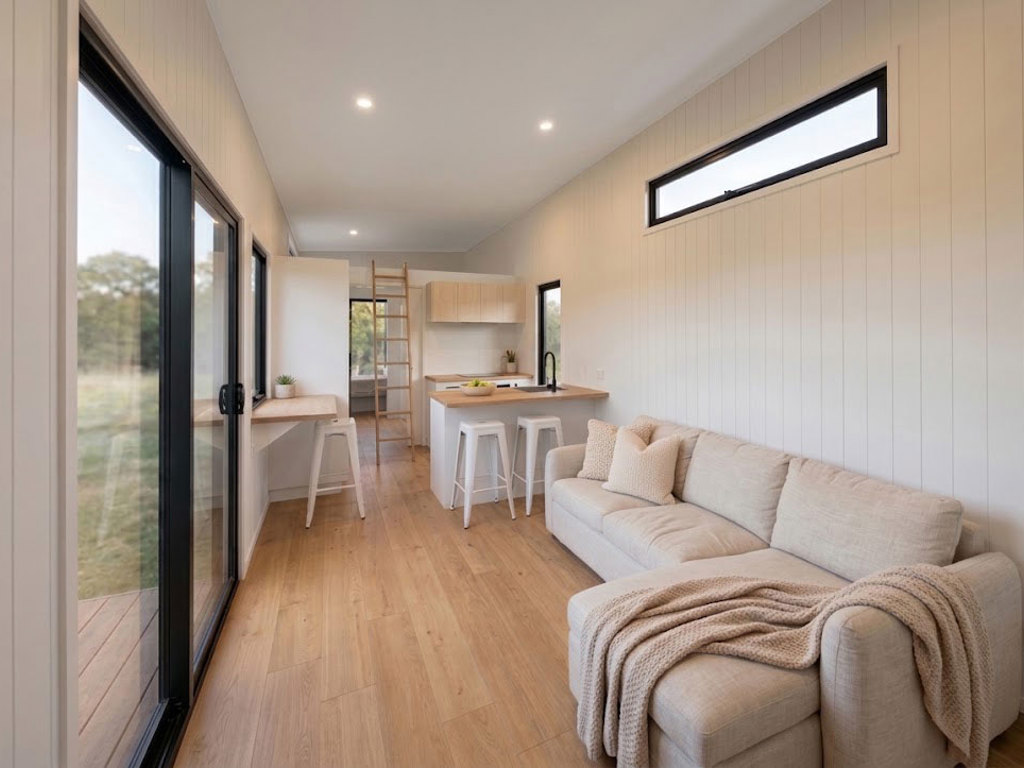

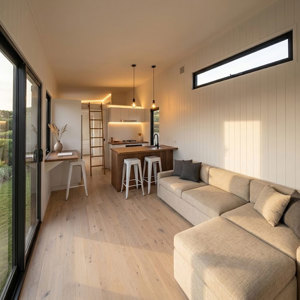

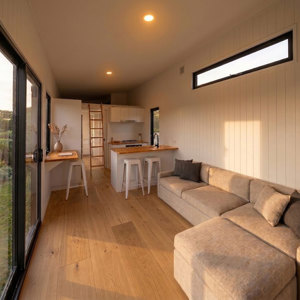

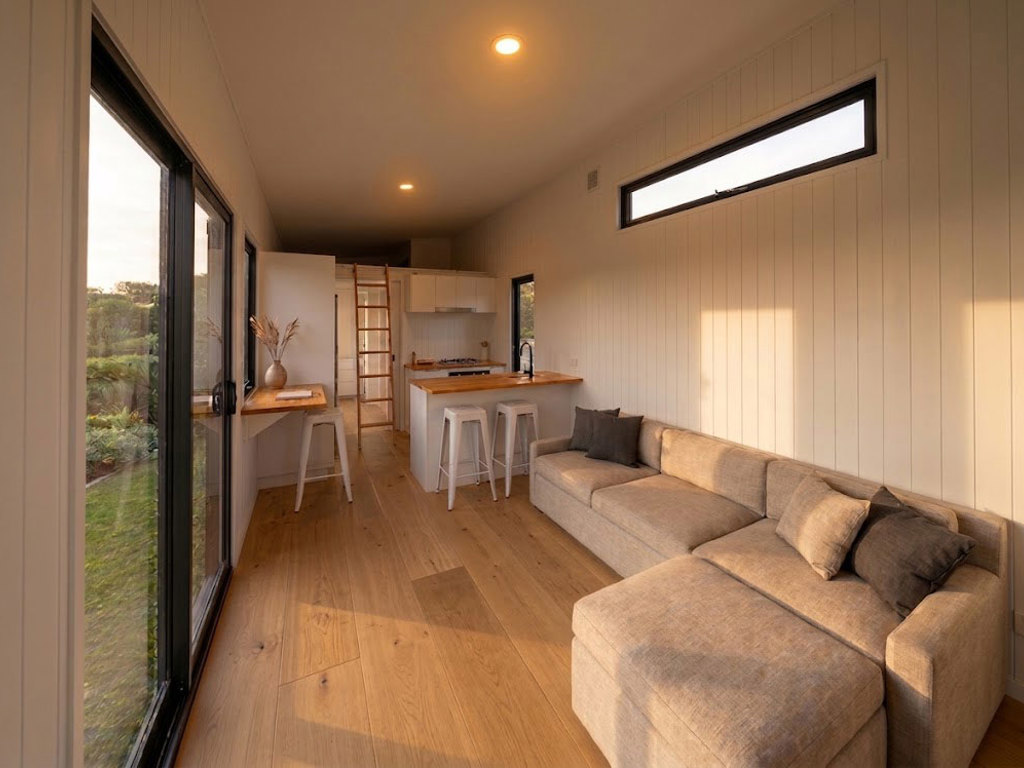

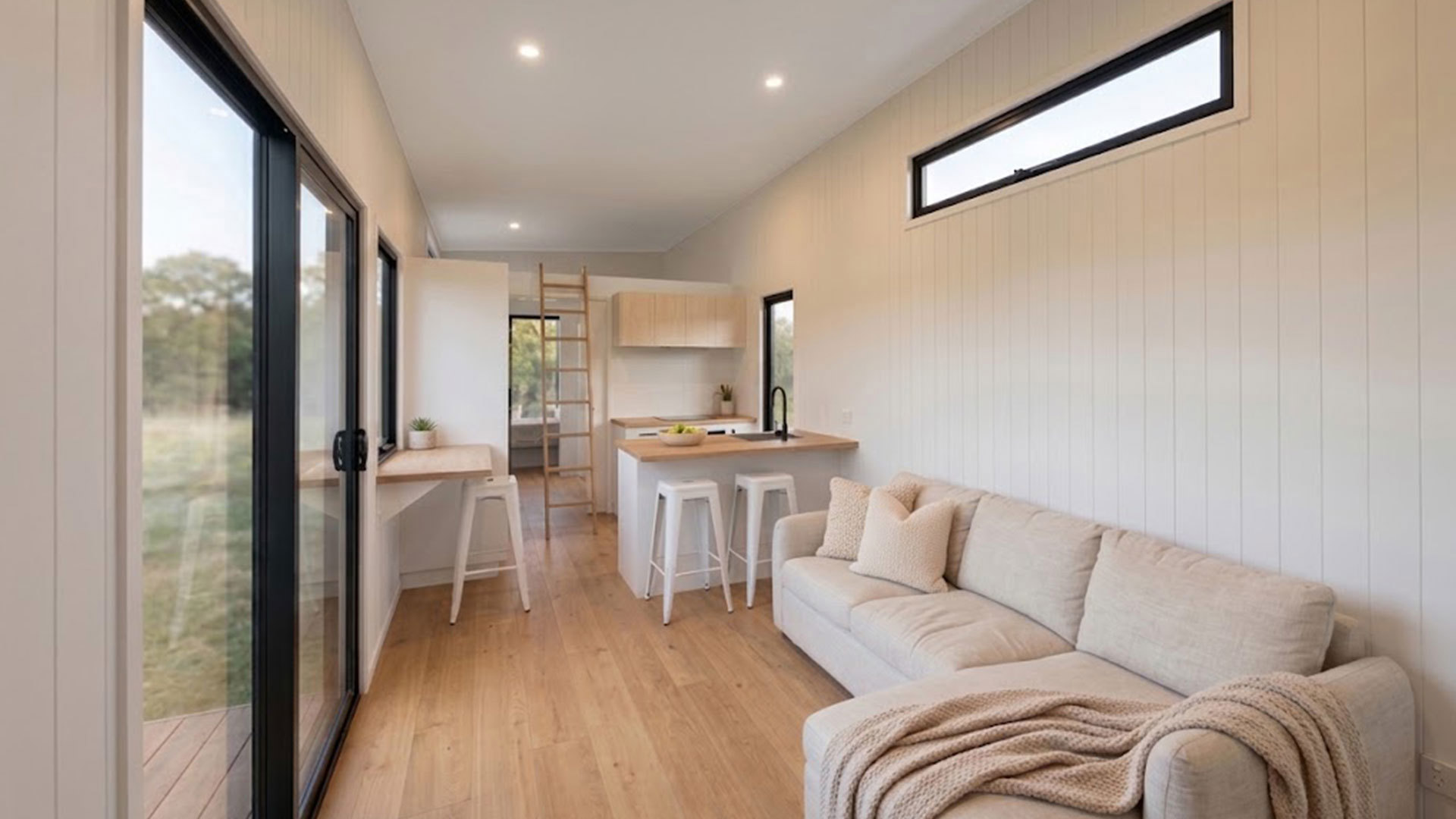

Step inside through the large sliding entry door and the living space opens up in front of you. With 2.9 metres of dedicated lounge zone and plenty of natural light, this end of the home is made for relaxing, hosting, and switching off.

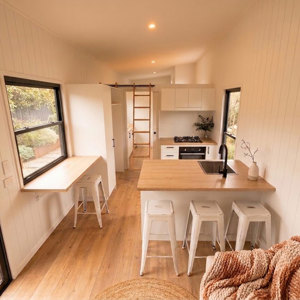

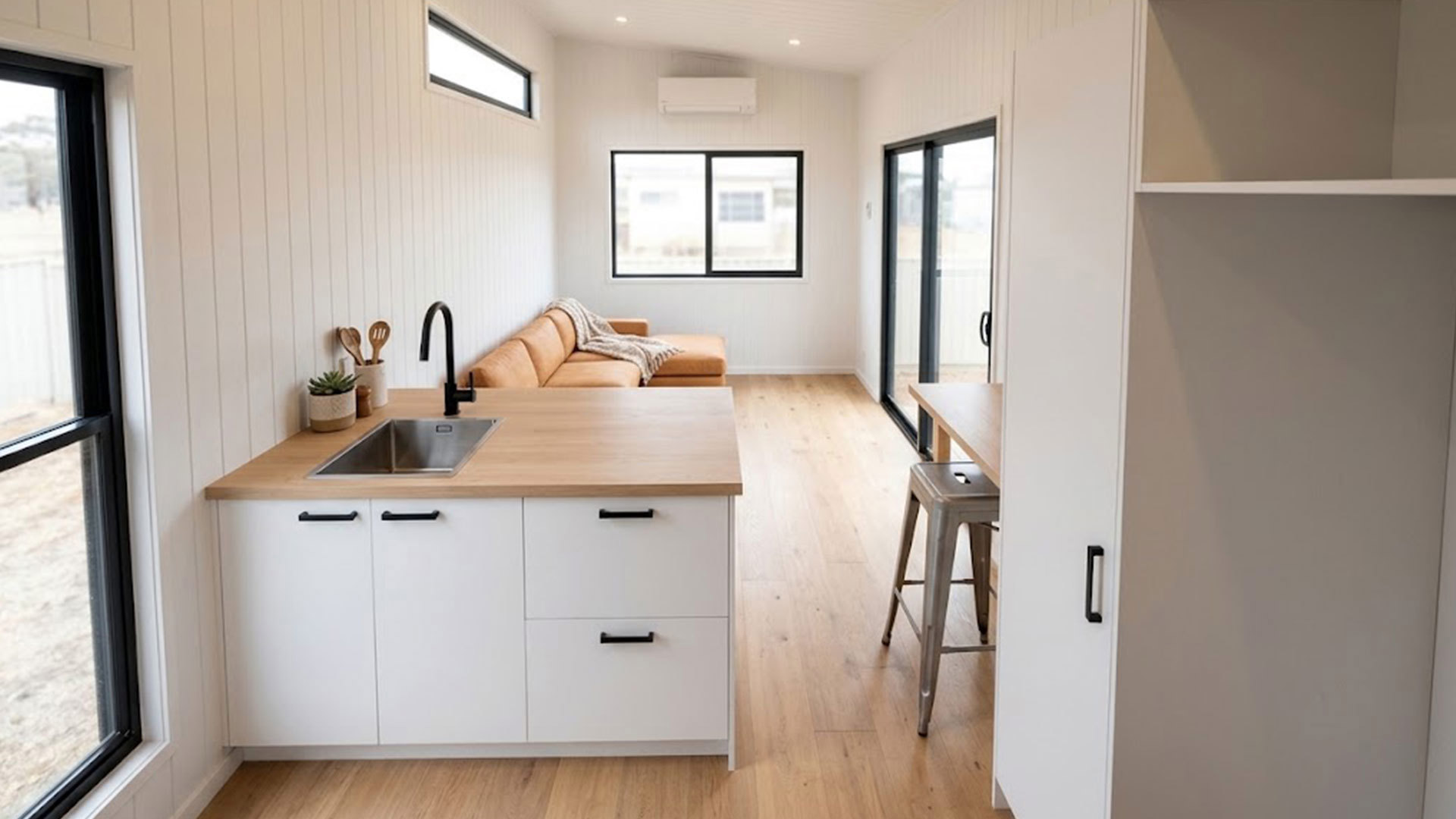

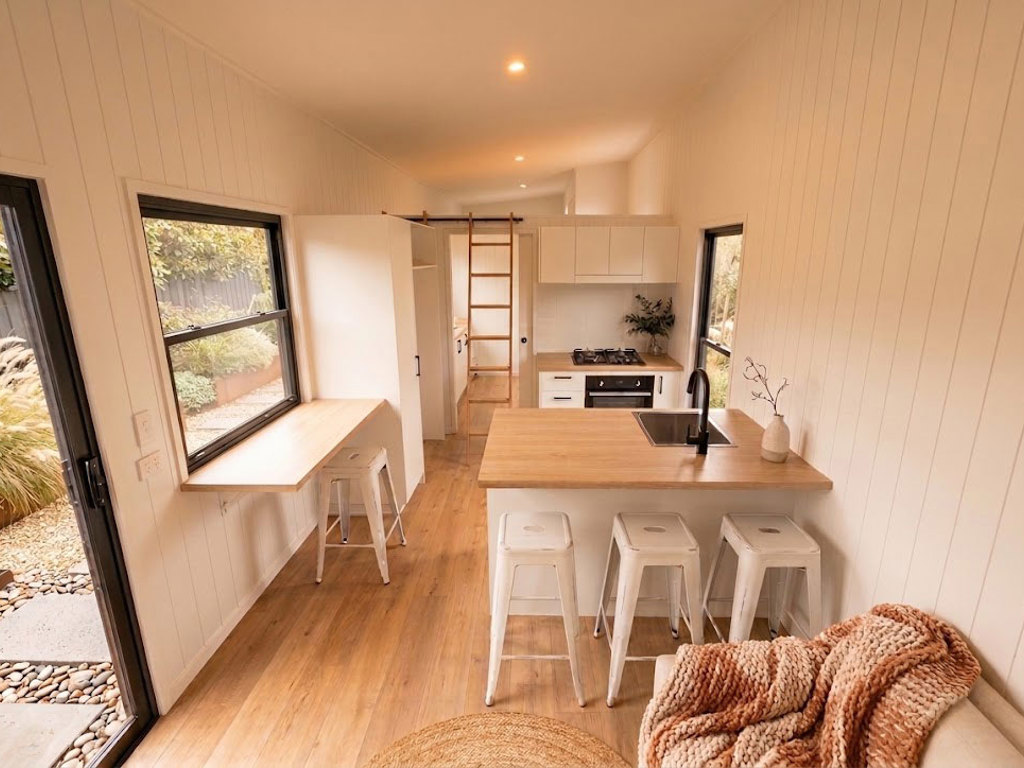

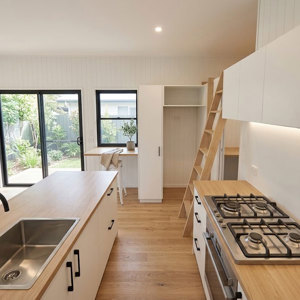

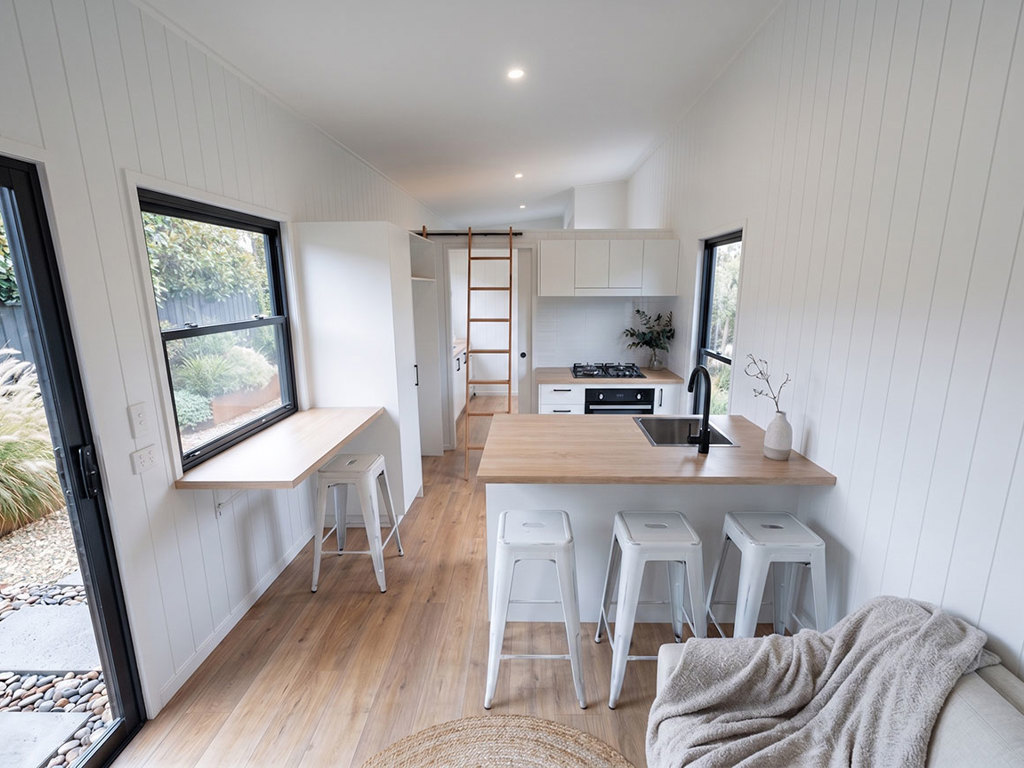

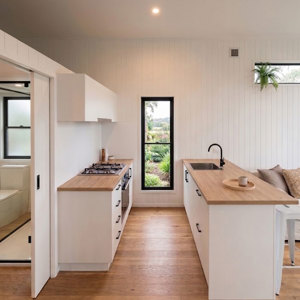

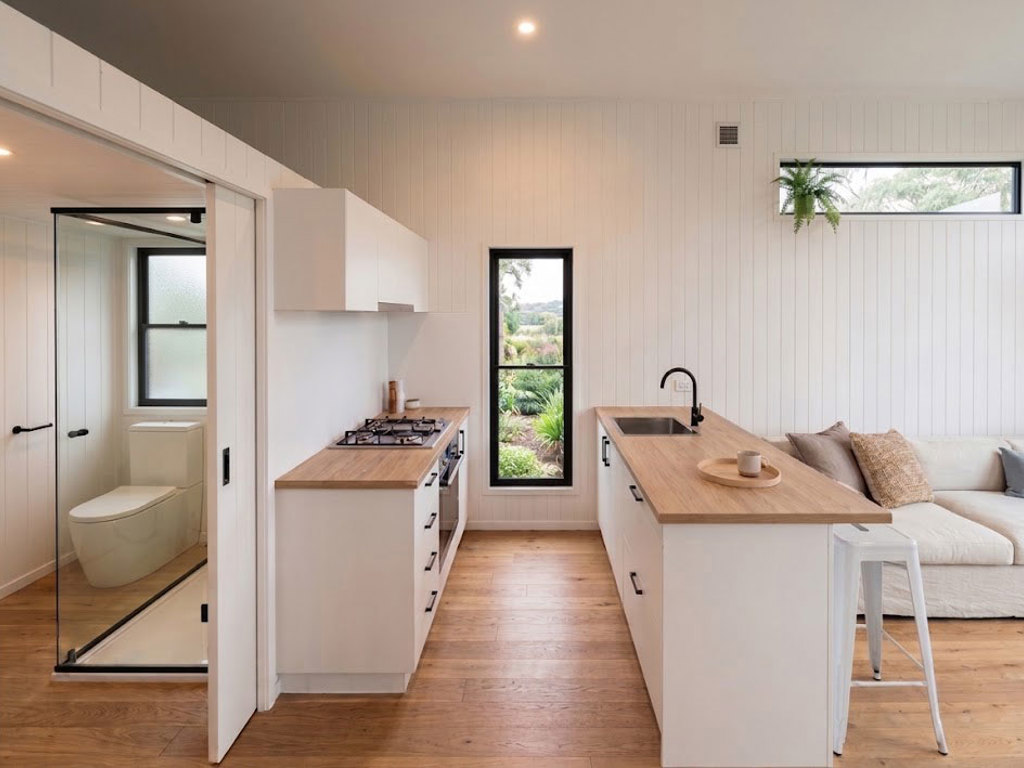

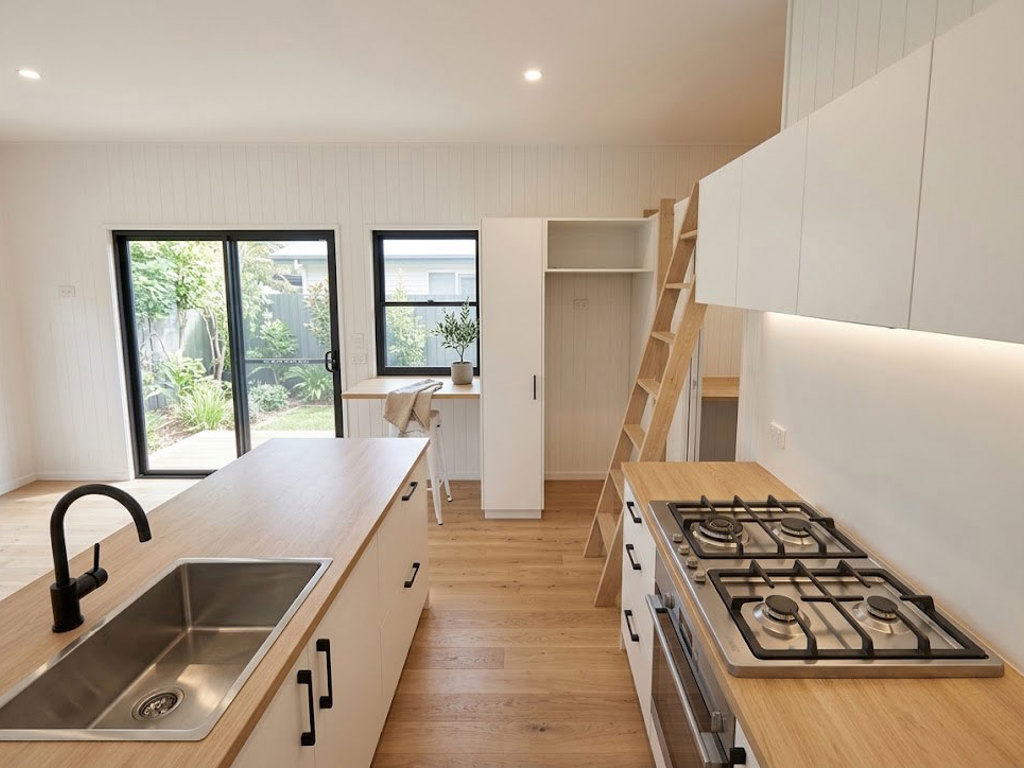

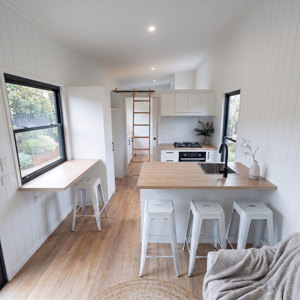

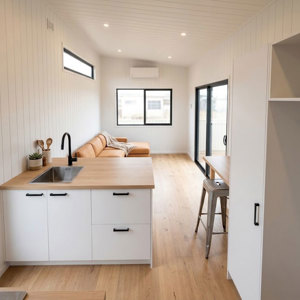

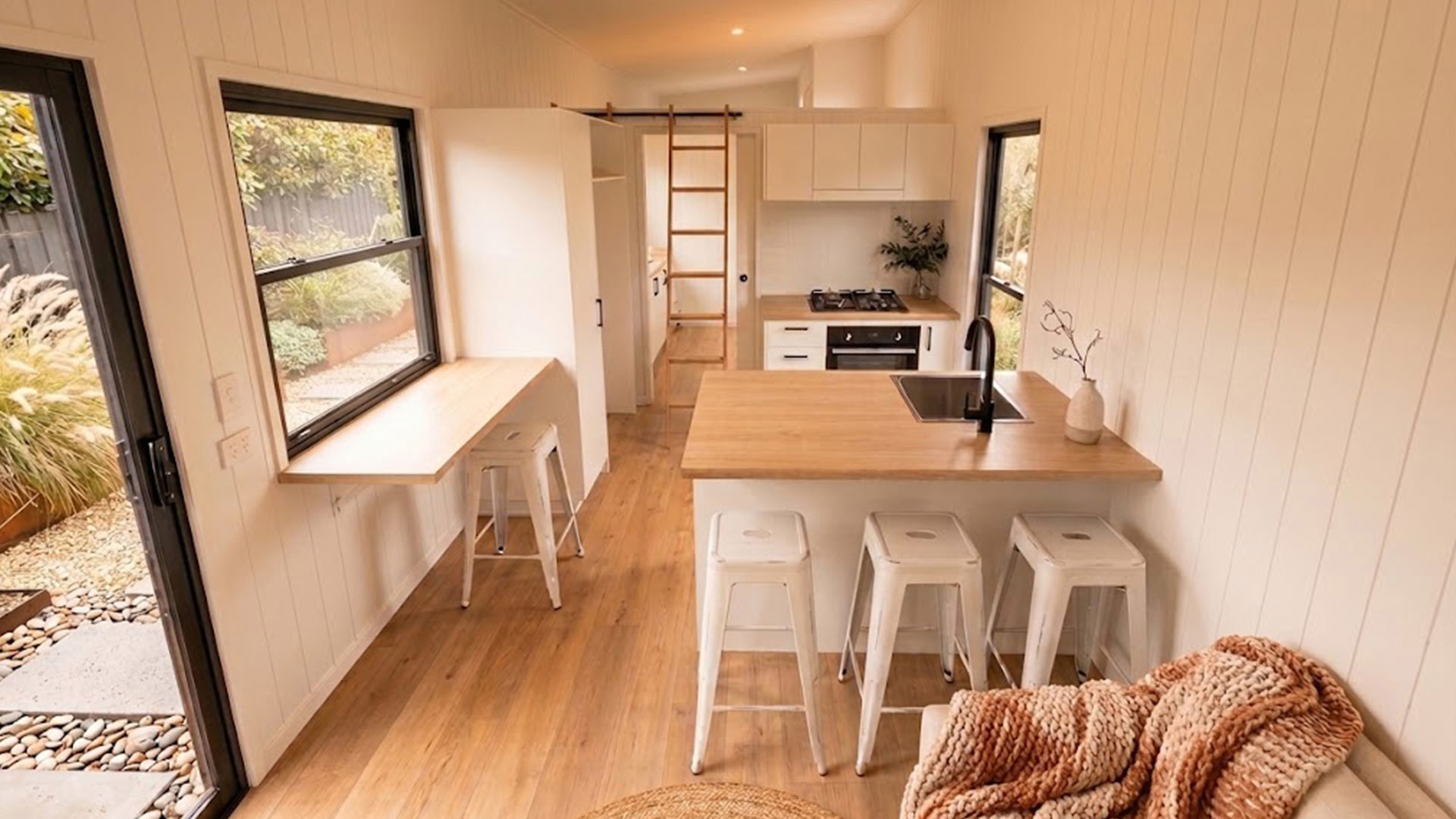

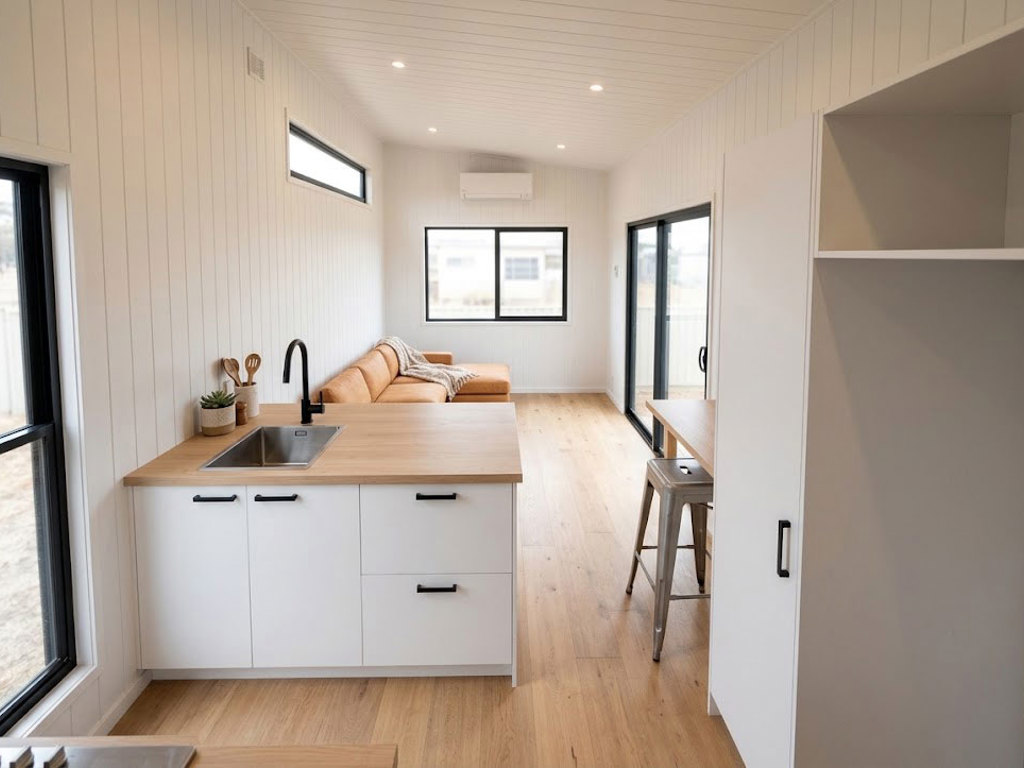

Move towards the centre and you reach the kitchen — fitted with a full-size fridge, pantry, electric oven, rangehood, and cooktop — with a study nook built in alongside it. For anyone working from home, the study space is a genuine feature: a dedicated spot to focus, tucked within the kitchen zone, separate from both the living area and the bedroom.

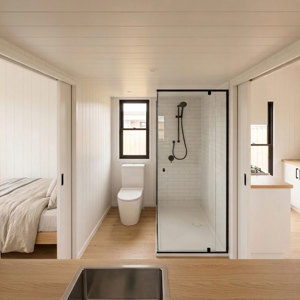

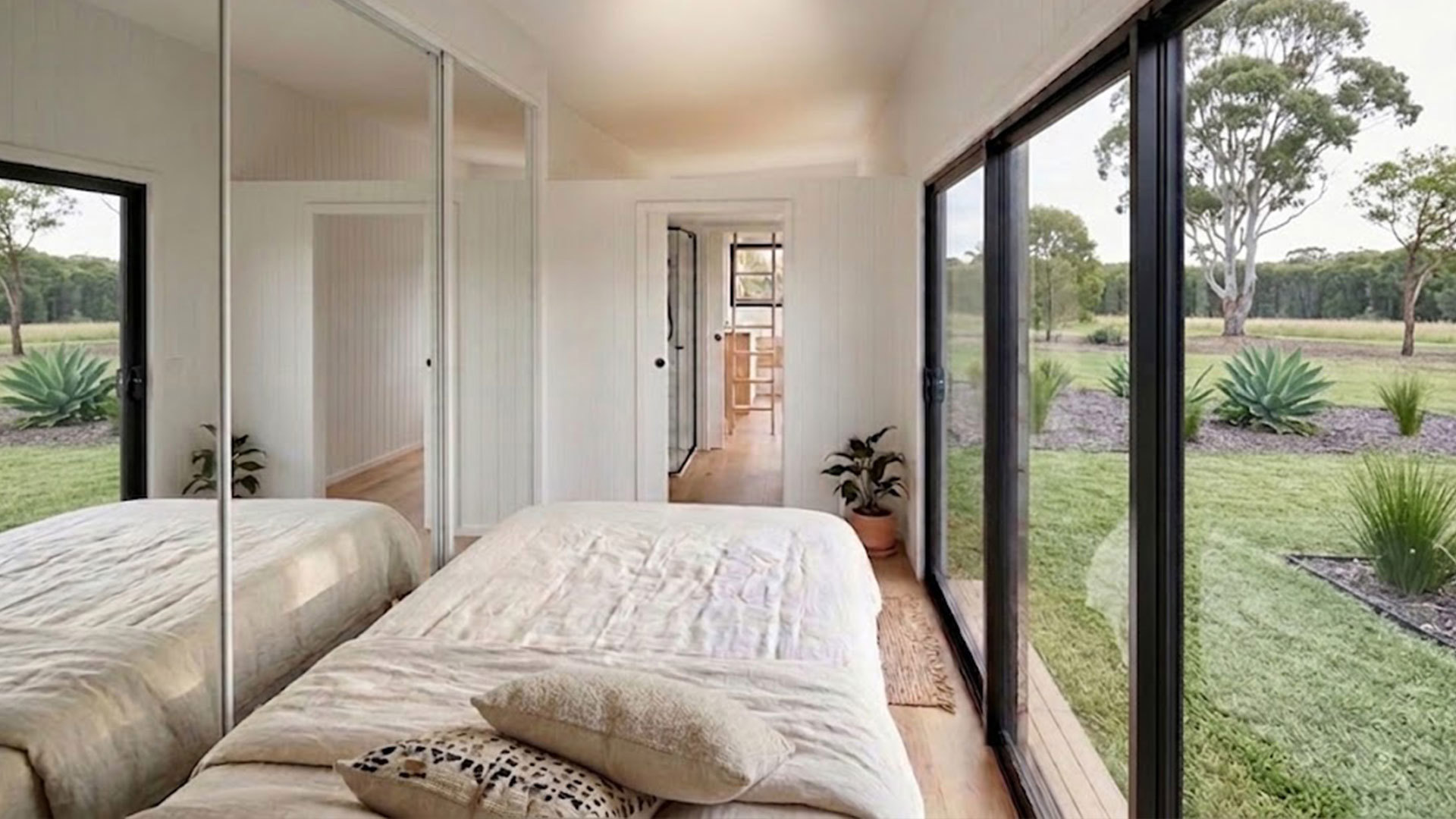

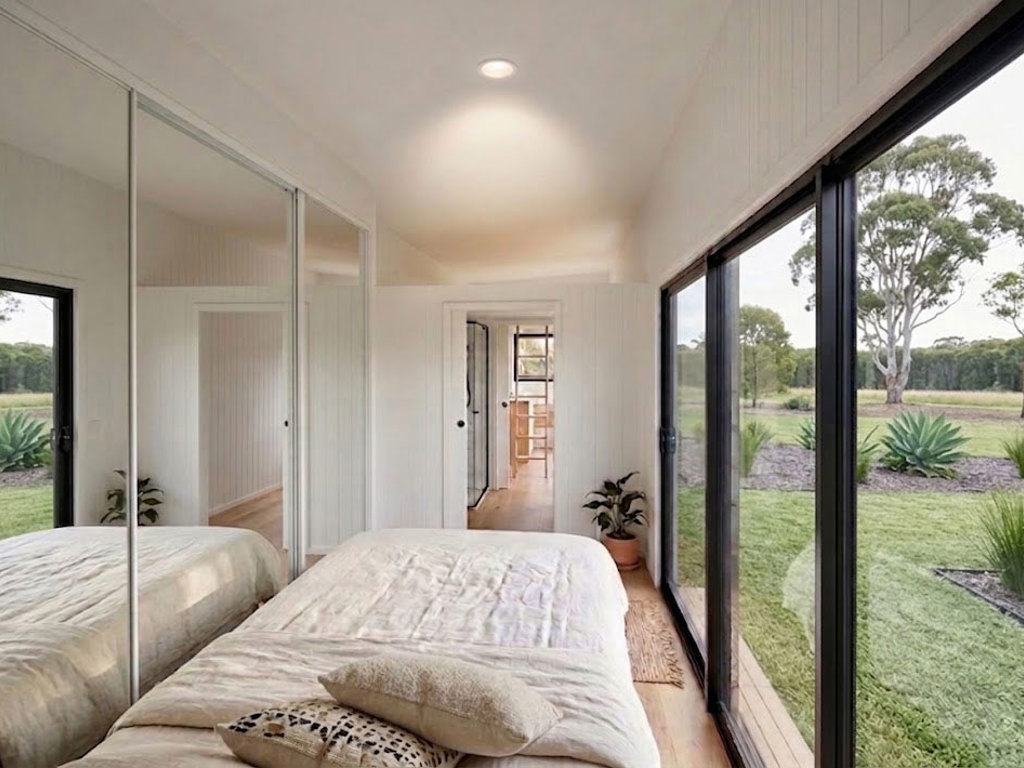

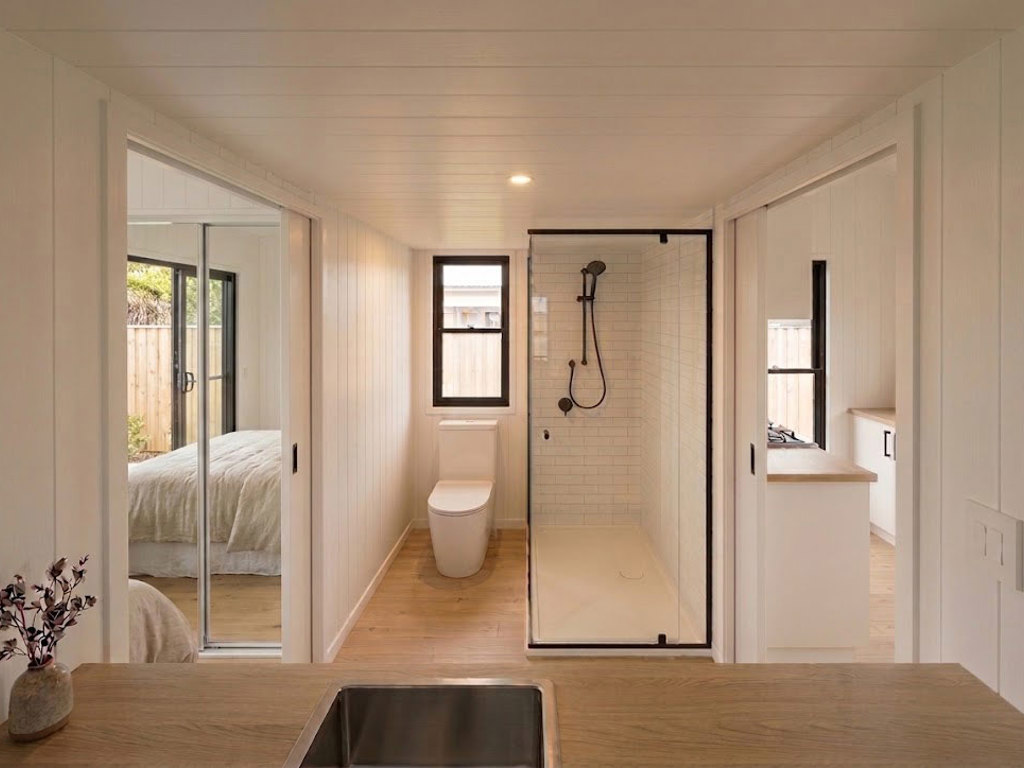

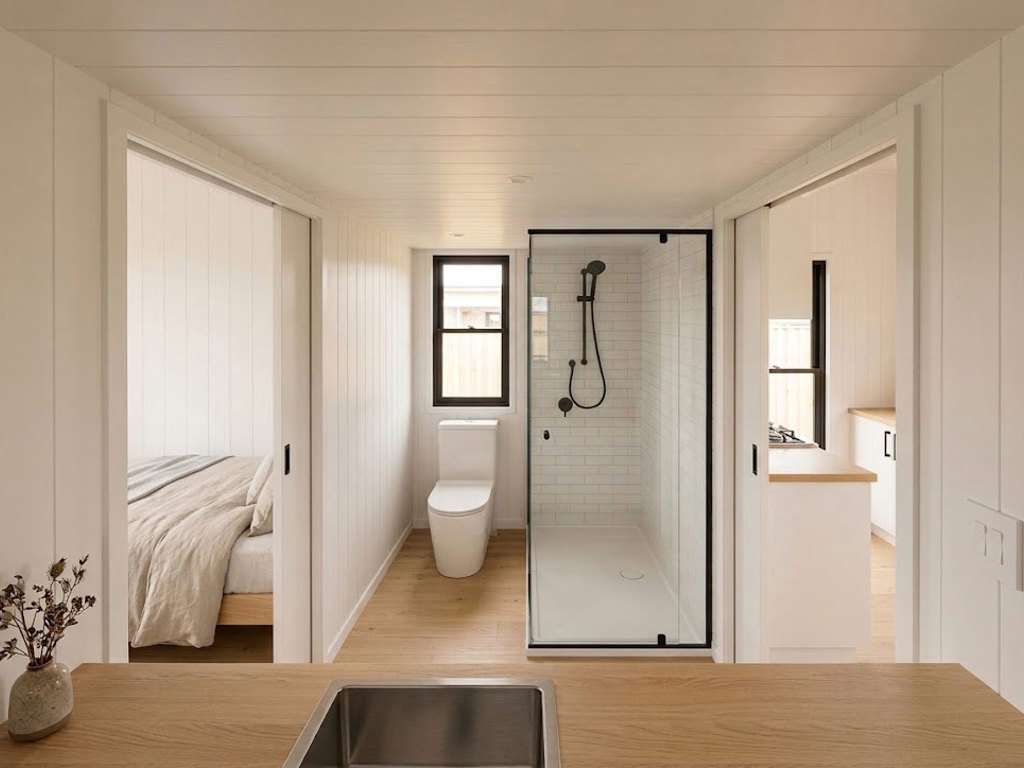

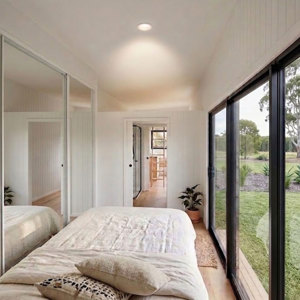

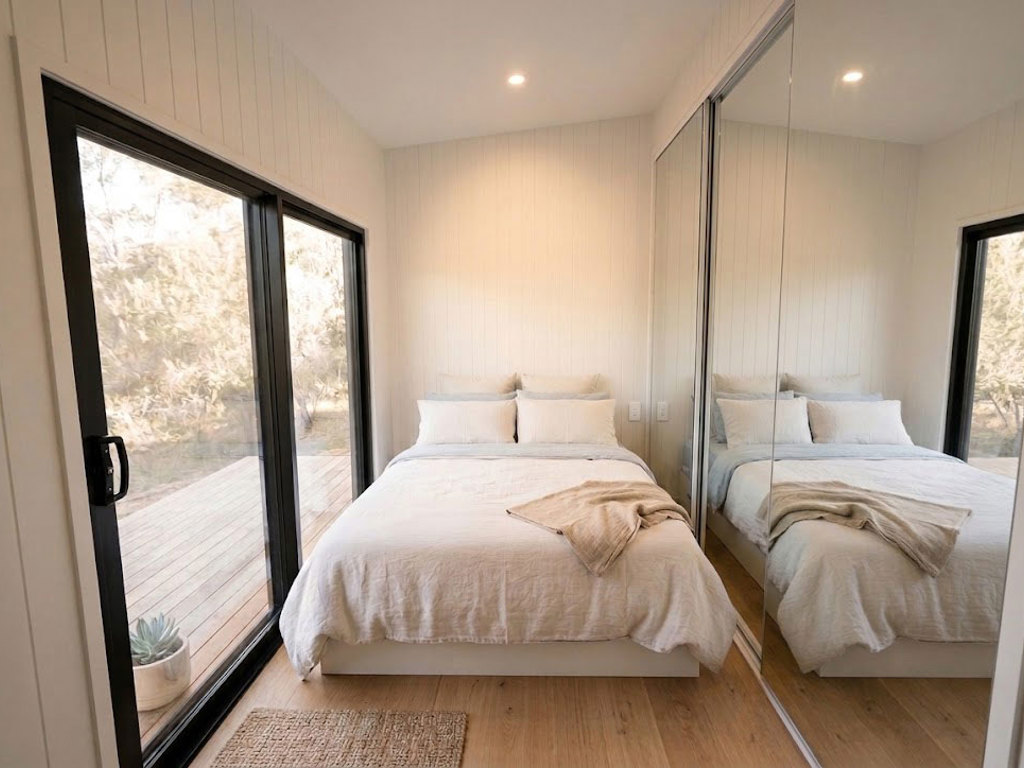

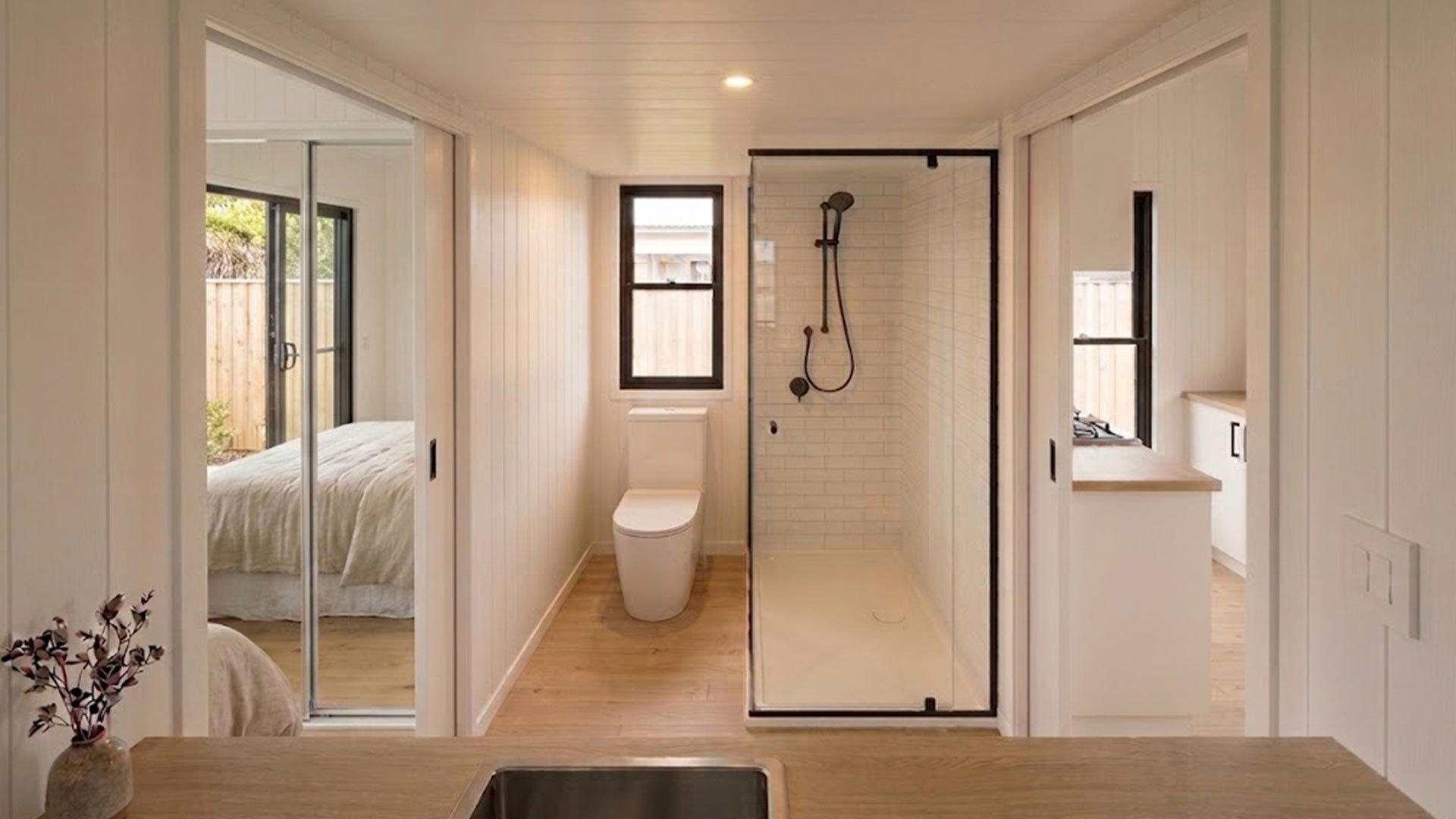

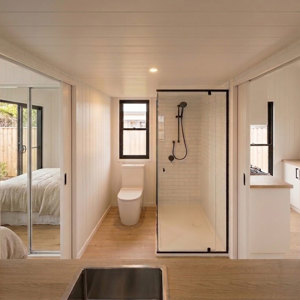

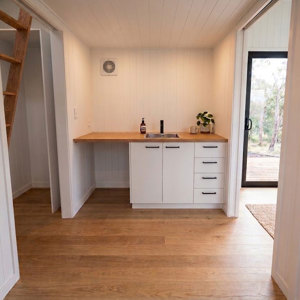

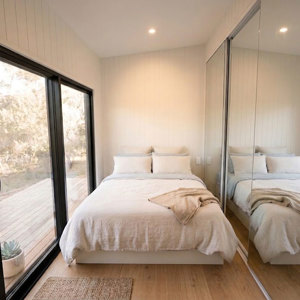

The central bathroom works as both a bathroom and an ensuite — accessible from the living spaces and from the bedroom, which sits privately at the far end of the home. The bathroom is fully equipped with a 1200mm x 900mm shower base, vanity, toilet, and space for a washing machine. The bedroom fits a Queen-size bed and features a full-wall built-in robes behind triple sliding mirror doors — generous storage, with the mirror finish making the room feel larger than it is.

Above, a storage loft runs the width of the home and is accessible via an in-situ ladder — ideal for seasonal storage, luggage, or anything you want out of the way.

Like every model in the 10x3 range, the Coolum sits on our custom Australian-made skeletal steel trailer rated to 10 tonnes gross — VIN plated, ROVER compliant, and fitted with air brakes on all four wheels. Road-legal across Australia, and built to carry a home of this size with confidence.

The Coolum 10x3 is the right choice for buyers who want single-level accessibility, a genuine work-from-home setup, and a layout that puts the living spaces front and centre — all on a road-legal trailer that can move with you.


*We offer three building stages; Lock-up, Shell and Turn-Key. You can customise your individual requirements and inclusions in each stage.

**The photos and virtual tour published for this model may have had some Upgrades added. Please get in touch to get Standard Inclusions information.

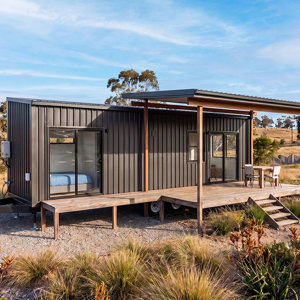

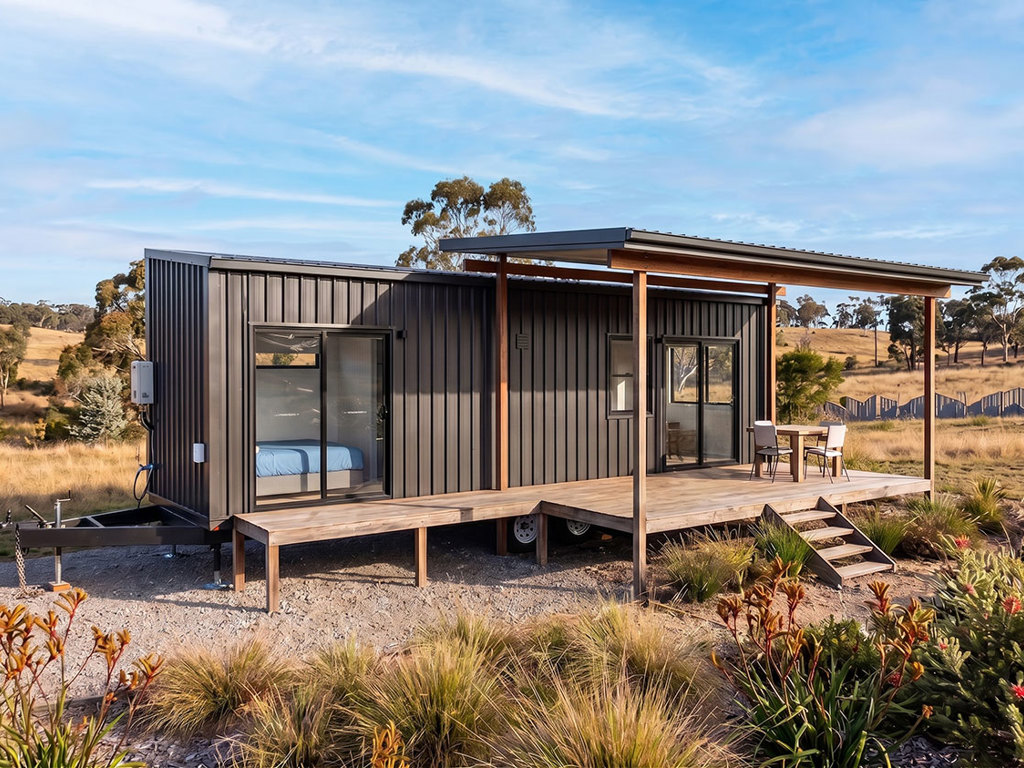

***All deckings and other external structures for our standard models are not included in the price and were either built by the client or a local builder arranged by the customer after delivery.

Features and Inclusions

Trailer

  • 10x3 Trailer - 10T rated with air brakes
  • Fully painted for extra protection

Living Room

  • Features
    • 2.9M Of dedicated lounge zone
  • Windows and Doors
    • 1x Sliding door 2100H x 1810W + fly screen
    • 1x Sliding window 1200H x 1810W
    • 1x Fixed window 400H x 1810W
  • Appliances
    • 3.5KW Air conditioning
  • Electrical
    • 1x LED ceiling downlight
    • 2x Double power point
    • 1x Double power point with USB

Kitchen

  • Features
    • Breakfast bar / study nook
    • Pull out pantry
    • Loft access ladder
  • Windows and Doors
    • Double hung window 1200H x 910W + fly screen
    • Double hung window 1200H x 600W + fly screen
  • Appliances
    • Stainless steel gas cooktop 4 burners
    • Stailess steel electric built-in oven
    • Ducted slide out recirculating rangehood
  • Fittings
    • Standard chrome or black kitchen tap
    • Standard chrome or charcoal stainless steel sink
  • Electrical
    • 1x LED ceiling downlight
    • 5x Double power point
    • Smoke alarm
  • Cabinetry
    • Kitchen cabinets + overheads (as per design)
    • Pull out pantry
    • Soft touch close to doors and drawers where suitable

Bathroom

  • Features
    • 1200x900MM Shower
  • Windows and Doors
    • Double hung 1200H x 610W + fly screen
    • 2x Cavity sliding door 2040H x 620W with privacy lock
  • Fittings
    • Standard chrome or black shower head
    • Standard chrome or black shower mixer
    • Standard chrome or charcoal bathroom double bowl sink
    • Standard chrome or black basin mixer
    • Washing machine taps ready
  • Electrical
    • 1x LED ceiling downlight
    • 2x Double power points
    • Extractor fan
  • Toilet / Shower
    • Nature Loo Alectura premium composting toilet
    • Shower 1200x900MM
    • Toughened glass semi frameless shower screen

Main Bedroom

  • Features
    • Suitable for queen or double size bed
    • Full-size storage robes with mirrored sliding doors
  • Windows and Doors
    • Sliding door 2100H x 1810W + fly screen
  • Cabinetry
    • Full-size storage robes with mirrored sliding doors (as per design)
  • Electrical
    • 1x LED ceiling downlight
    • 1x 2 Way light switch
    • 1x Double power point with USB
    • 1x Double power point

Internal / Structure

  • Waterproof engineered floor boards
  • Insulation batts Ecowool R 2.5
  • Insulated subfloor R 1.4
  • Engineered steel frame
  • Fully painted

Exterior

  • Safety switch board
  • 2x External double power point
  • 32AMP Main switch
  • Colorbond steel roof and wall cladding
  • 2x External LED porch light
  • Dual gas regulator
  • Gas hot water system

UPGRADES and Packages

  • Kitchen / Appliances
    • 205L Fridge and freezer white or stainless steel
    • 4 Burner electric cooktop
    • Stainless steel gas built-in oven
    • Built-in stainless steel single dishwasher drawer
    • 7.5KG Front loading washing machine
  • Heating and Cooling
    • Ceiling fan with light and remote control
  • Bathroom
    • Two doors shaving cabinet with mirror
  • External / Internal
    • External cedar cladding feature wall
    • Bathroom cedar feature ceiling
    • Full cedar feature ceiling
    • Plywood shadow gap feature ceiling
    • Pitched roof
    • Low odour and low VOC eco friendly paint
    • Trailer frame white painting
  • Cabinetry
    • Kitchen recessed LED strip light
  • Composting Toilets
    • 2x NL Alectura heat pad
    • Clesana C1 sealing toilet
    • Cinderella incineration toilet - electric
  • Skylight and Windows
    • Velux manual skylight (VCM) + blinds + screens (665MM x 970MM)
    • Velux power skylight (VCS) + blinds + screens (665MM x 970MM)
    • Velux manual skylight (VCM) + blinds + screens (1275MM x 1275MM)
    • Velux solar skylight (VCS) + blinds + screens (1275MM x 1275MM)
    • Gas strut servery window breakfast bar 1200H x 1810W
    • Bi-fold / gas strut custom fly screen 1200H x 1810W
    • Louvre window kitchen 1760H x 610W + fly screen
    • Louvre window bathroom 1200H x 610W + fly screen
    • Blinds to all windows and doors (excluding kitchen window)
  • Water
    • 2500L Slimline PVC water tank
    • 5000L Slimline PVC water tank
    • 3000L Round PVC water tank
    • 5000L Round PVC water tank
    • Water pump
    • Ezgrey greywater diversion system
    • Grease trap
  • Deck trailers
    • 10M Composite deck trailer with pergola
    • 10M Composite deck trailer with pod and pergola
    • Air conditioning 2.5KW (heating and cooling) - pod room
    • Blinds to all windows and doors - pod room
    • Extra 900MM pine stair kit
    • Deck trailer frame white painting
Solar System Options
Specifications and Inclusions Models
ATH Systems ATH Solar Trailers
Medium BH-10kw Heavy BH-15kw Medium Trailer-10kw Heavy Trailer-20kw
Application Medium Fridge
LED Lights
240v Appliances
TV/Computer
Small AC System
Gas Hot Water System
Gas Appliances
Dishwasher
Washing Machine
Medium/Large Fridge
LED Lights
240v Appliances
TV/Computer
2x Small AC Systems
Gas Hot Water System
Gas Appliances
Dishwasher
Washing Machine
Electric Cooktop
Electric Oven
Medium Fridge
LED Lights
240v Appliances
TV/Computer
Small AC System
Gas Hot Water System
Gas Appliances
Dishwasher
Washing Machine
Medium/Large Fridge
LED Lights
240v Appliances
TV/Computer
2x Small AC Systems
Gas Hot Water System
Gas Appliances
Dishwasher
Washing Machine
Electric Cooktop
Electric Oven
Inverter Type Victron Inverter Multiplus II Victron Inverter Multiplus II Victron Inverter Multiplus II Victron Inverter Multiplus II
Solar Panel Qty 6 8 8 8
Solar Panel Size 475w 475w 510w 510w
Solar Capacity Watts 2850 3800 4080 4080
Battery Type Lithium Lithium Lithium Lithium
Battery Capacity kWh 10 15 10 20
Battery Expansion Capacity N/A 25 30 30
Inverter Nominal kW 5 5 5 8
Inverter Peak W (10 sec) 9000 9000 9000 15000
Inverter Max AC Output A 21.5 21.5 21.5 - (32 Amp Assisted) 21.5 - (50 Amp Assisted)
4G Remote Monitoring 12 Months Free 12 Months Free 24 Months Free 24 Months Free
Cabinet Height mm 740 1440 N/A N/A
Auto-start Generator Optional Optional Included Included
Installation Roof Roof Trailer Trailer

Notes
1) 5 years power equipment warranty.
2) 10 years battery warranty.
3) 25 years solar panels warranty.
* Solar upgrades available, please enquire about.
