Hazel 9x3: Spacious Tiny House Living with a Modern Touch
Standard Turn-key Home from $169,900
SLEEPS 1-4
1x Queen size loft bedrooms
1x Double Size loft bedroom
1x Optional extra Sofa Bed
DIMENSIONS
9.0m Length
3.0m Width
4.3m Height
PRICE
From $169,900
FEATURES
2 different designs available
2.7m couch space

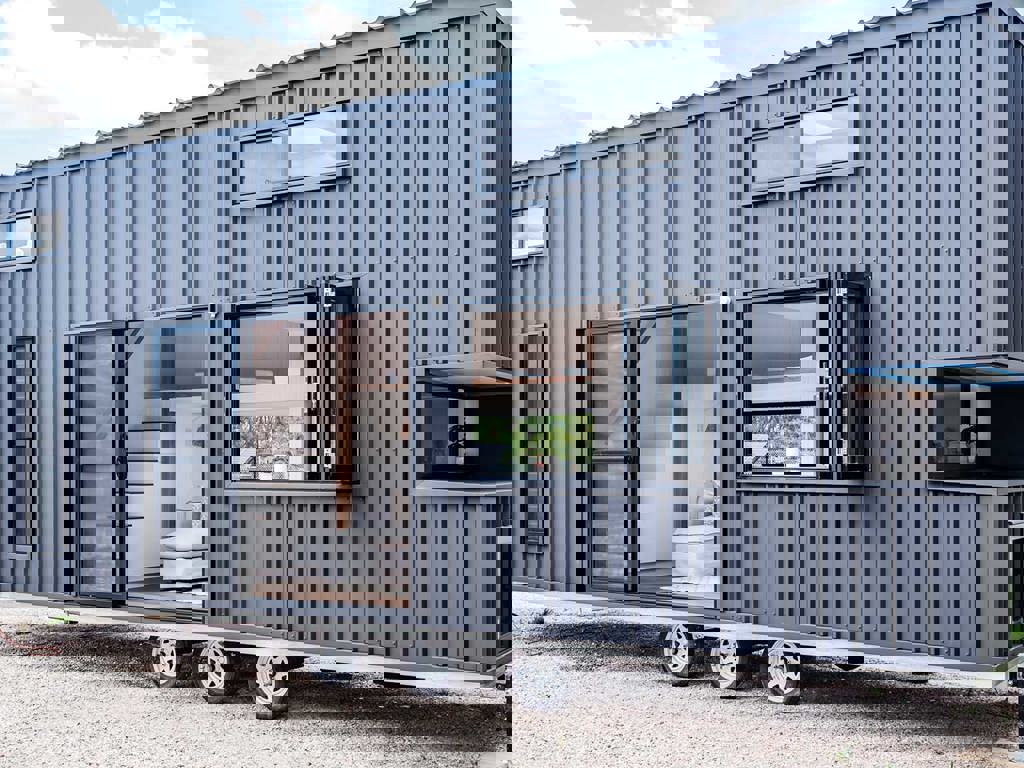

Large triple stacker entry door
U-shaped kitchen
Ample storage spaces
Large 1200x900mm shower space

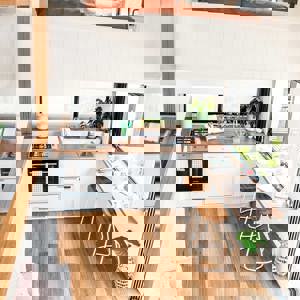

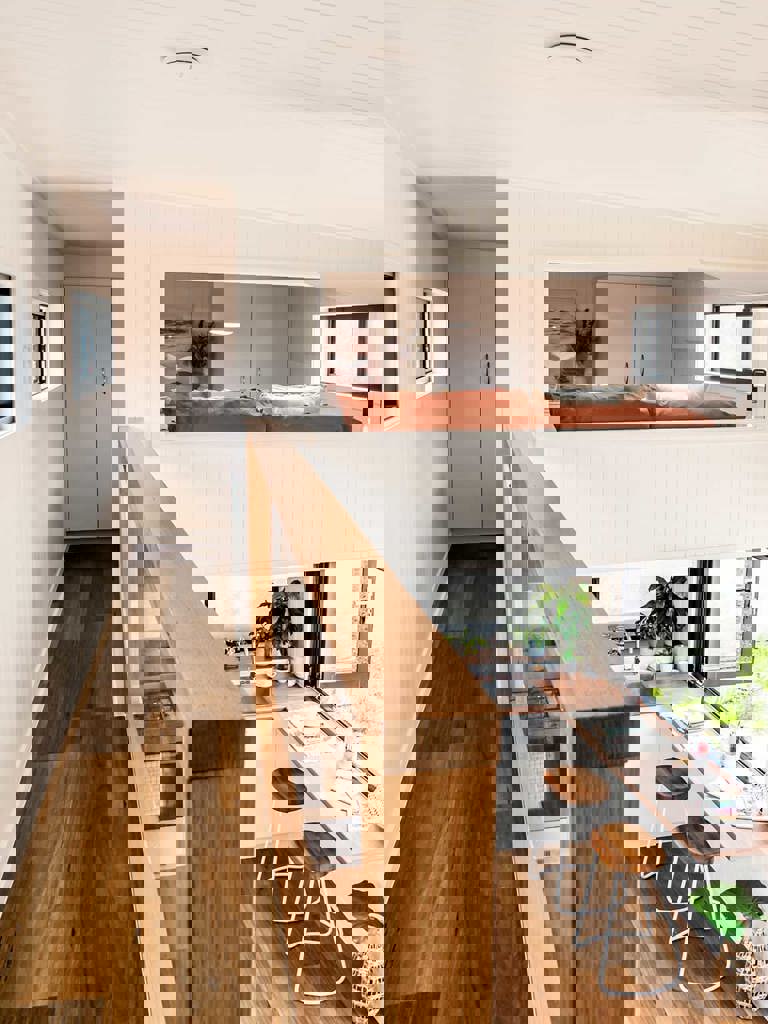

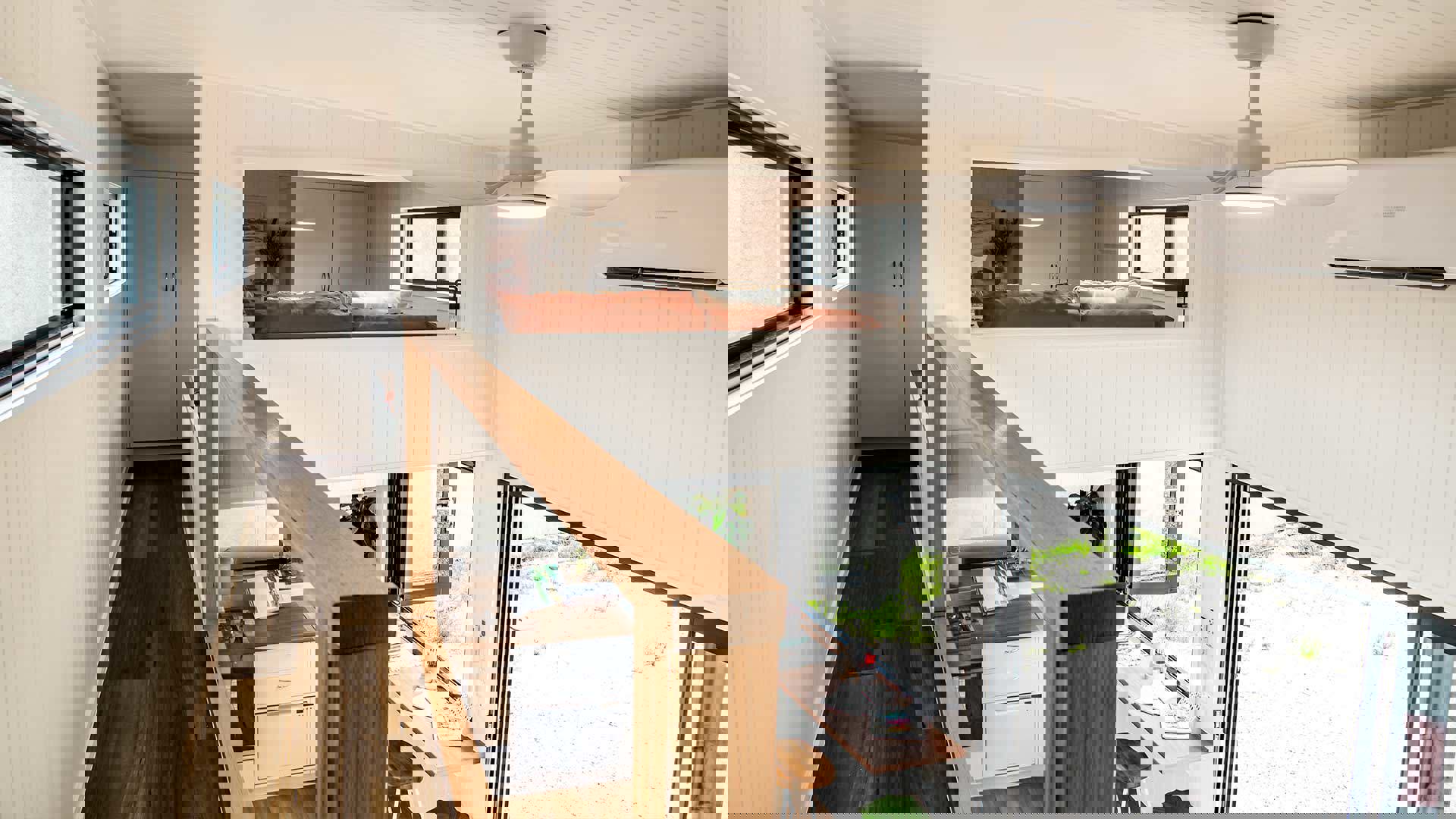

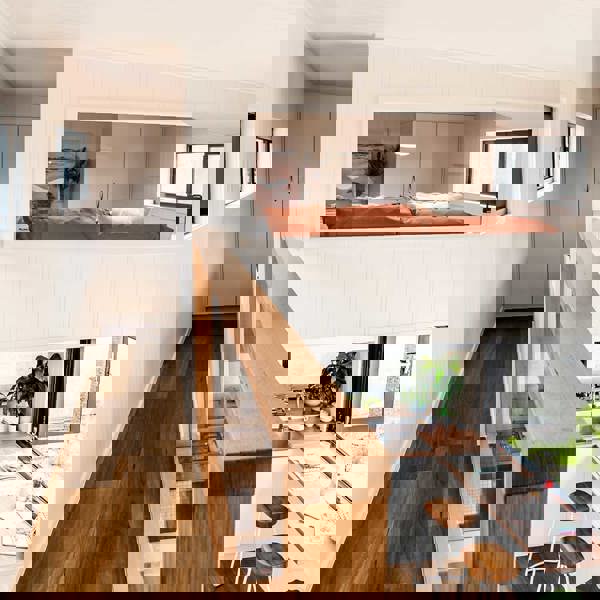

Standing landing between lofts
Optional Standing landing wrapping around the bed

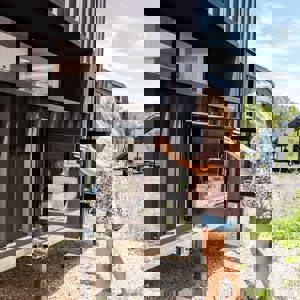

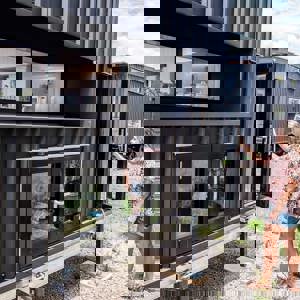

Optional external storage space
DESCRIPTION
Discover the epitome of tiny house living with the Hazel 9x3.
Crafted with precision and designed for the modern dweller, this tiny house model takes the acclaimed Hazel 8.4 to new heights, offering you two enticing design variations to suit your lifestyle.

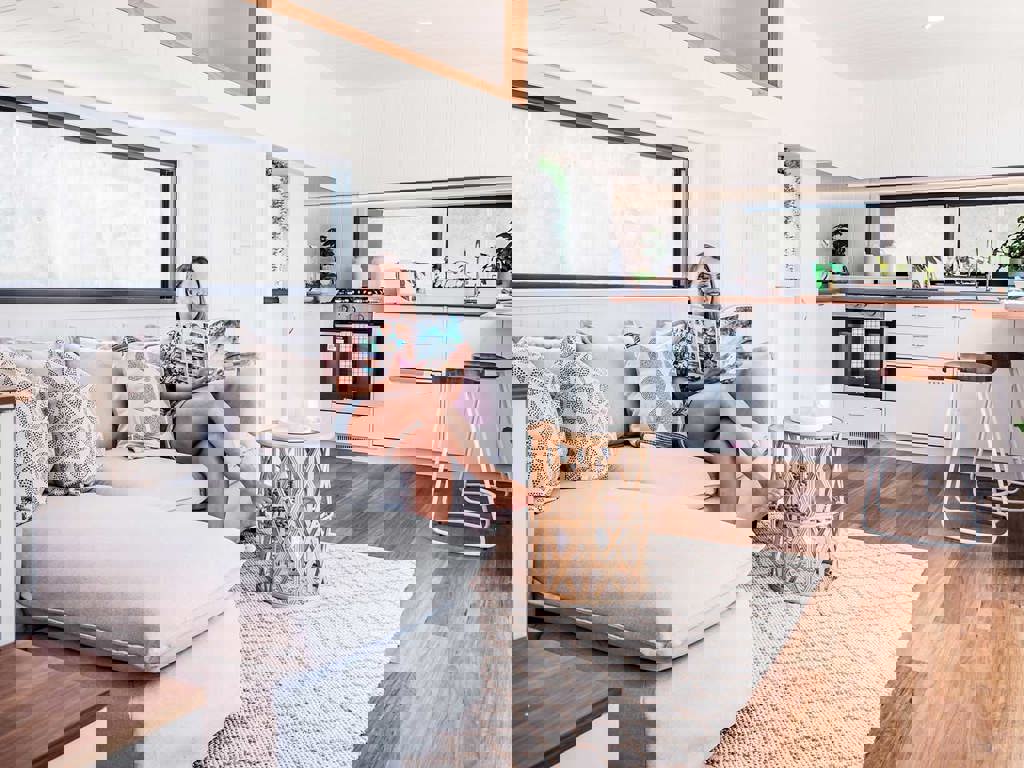

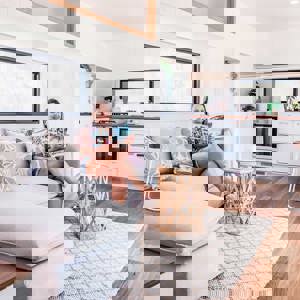

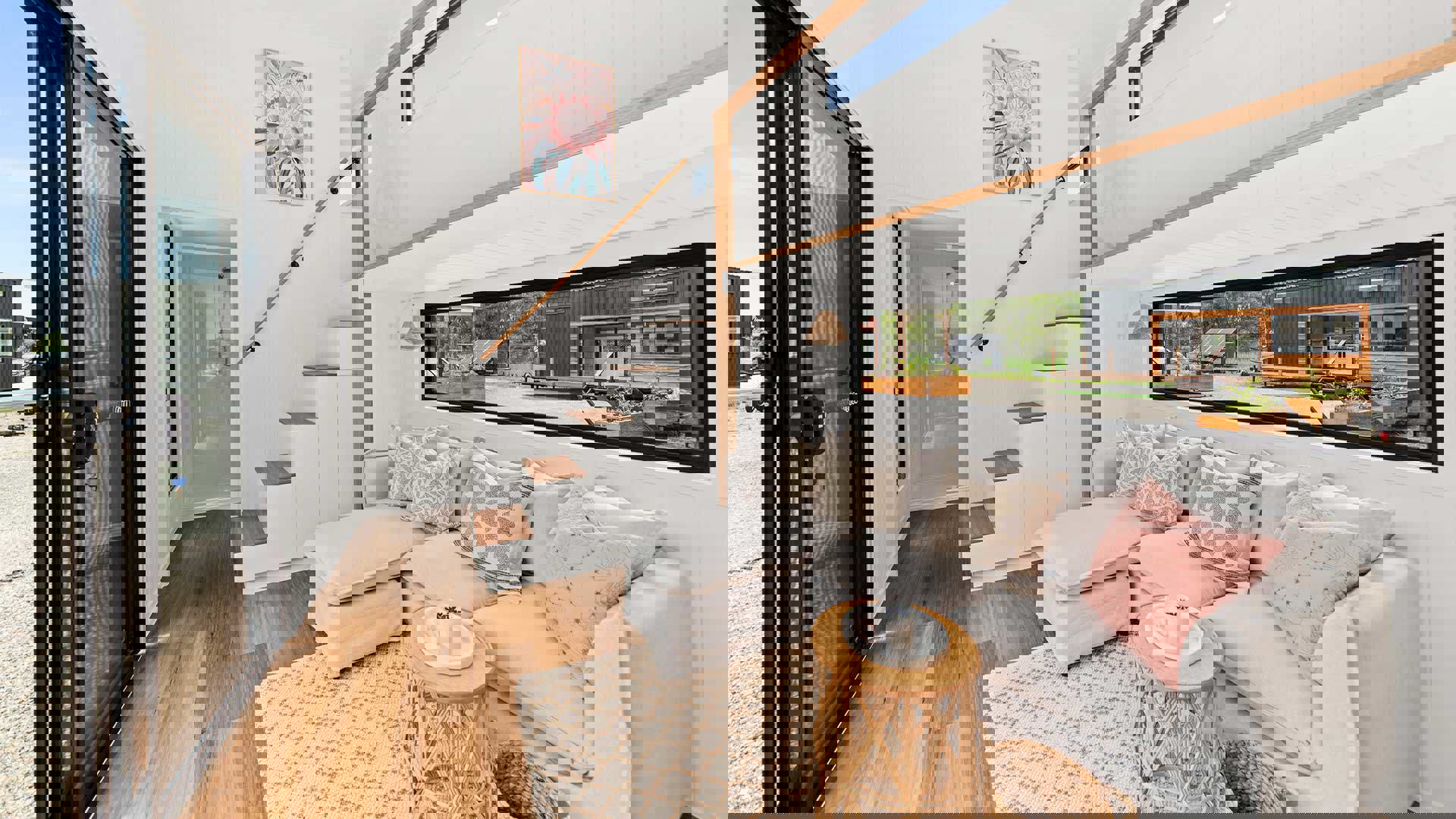

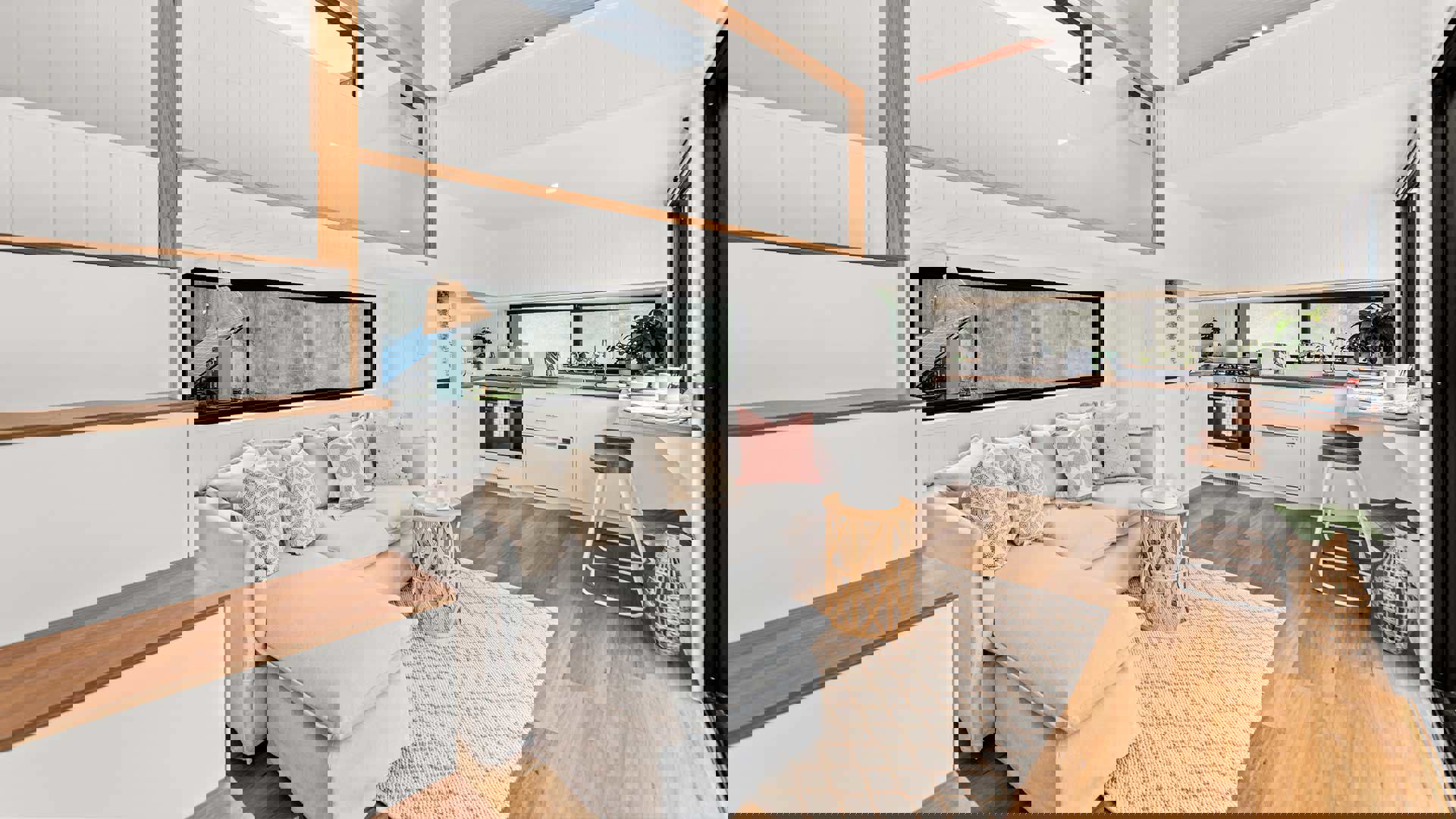

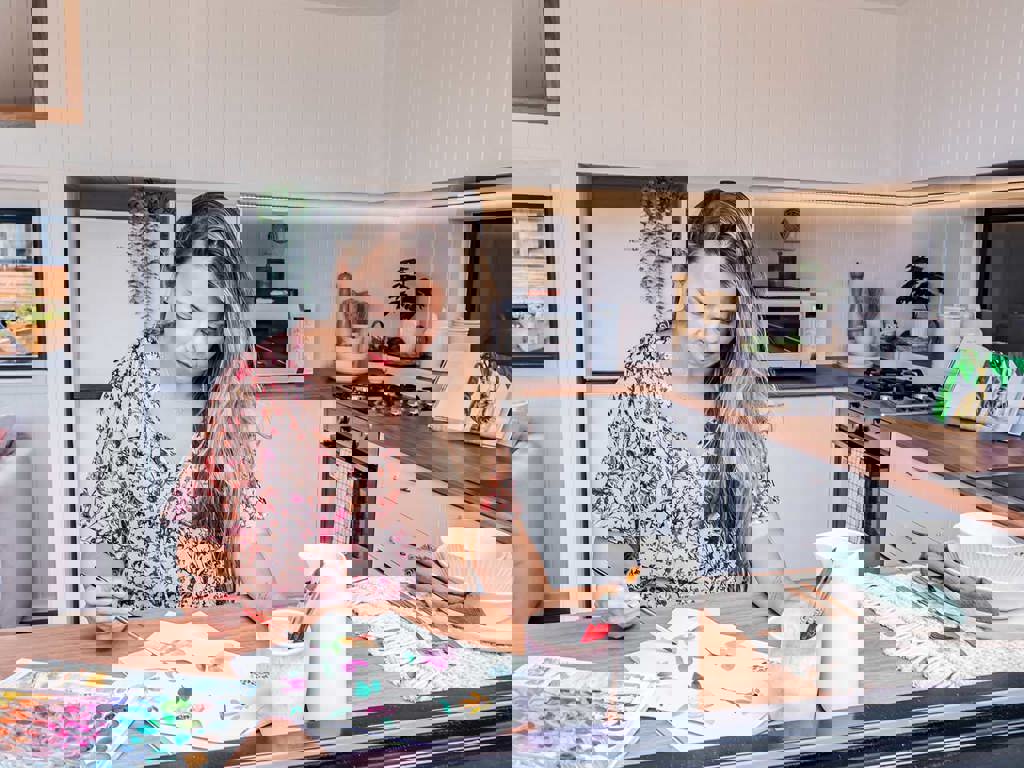

The 2.7m couch space beckons relaxation, complemented by the inviting large triple stacker entry door.

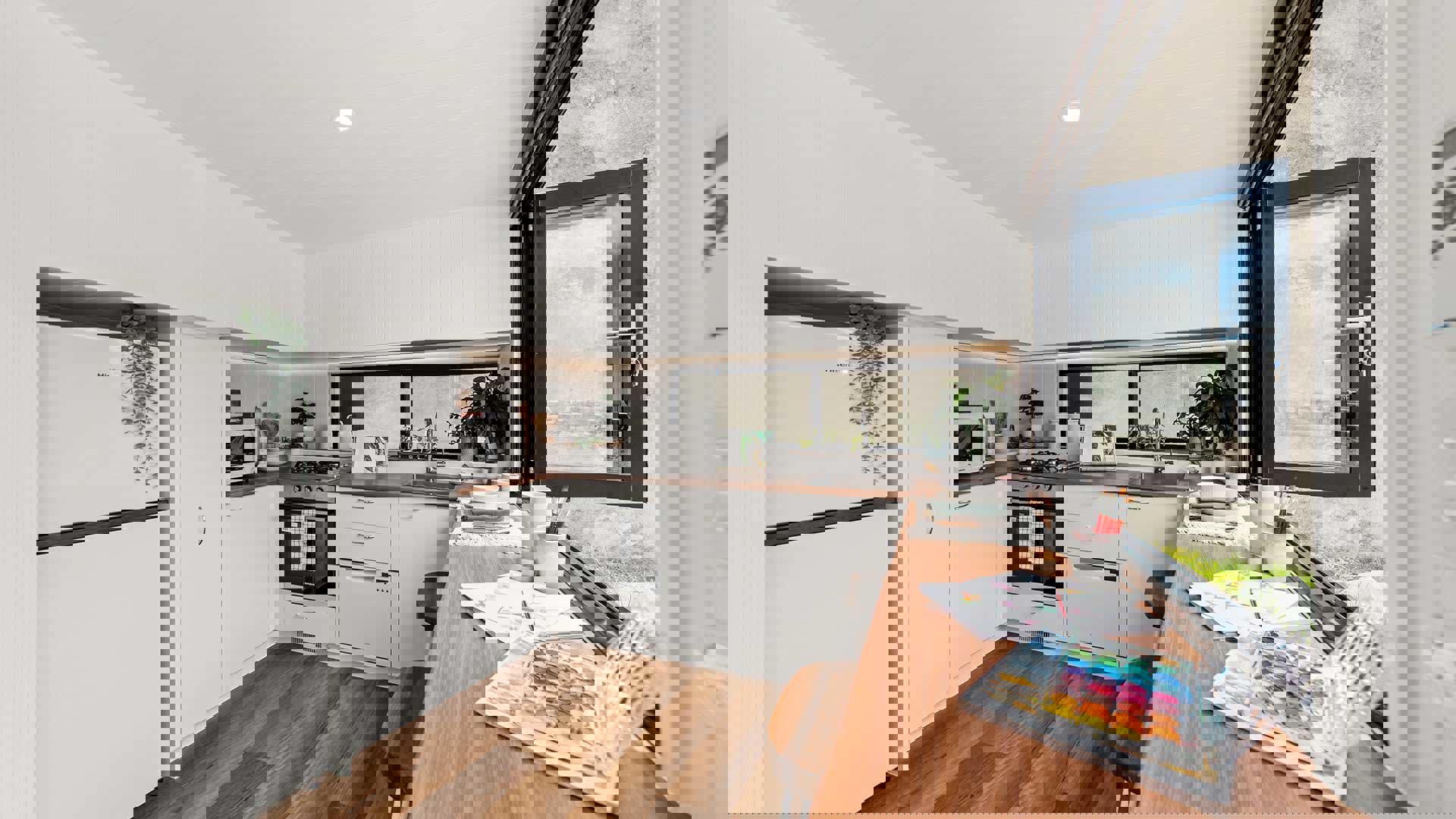

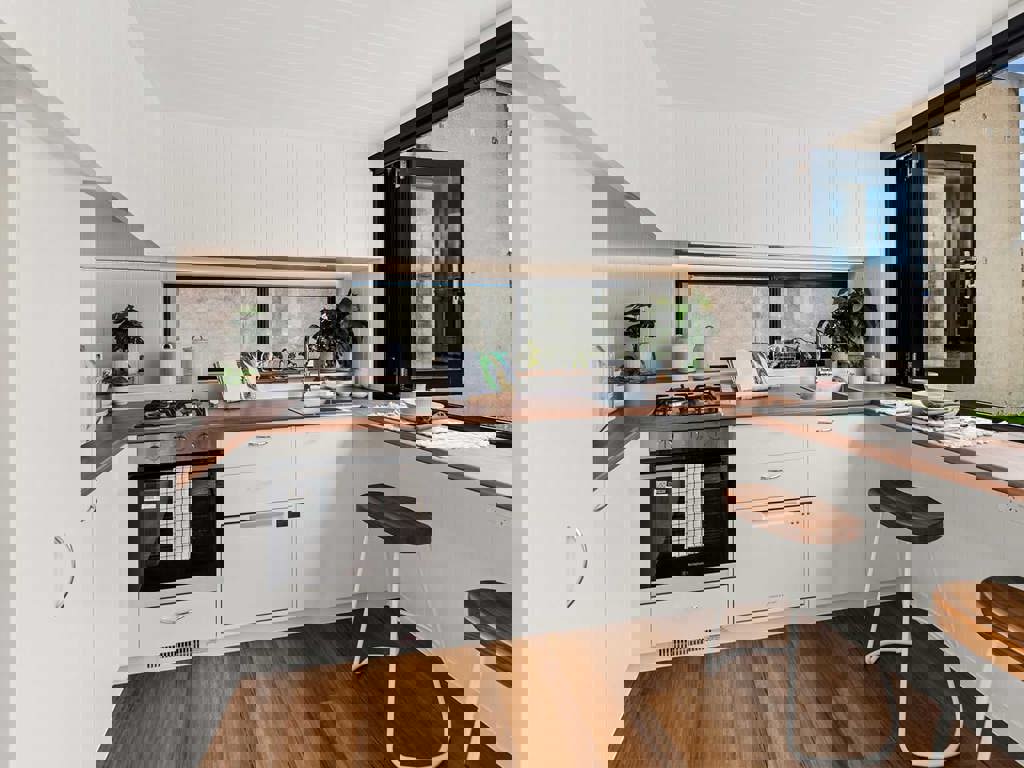

The U-shaped kitchen, featuring an optional L-shaped bench, transforms cooking into a home chef's delight.

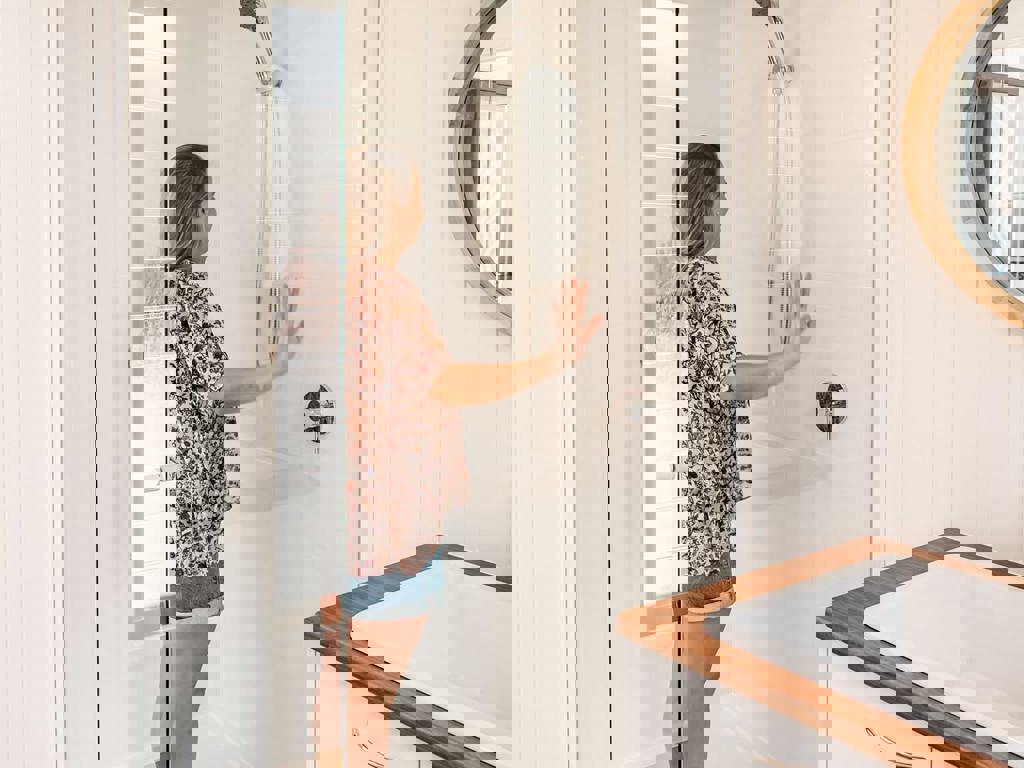

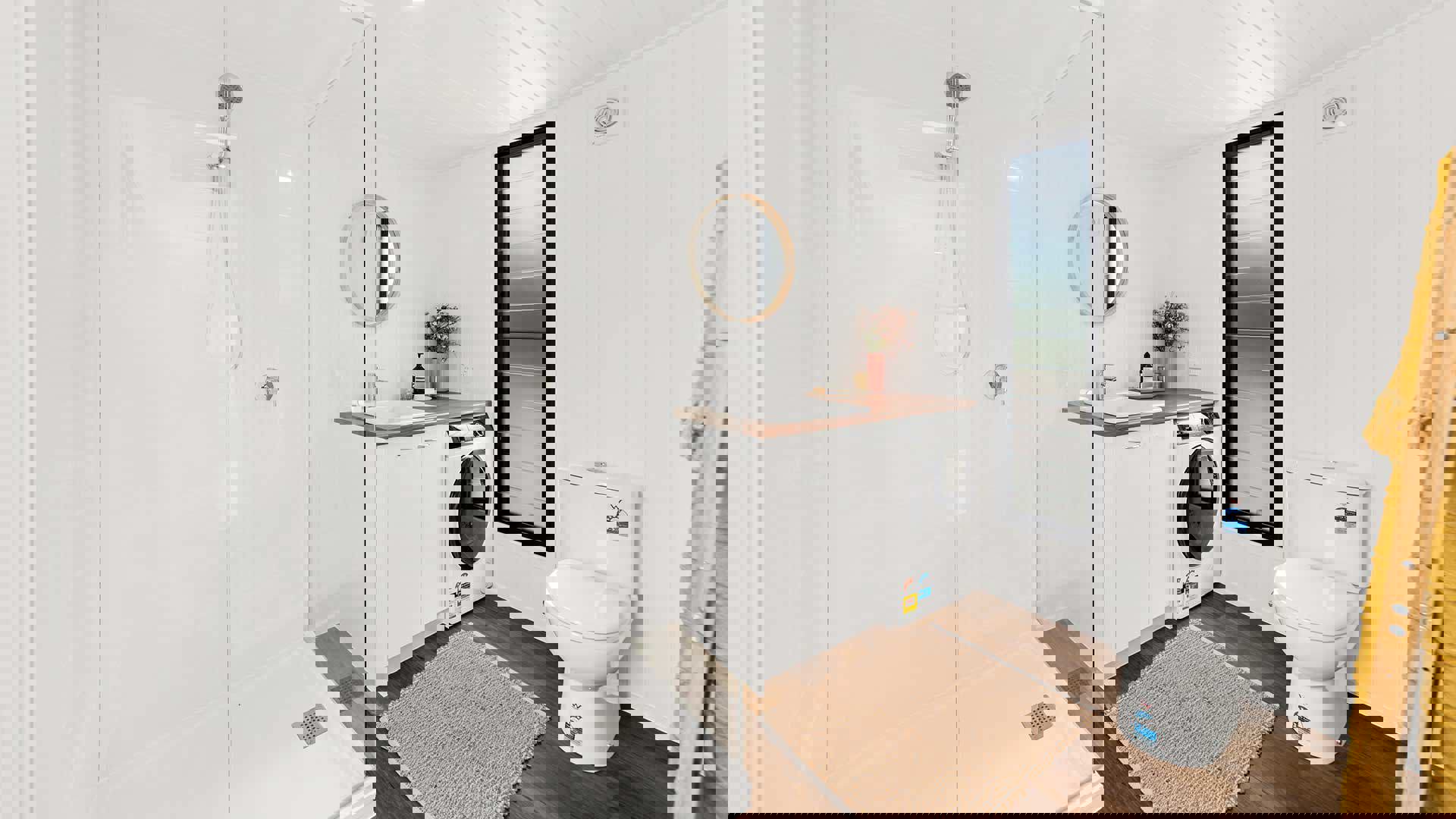

The family-size bathroom boasts a generous 1200mm x 900mm shower tray and two well-placed windows for abundant natural light, creating a bright and airy atmosphere.
Storage is abundant throughout, ensuring an organised and clutter-free living experience.
OPTION 1: FAMILIAR ELEGANCE
Mirroring the celebrated Hazel 8.4, Option 1 retains the same revolutionary standing landing between lofts, eliminating the need for crawling and discomfort. With expanded dimensions of 9 meters in length and 3 meters in width, this design maximises space and functionality. In addition to the lavish features, the Option 1 design introduces a Peninsula-shaped kitchen, a larger second loft and more space in the bathroom with additional storage space, enhancing the overall convenience and utility.
OPTION 2: INNOVATIVELY DESIGNED

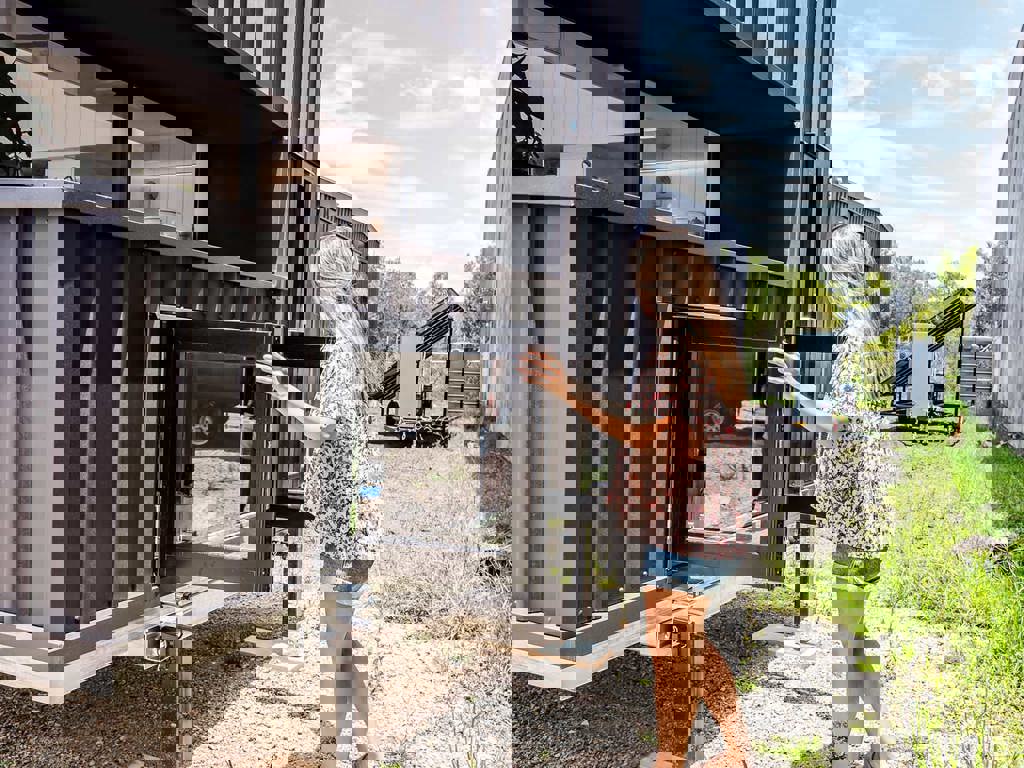

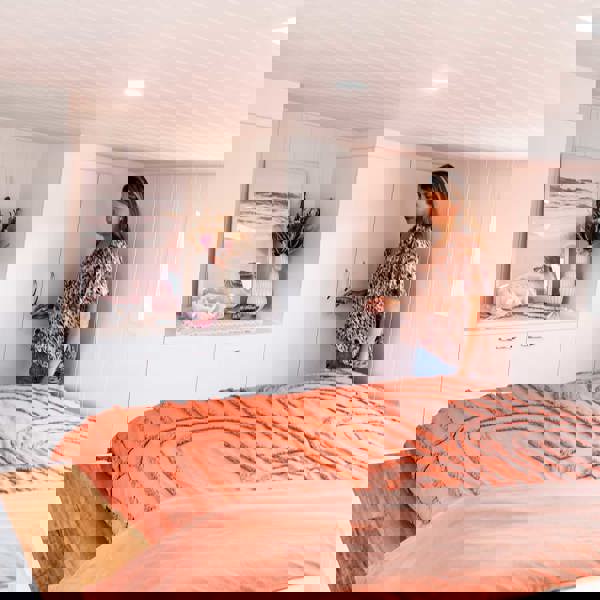

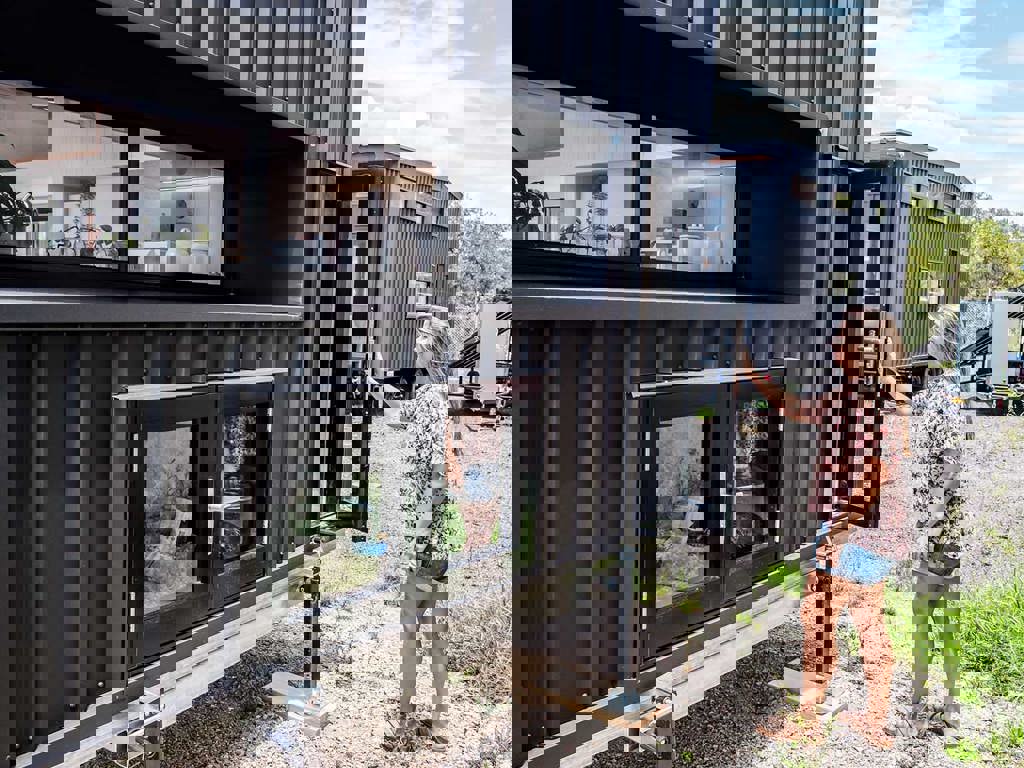

For those seeking an alternative, choose the layout inspired by Shaye's design, where the standing landing elegantly wraps around the bed. This configuration offers an abundance of storage space in the loft and additional external storage options. The bathroom remains spacious, featuring the same generous 1200mm x 900mm shower tray and strategically placed windows for optimal natural light.
Leap into a world of unparalleled tiny living with the Hazel 9x3, where standing room is a game-changer, and every corner is meticulously designed to make you feel at home.
*The Hazel 9x3 is not classified as a caravan due to its 3-meter width and weight exceeding 4.5 tons. Consequently, it cannot be towed on the road but is easily transported on the back of a truck, and insurance options are limited.
360° Virtual Tour
Features and Inclusions
Trailer
- Lower Profile Flatbed Trailer For Extra Loft space
- Tri Axle Trailer Rated to 6TON
- Hand Brake System
- 4x Stabilizing Legs
- Trailer Fully Painted for extra protection
Living Room
-
Windows and Doors
- Triple Stacker Door 2100H X 2670W + Fly Screen
- Fixed Glass Window 640H X 2200W
- Fixed Glass Window 400H X 2200W
-
Cabinetry

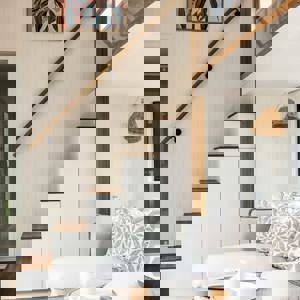

- Built-in Storage Stairs (as per design)
-
Appliances
- 2.5 kw Air conditioning
-
Electrical
- 1x Led Ceiling Downlight
- 1x Double Power Point

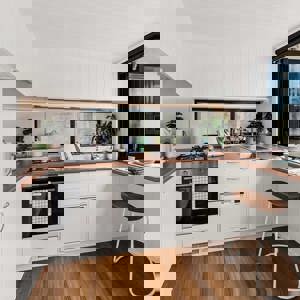

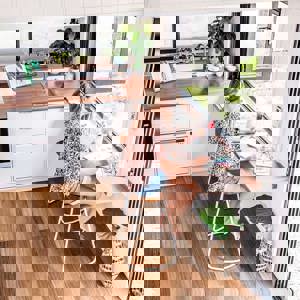

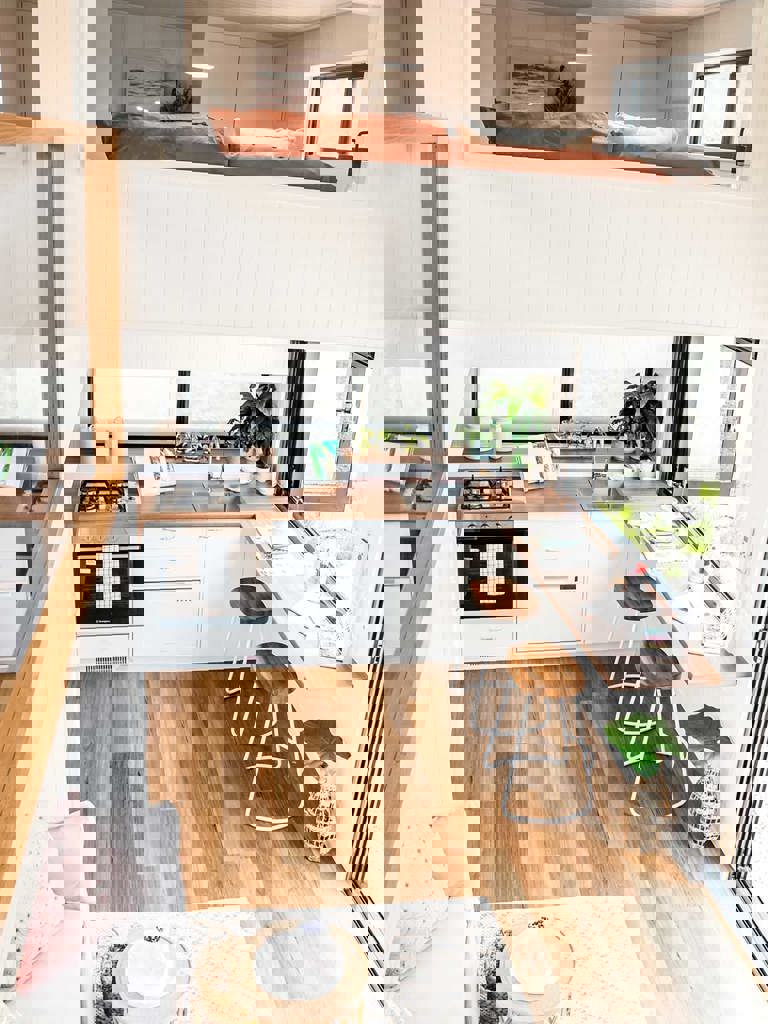

Kitchen
-
Features
- Peninsula-Shaped Kitchen

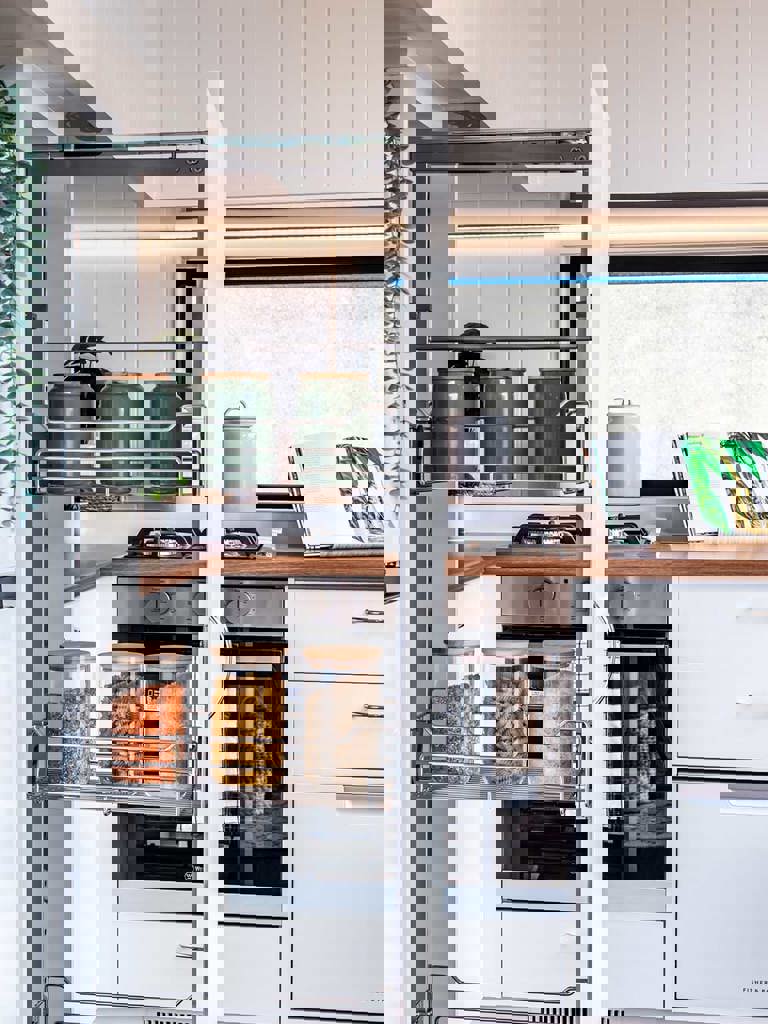

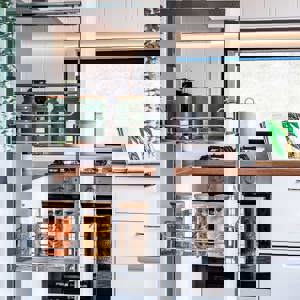

- Pull Out Pantry
-
Windows and Doors
- Sliding Window 1200H X 1800W + Fly Screen
- Sliding Window 700H X 2100W + Fly Screen
-
Appliances

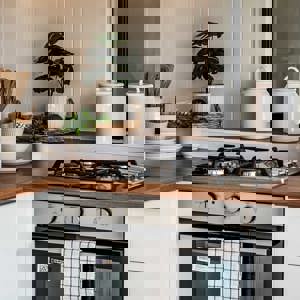

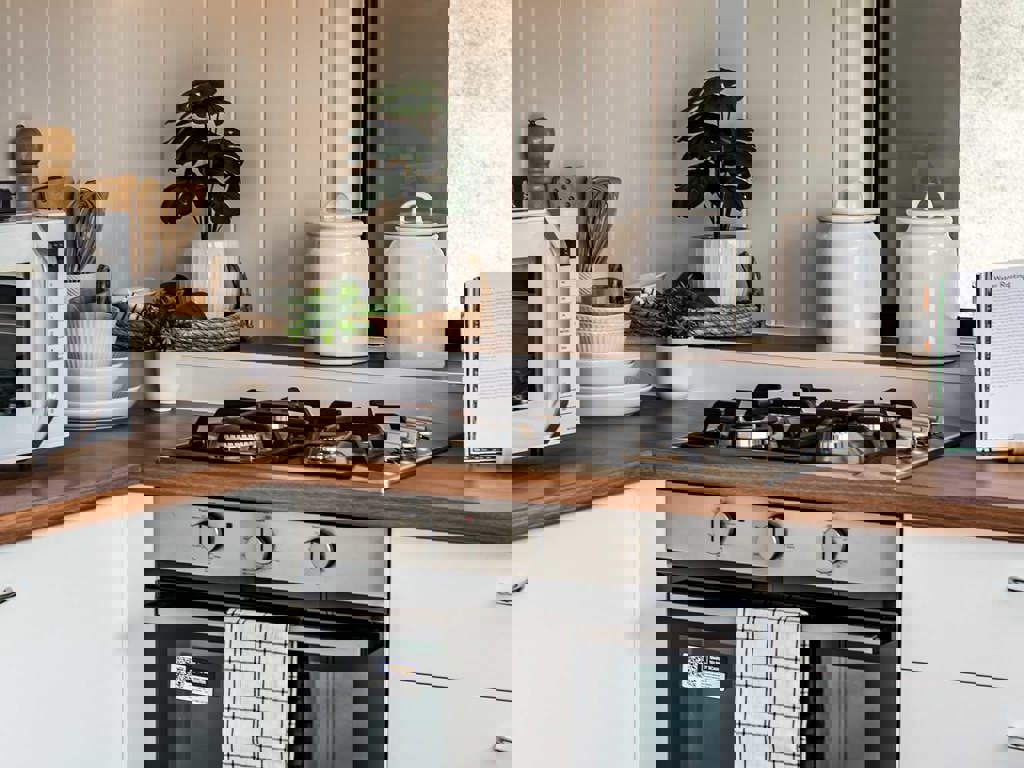

- Stainless Steel Gas Cooktop 4 Burners
- Stainless Steel Electric Built-in Oven
- Recirculating Slide Out Built-in Rangehood
-
Fittings
- Standard Chrome or Black Kitchen Tap

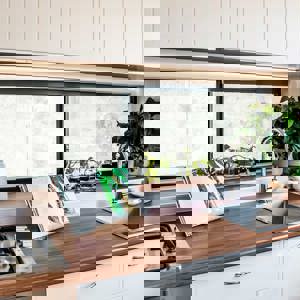

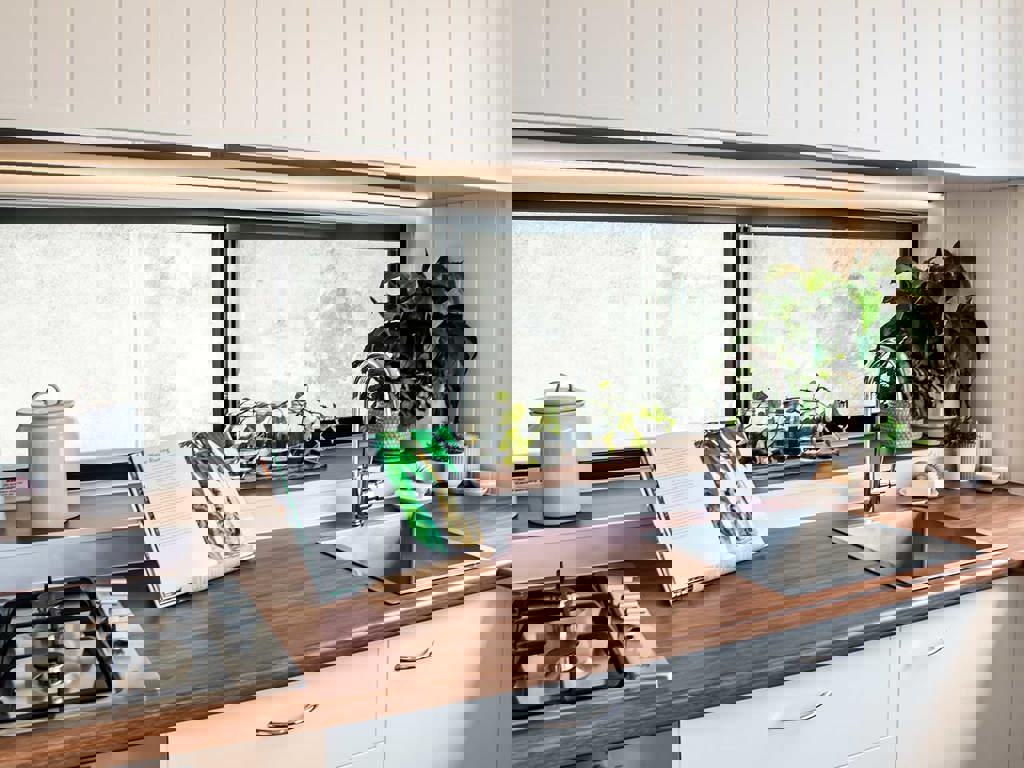

- Standard Chrome Stainless Steel or Charcoal Sink
-
Electrical
- 1x Led Ceiling Downlight
- 1x Double Power Point with USB
- 5x Double Power Points
- Smoke Alarm
-
Cabinetry
- Kitchen Cabinets + Overheads (as per design)
- Soft Touch Close to Doors and Drawers where suitable

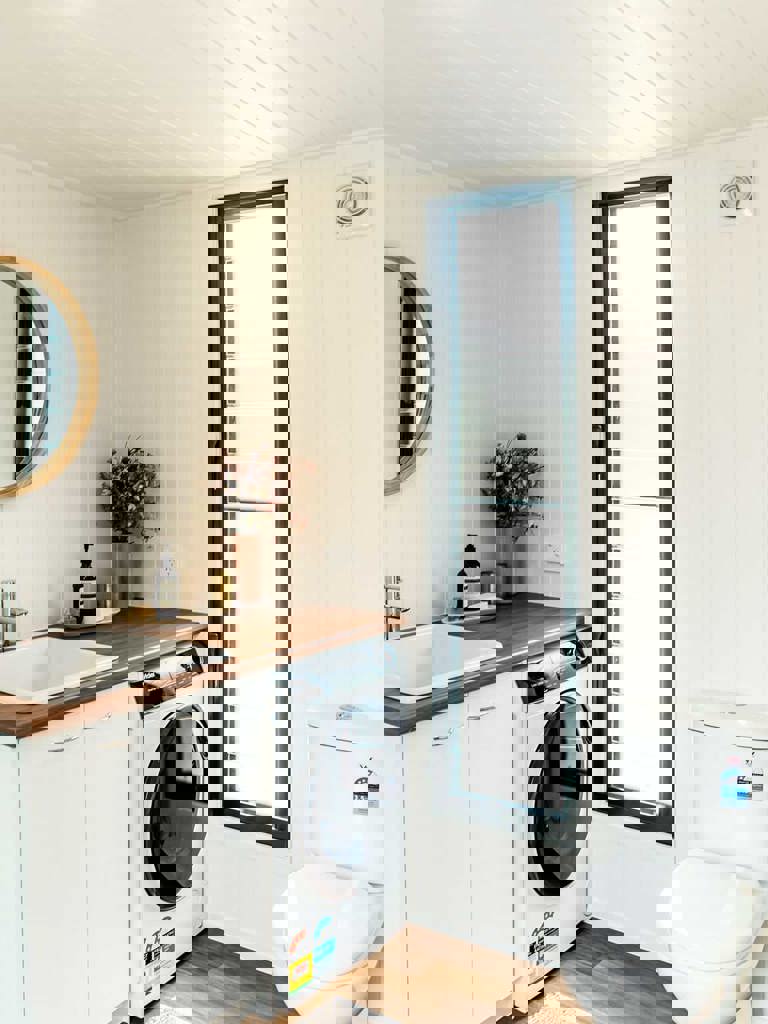

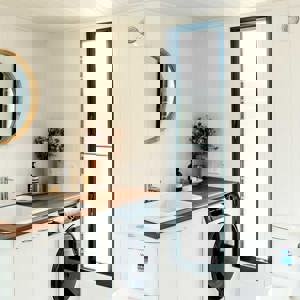

Bathroom
-
Windows and Doors
- 2x Double Hung Window 1760H X 600W + Fly Screen
- Cavity Sliding Door 2040H x 720W with Privacy Lock
-
Fittings
- Standard Chrome Shower Head
- Standard Chrome Shower Mixer
- Standard Chrome Basin Mixer
- Washing Machine Taps Ready
-
Cabinetry
- Bathroom Vanity Cabinets + Linen Cabinet (as per design)
- Soft Touch Close to Doors and Drawers where suitable
-
Electrical
- 1x Led Ceiling Downlight
- 2x Double Power Points
- Extractor Fan
-

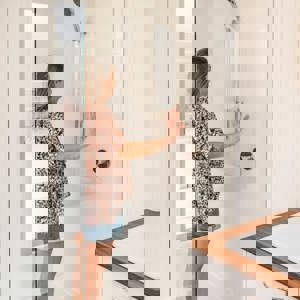

Toilet / Shower
- Standard Composting Toilet
- Shower 1200 X 900MM
- Toughened Glass Semi Frameless Shower Screen

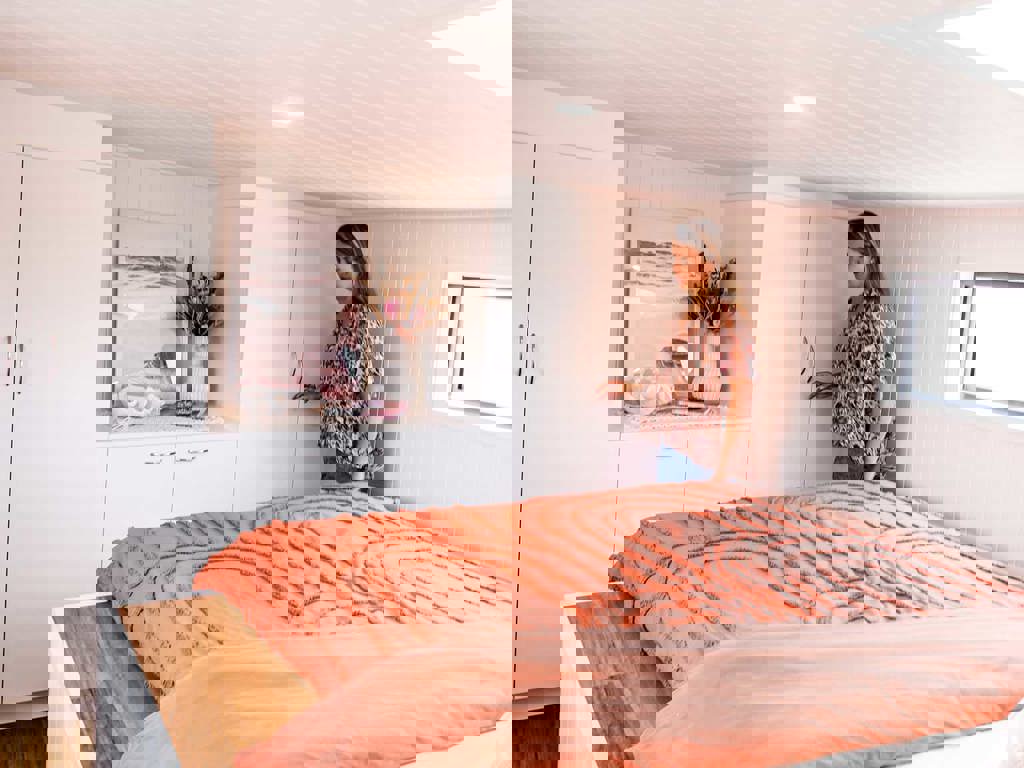

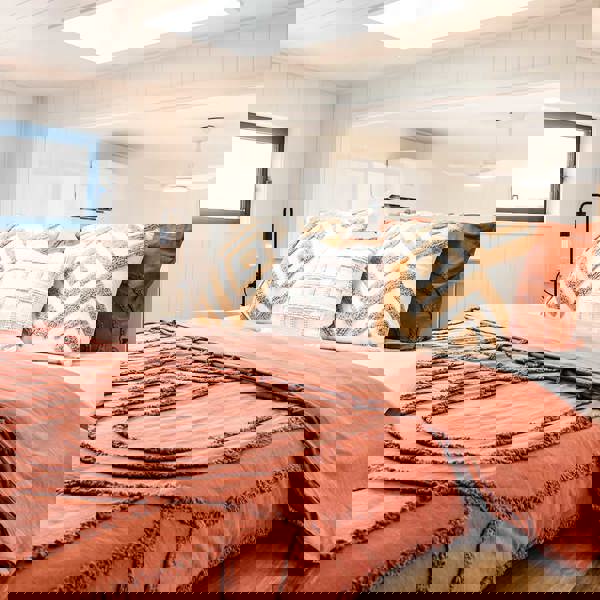

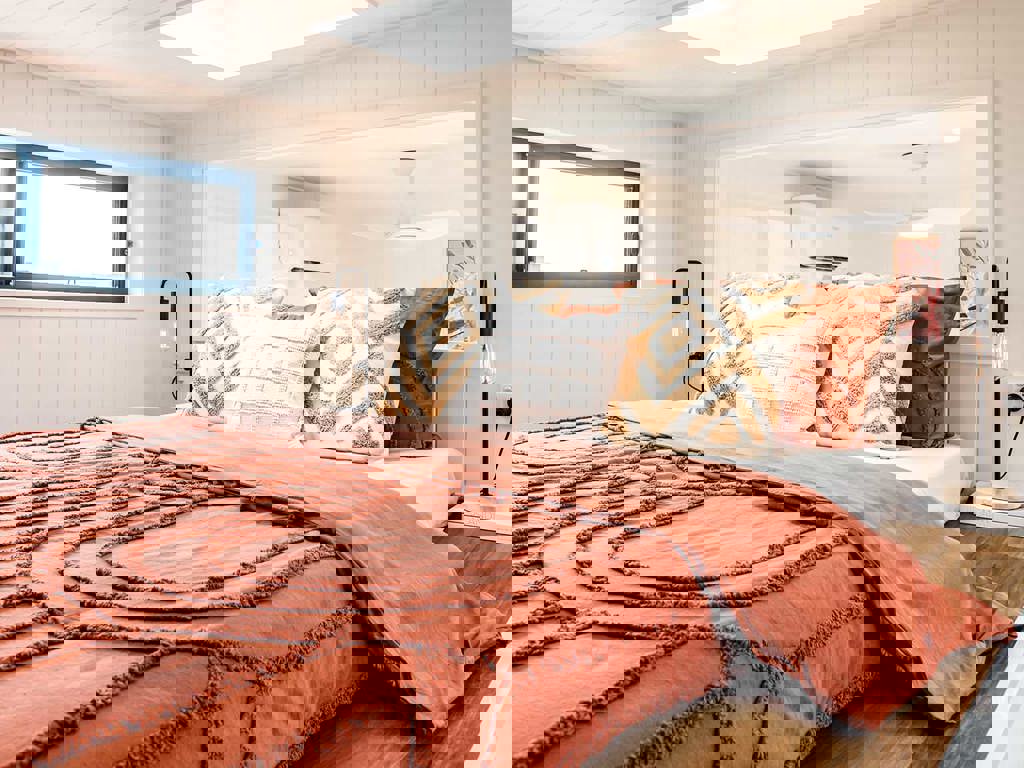

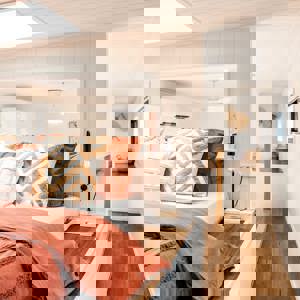

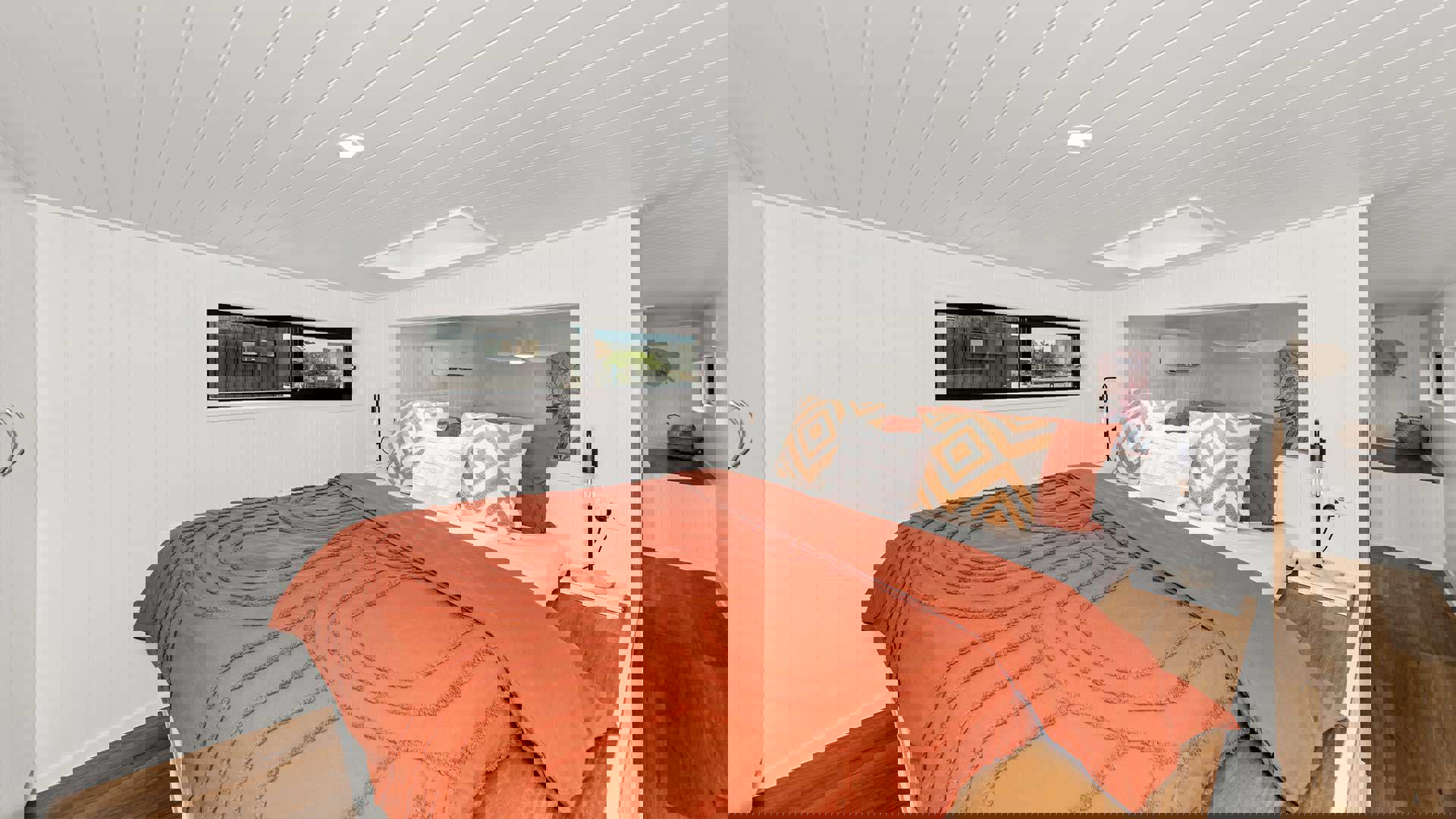

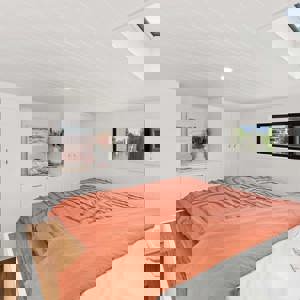

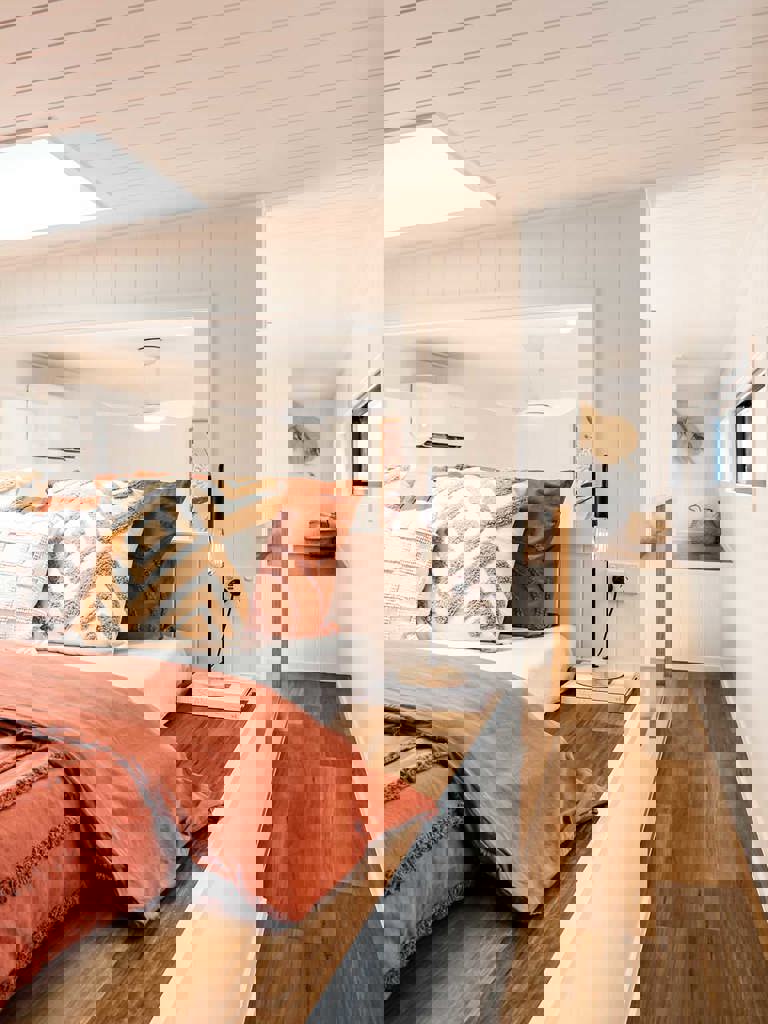

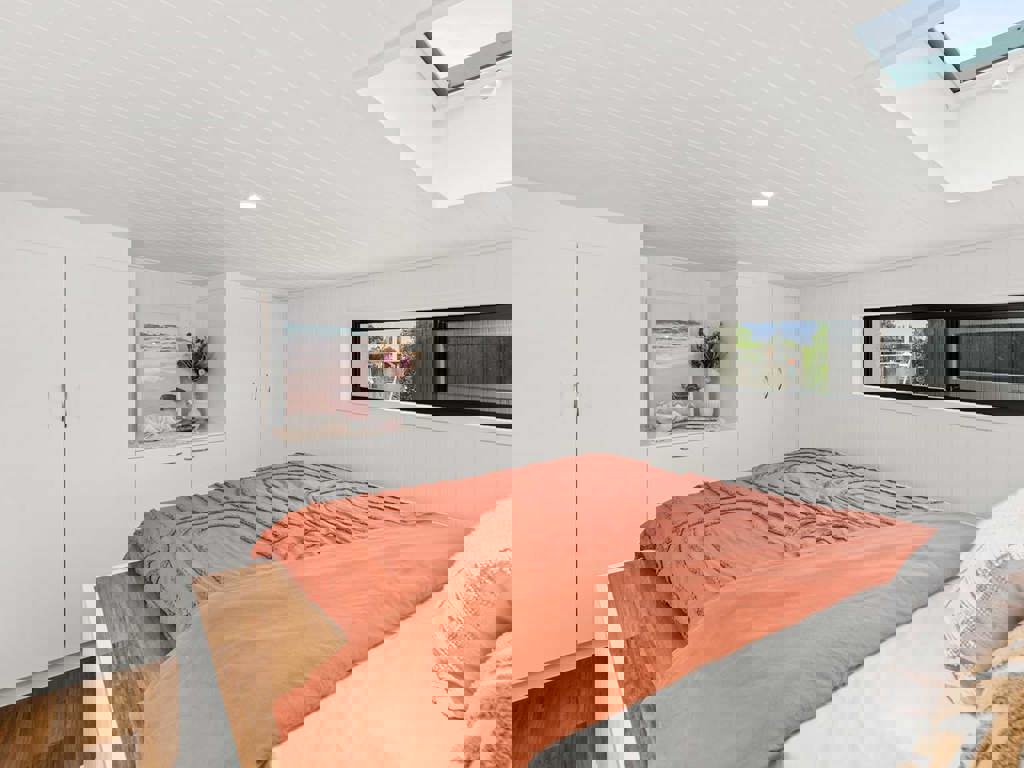

Main Loft
-
Features
- Standing Landing
- Suitable for Queen Size Bed
-
Windows and Doors
- 2x Sliding Window 400H X 1500W + Fly Screen
-
Electrical
- 1x Led Ceiling Downlight
- 1x Double Power Point with USB
- 1x 2 Way Light Switch
-
Cabinetry

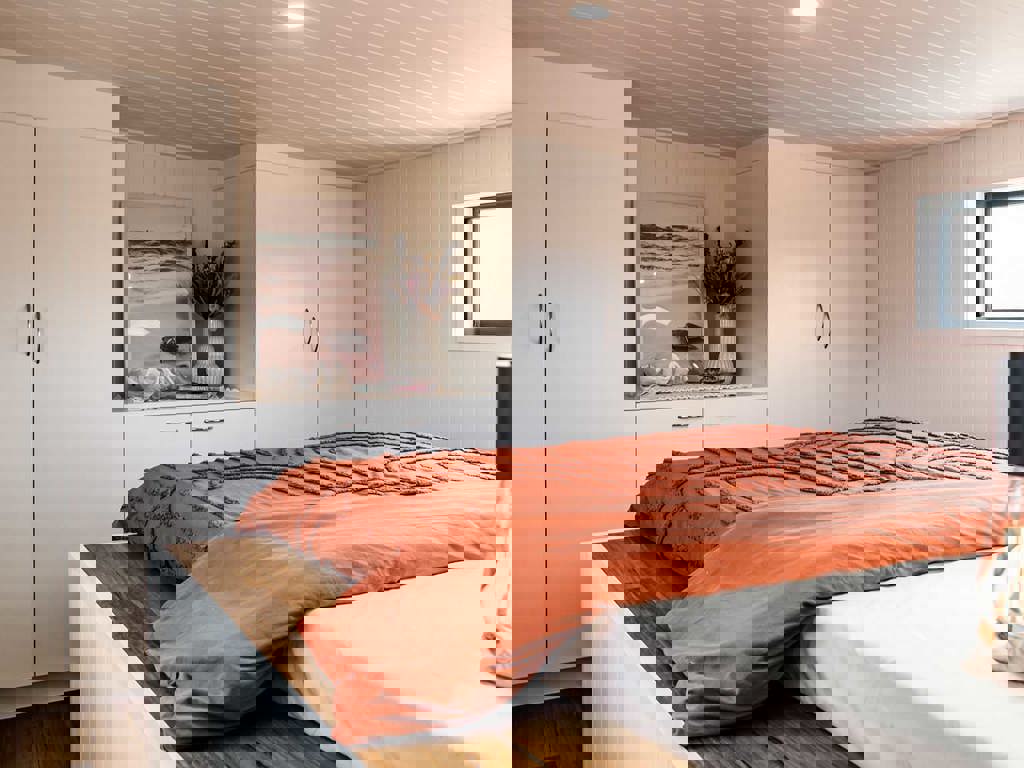

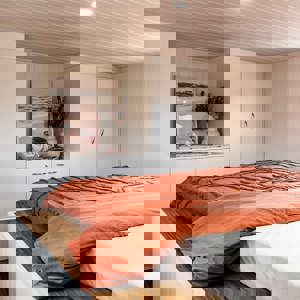

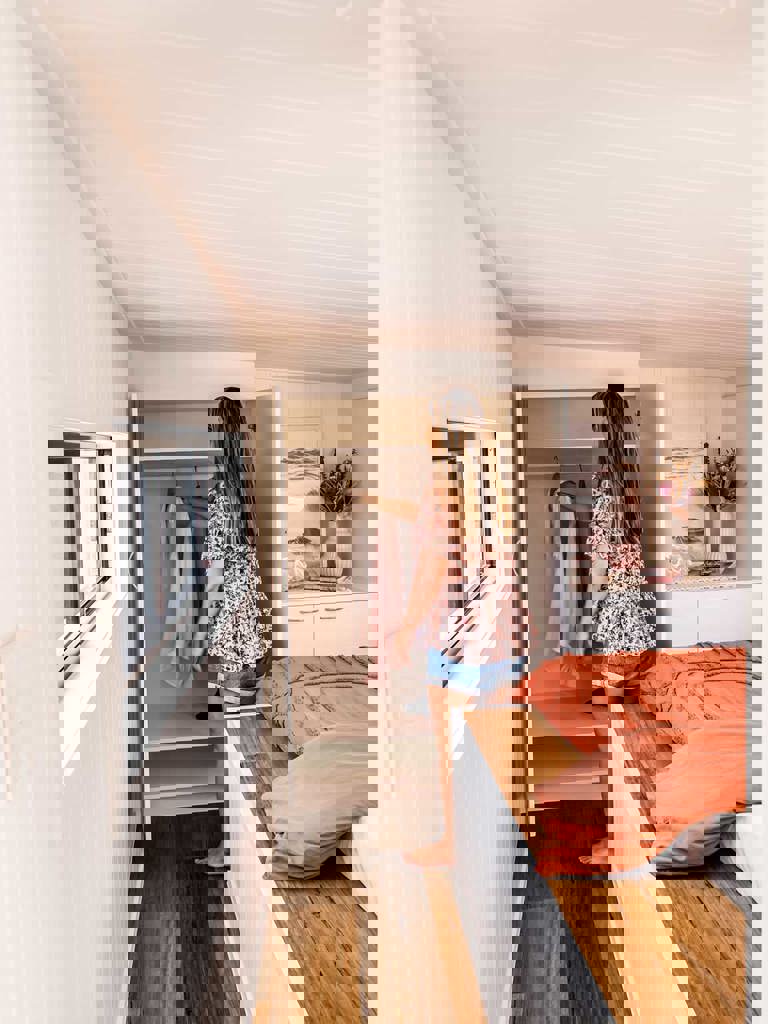

- Storage Robes (as per design)

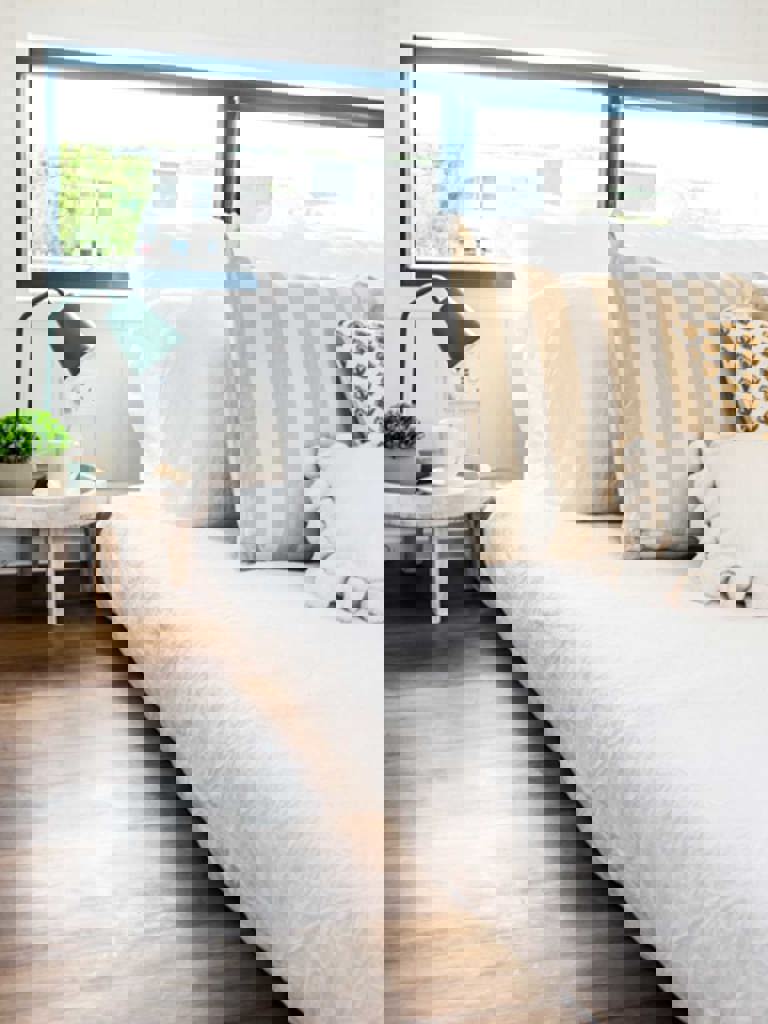

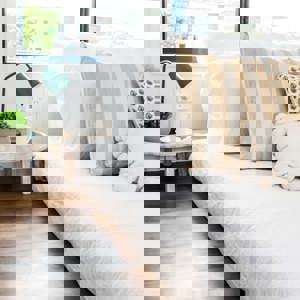

Second Loft
-
Features
- Suitable for Double or Single Size Bed
-
Windows and Doors
- 2x Sliding Window 400H X 1500W + Fly Screen
-
Electrical
- 1x Led Ceiling Downlight
- 1x Double Power Point
Internal / Structure
- Waterproof Engineered Vinyl Floor Boards
- Insulation Batts Earthwool R 2.5
- Insulated Subfloor R 1.4
- Engineered Steel Frame
- Fully Painted - 1x colour option
Exterior
- Safety Switch Board
- 2x External Double Power Point
- Power Inlet 20 AMP with 20 AMP lead extension
- Colorbond Steel Roof and WallL Cladding
- External LED Porch Light
- Water Inlet
- Dual Gas Regulator
- Gas Hot Water System
- Gas Aluminium Storage Box
Design Modifications
- 2nd Loft Storage Robes
UPGRADES and Packages
-
Heating and Cooling
- Air Conditioning 2.5Kw (heating and cooling)
- Ceiling Fan with Light and Remote Control
-
Cabinetry
- Kitchen Recessed LED Strip Light
- Extra Stair Balustrade
- 2nd Loft Storage Robes
-
Kitchen / Appliances
- 205L Fridge and Freezer White or Stainless Steel
- 4 Burner Electric Cooktop
- Stainless Steel Gas Built-in Oven
- External Ducting Kit (Rangehood)
- Built-in Single Dishwasher Drawer White or Stainless Steel
- 7.5KG Front Loading Washing Machine
-
Bathroom
- Two Doors Shaving Cabinet with Mirror
-
External / Internal
- External Cedar Cladding Feature Wall
- Ply Wood Shadow Gap Feature Ceiling
- Under Loft (Kitchen) Cedar Feature Ceiling
- Bathroom Cedar Feature Ceiling
- Full Cedar Feature Ceiling
- Mapei Sealant and Eco Friendly Paint
- Extra Stair Balustrade
-
Deck Trailers
- 9.0m Composite Deck Trailer with Pergola
- 9.0m Composite Deck Trailer with Pod and Pergola
-
Skylight and Windows
- Velux Manual Skylight (VCM) + Blinds + Screens (665mm x 970mm)
- Velux Solar Power Skylight (VCS) + Blinds + Screens (665mm x 970mm)
- Velux Manual Skylight (VCM) + Blinds + Screens (1275mm x 1275mm)
- Velux Solar Skylight (VCS) + Blinds + Screens (1275mm x 1275mm)
- Bi-Fold Servery Window Breakfast Bar 1200H X 1800W
- Gas Strut Servery Window Breakfast Bar 1200H X 1800W
- Bi-Fold / Gas Strut Custom Fly Screen 1200H X 1800W
- 2x Louvre Full Size Window Bathroom 1760H X 600W + Fly Screen
- Internal Loft Shutter
- Blinds to all windows and doors
-
Water
- 2500L Slimline PVC Water Tank
- 5000L Slimline PVC Water Tank
- 3000L Round PVC Water Tank
- 5000L Round PVC Water Tank
- Water Pump
- Ezgrey Greywater Diversion System
- Grease Trap
-
Composting Toilets
- 2x NL Alectura Heat Pad
- Nature Loo NL3
- Cinderella Incineration Toilet - Electric
| Solar System Options | ||||||
|---|---|---|---|---|---|---|
| Specifications and Inclusions | Models | |||||
| ATH Systems | ATH Solar Trailers | |||||
| Medium BH-10kw | Heavy BH-15kw | Medium Trailer-10kw | Heavy Trailer-20kw | |||
| Application |
Medium Fridge LED Lights 240v Appliances TV/Computer Small AC System Gas Hot Water System Gas Appliances Dishwasher Washing Machine |
Medium/Large Fridge LED Lights 240v Appliances TV/Computer 2x Small AC Systems Gas Hot Water System Gas Appliances Dishwasher Washing Machine Electric Cooktop Electric Oven |
Medium Fridge LED Lights 240v Appliances TV/Computer Small AC System Gas Hot Water System Gas Appliances Dishwasher Washing Machine |
Medium/Large Fridge LED Lights 240v Appliances TV/Computer 2x Small AC Systems Gas Hot Water System Gas Appliances Dishwasher Washing Machine Electric Cooktop Electric Oven |
||
| Inverter Type | Victron Inverter Multiplus II | Victron Inverter Multiplus II | Victron Inverter Multiplus II | Victron Inverter Multiplus II | ||
| Solar Panel Qty | 6 | 8 | 8 | 8 | ||
| Solar Panel Size | 475w | 475w | 510w | 510w | ||
| Solar Capacity Watts | 2850 | 3800 | 4080 | 4080 | ||
| Battery Type | Lithium | Lithium | Lithium | Lithium | ||
| Battery Capacity kWh | 10 | 15 | 10 | 20 | ||
| Battery Expansion Capacity | N/A | 25 | 30 | 30 | ||
| Inverter Nominal kW | 5 | 5 | 5 | 8 | ||
| Inverter Peak W (10 sec) | 9000 | 9000 | 9000 | 15000 | ||
| Inverter Max AC Output A | 21.5 | 21.5 | 21.5 - (32 Amp Assisted) | 21.5 - (50 Amp Assisted) | ||
| 4G Remote Monitoring | 12 Months Free | 12 Months Free | 24 Months Free | 24 Months Free | ||
| Cabinet Height mm | 740 | 1440 | N/A | N/A | ||
| Auto-start Generator | Optional | Optional | Included | Included | ||
| Installation | Roof | Roof | Trailer | Trailer | ||
|
|
||||||
| Notes | ||||||
| 1) 5 years power equipment warranty. | ||||||
| 2) 10 years battery warranty. | ||||||
| 3) 25 years solar panels warranty. | ||||||
