Modern Tiny House Design: Coogee 10
Standard Turn-key Home from $148,900
SLEEPS 1-4
1x Queen size ground level bedroom
1x King size loft bedroom
1x Optional extra Sofa Bed
DIMENSIONS
10m Length
2.4m Width
4.3m Height
PRICE
$148,900
FEATURES
Separate ground level bedroom
Versatile loft space
Storage Stairs
Extra Storage loft
Double built-in robes
Large fridge space
Description

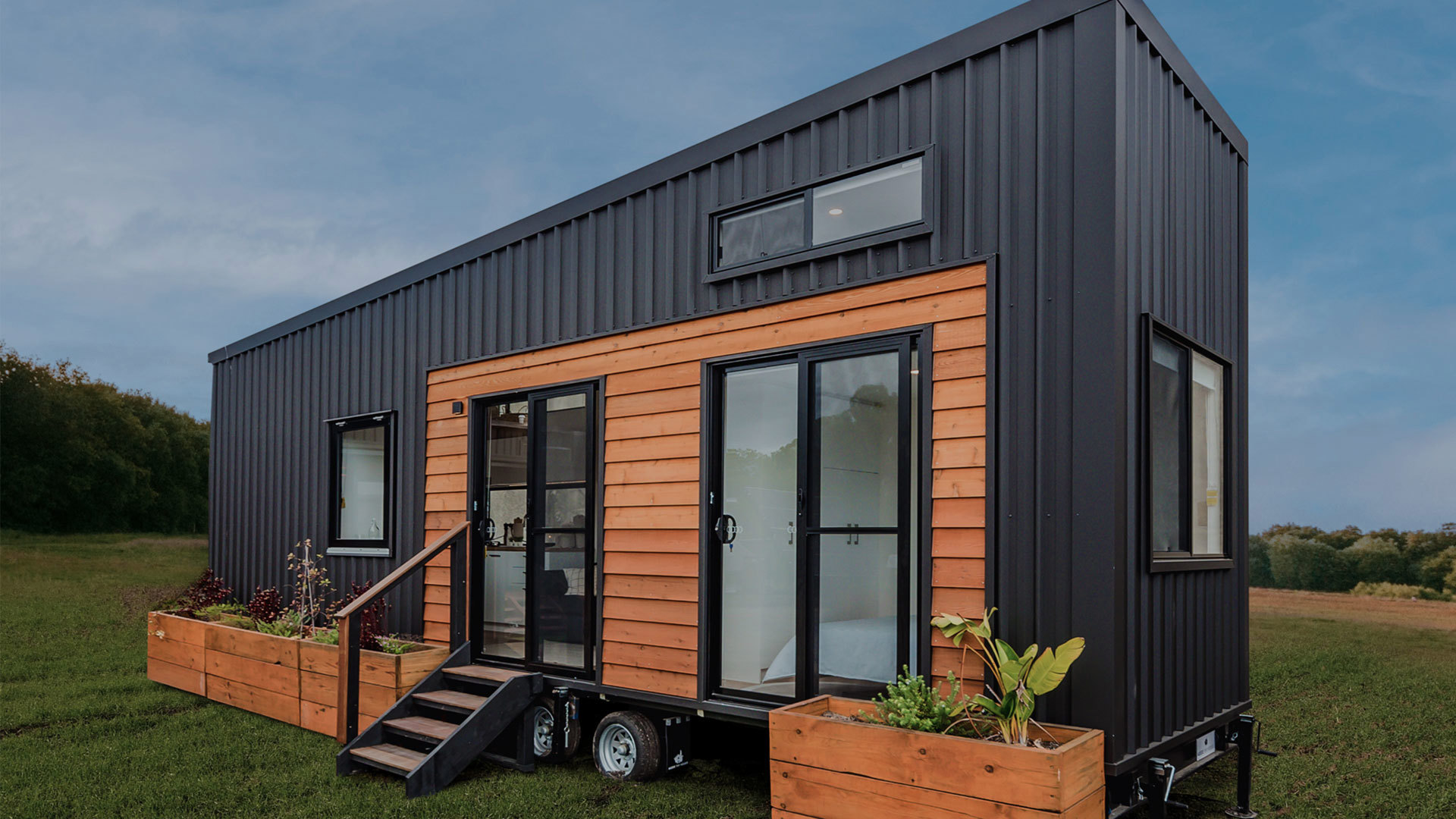

The Coogee 10 is now Aussie Tiny Houses longest model, built on a 10m trailer.
Complete with Ground Level Bedroom (2 spacious robes), Loft Bedroom, Kitchen, Living space and Bathroom (with storage loft). It is a well-appointed versatile “Home” to be proud of.

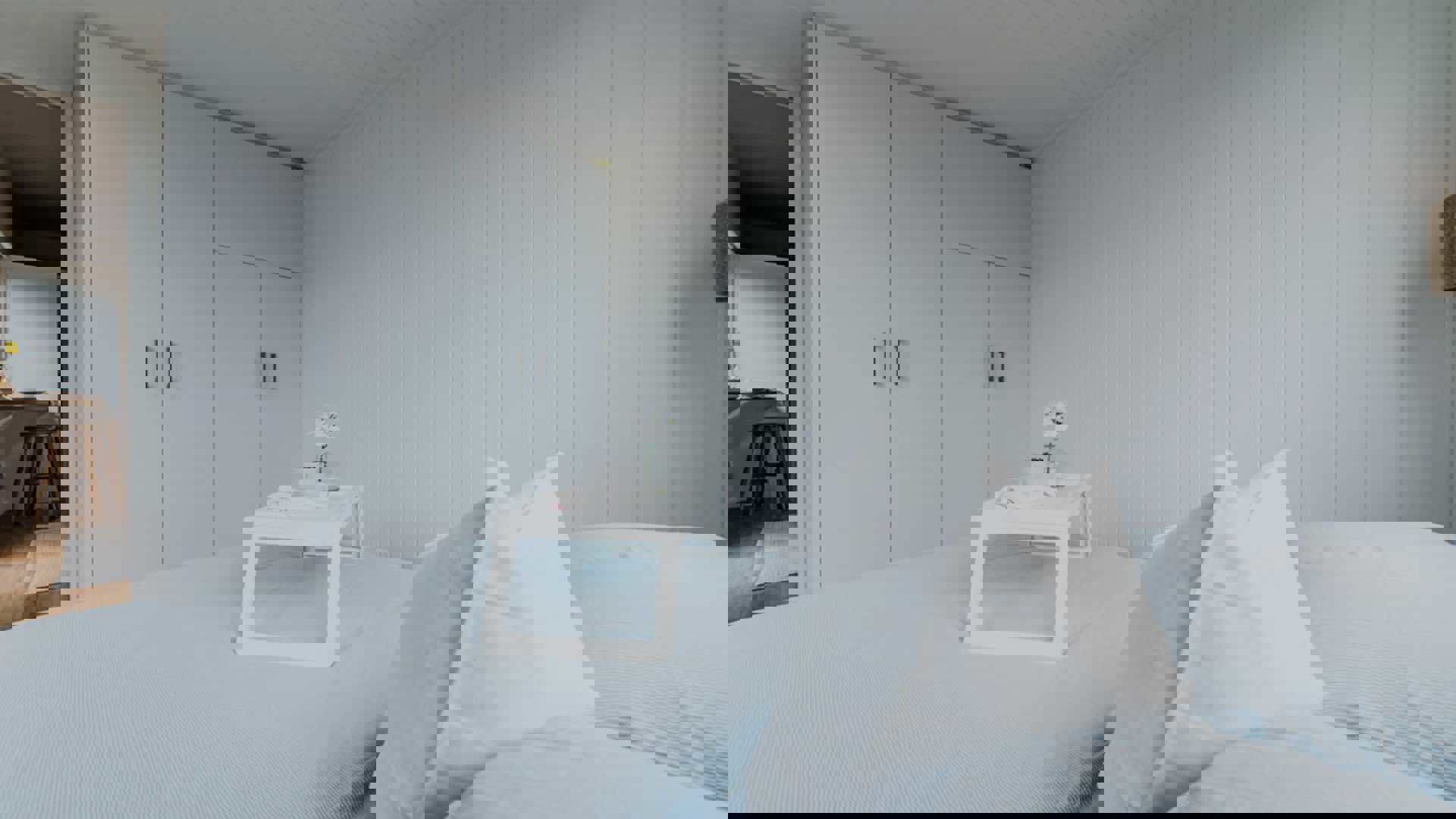

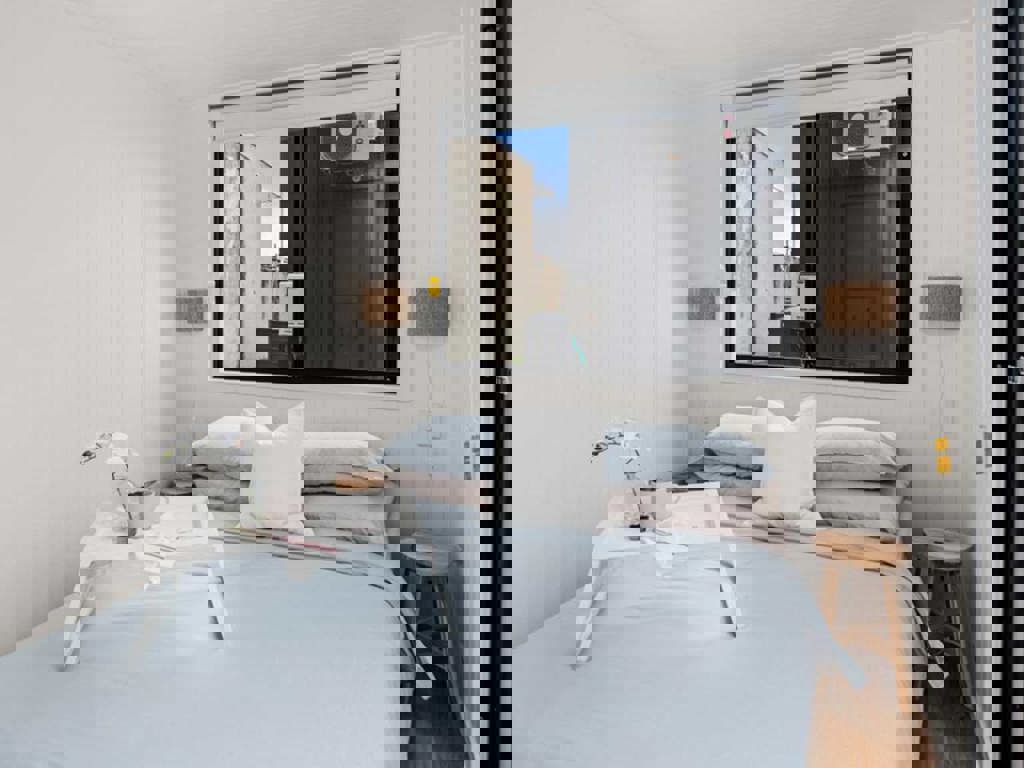

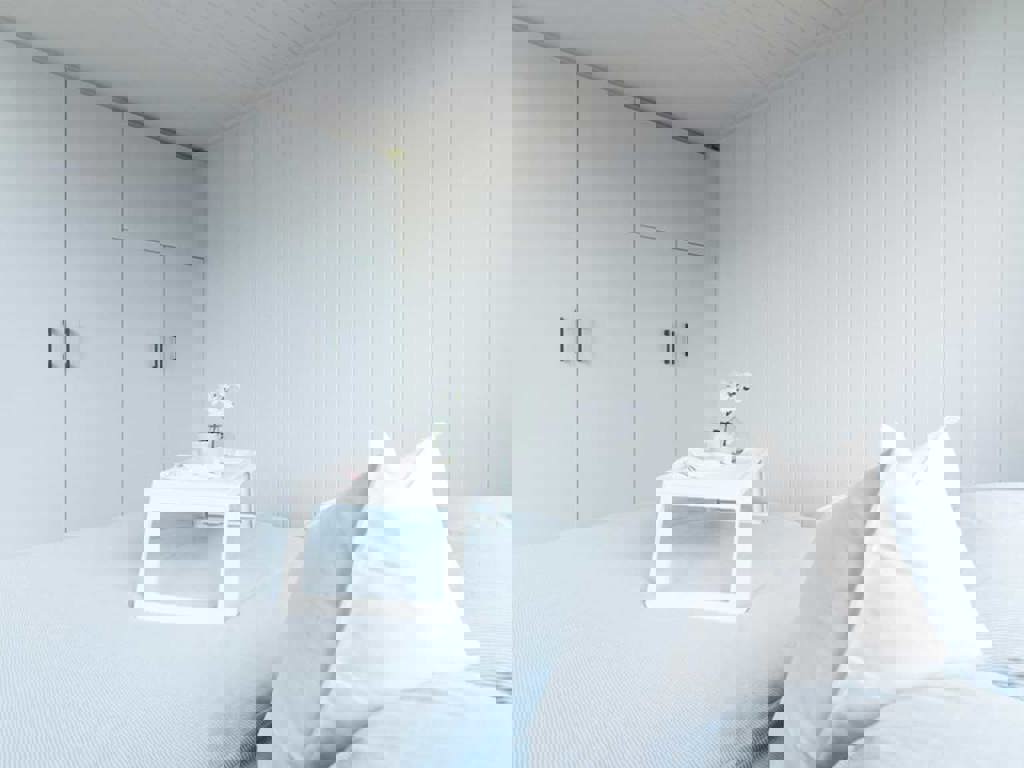

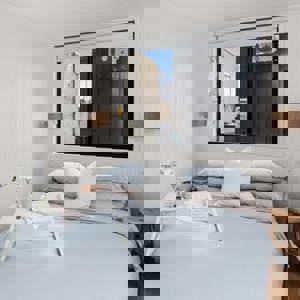

The Master Bedroom is private and easily accessible, located on the Ground Floor with optional exterior sliding door and 2 spacious built-in robes.

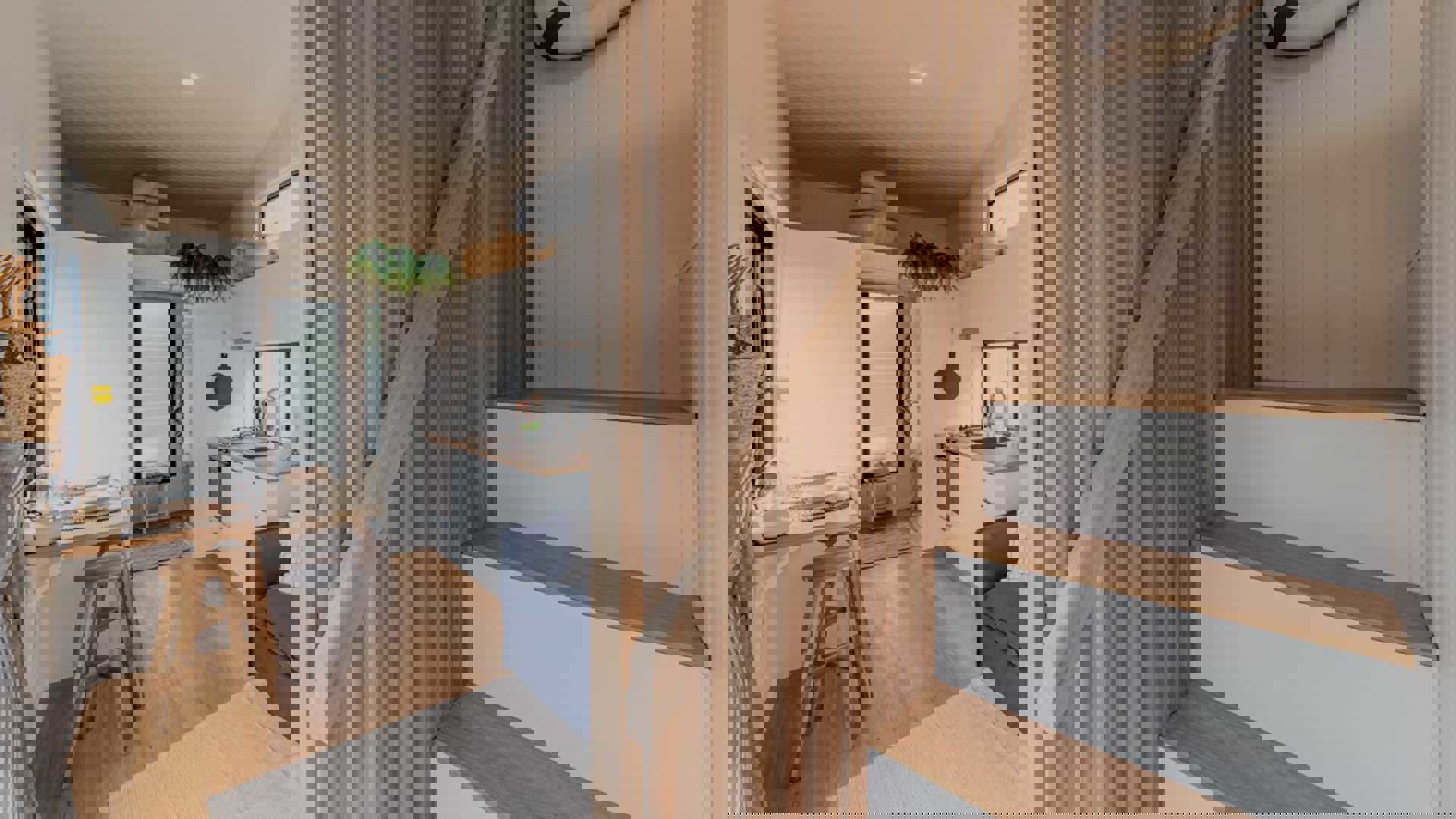

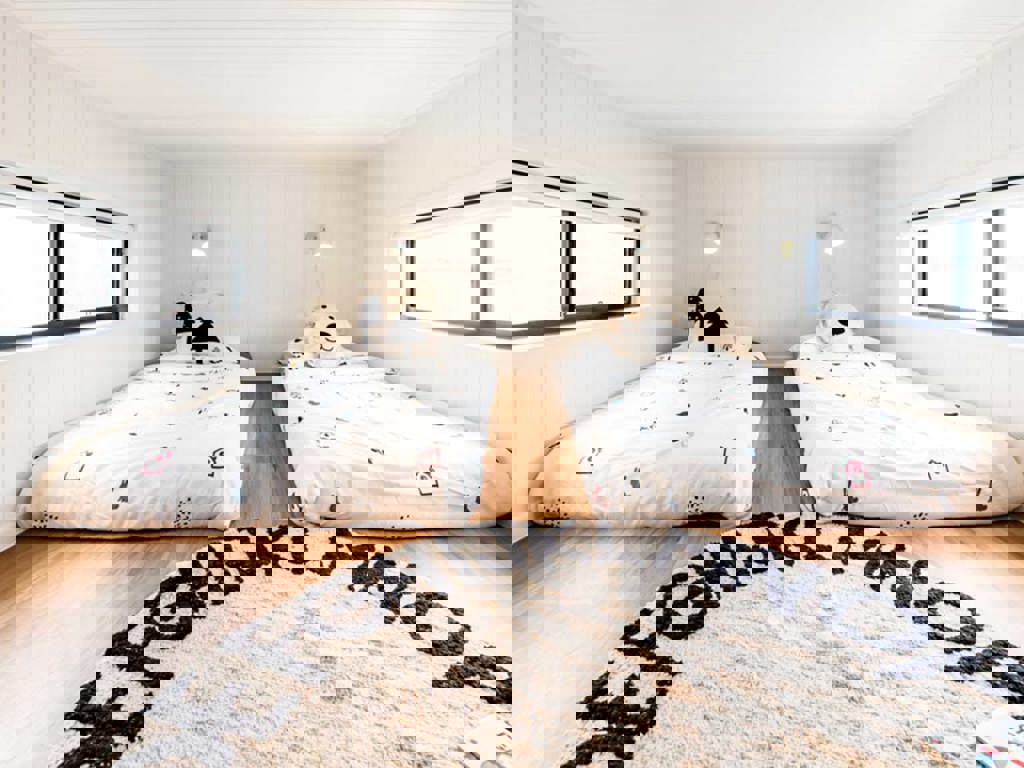

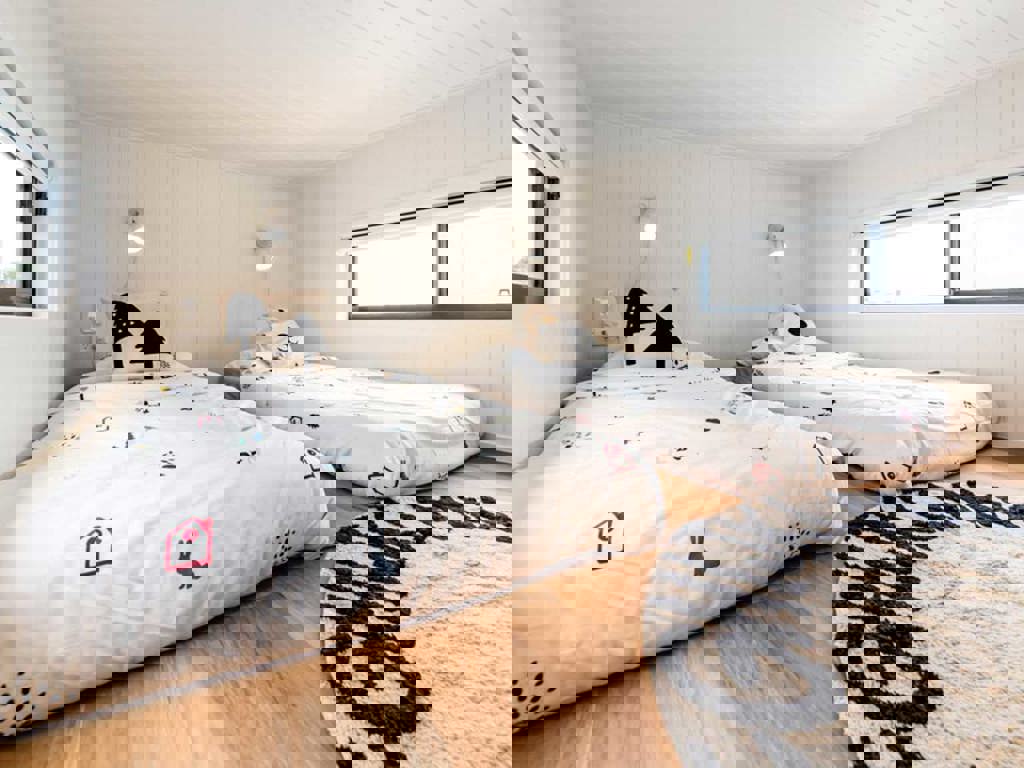

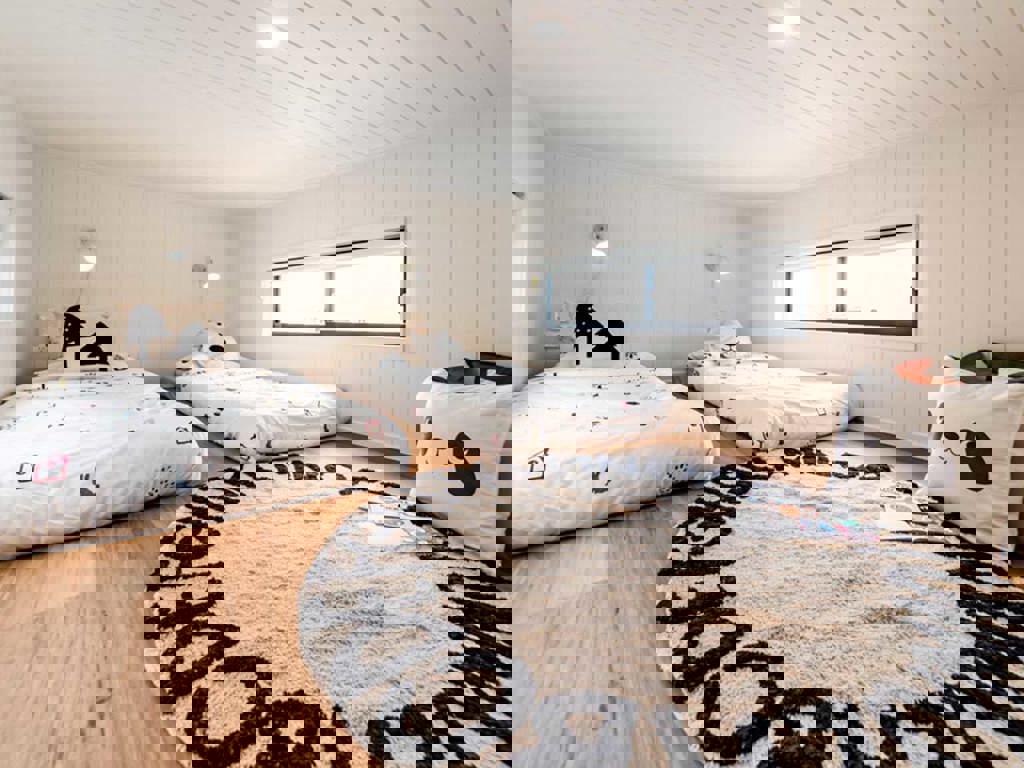

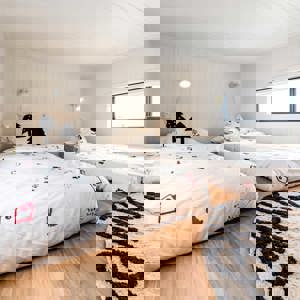

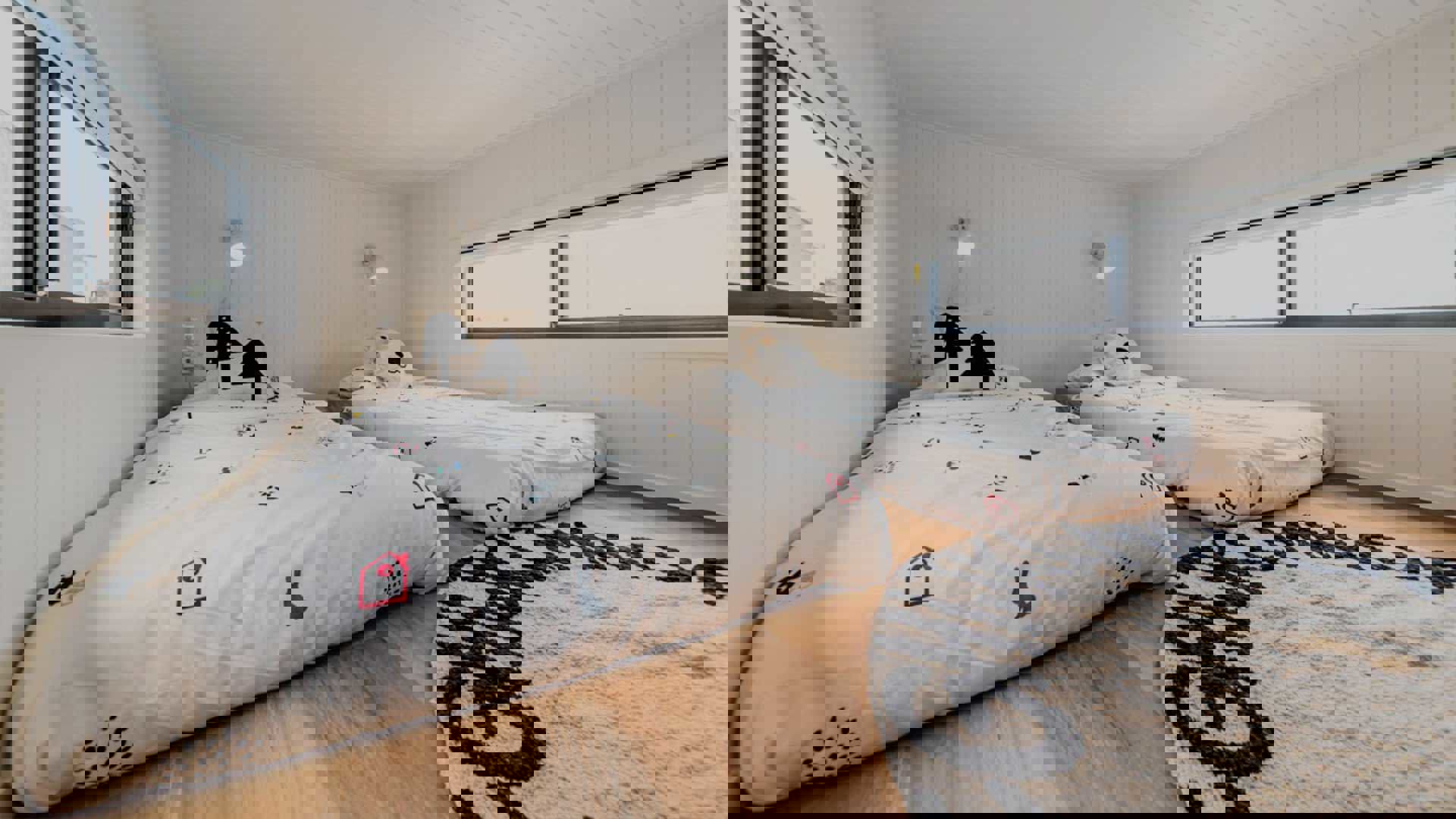

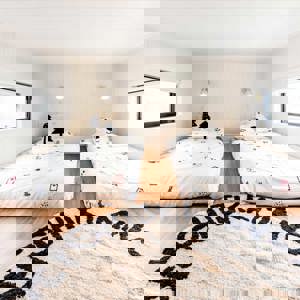

A storage stair provides access to a large loft space, ideal as a kid’s room, guest accommodation or even as an extra living space.

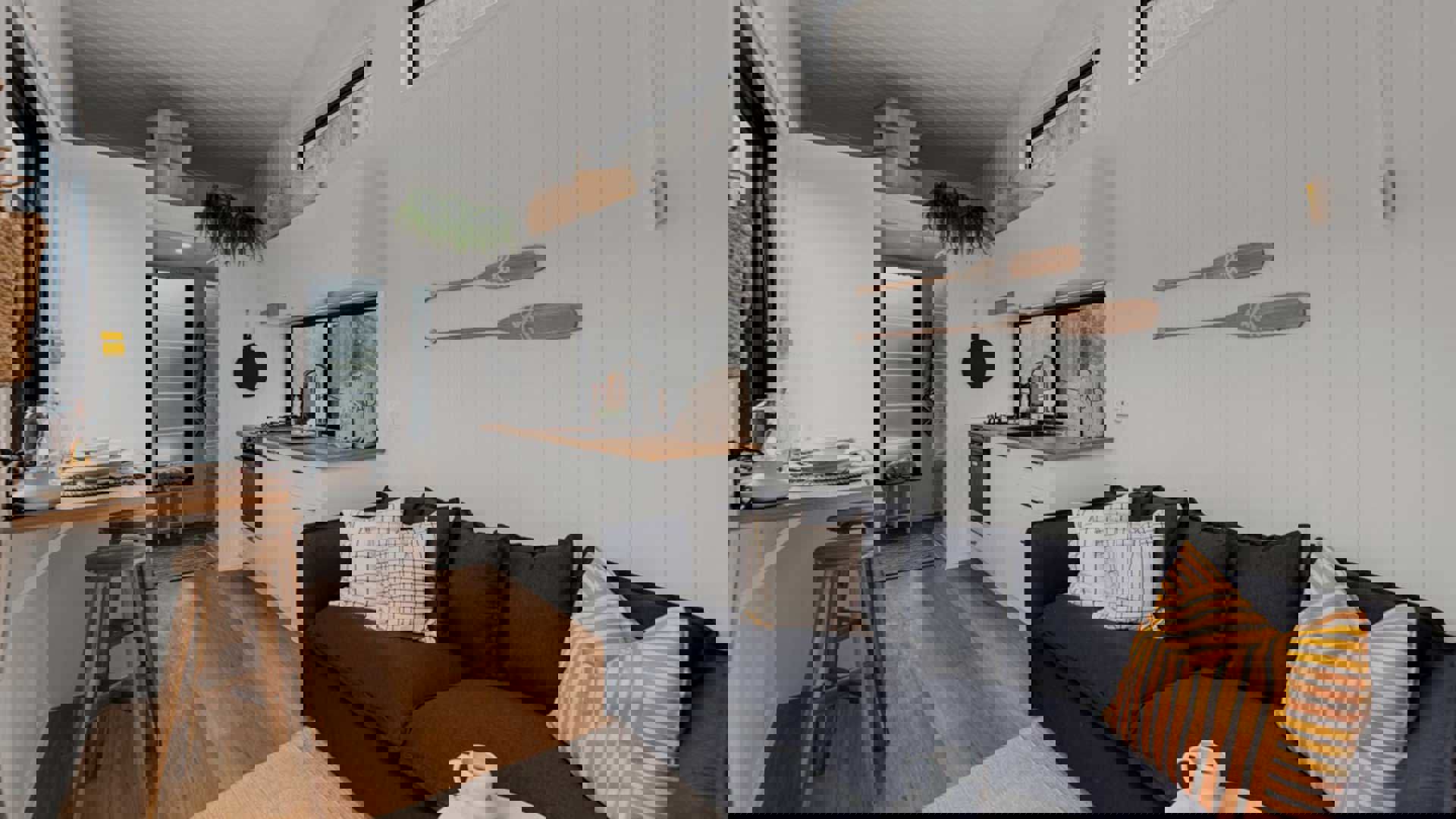

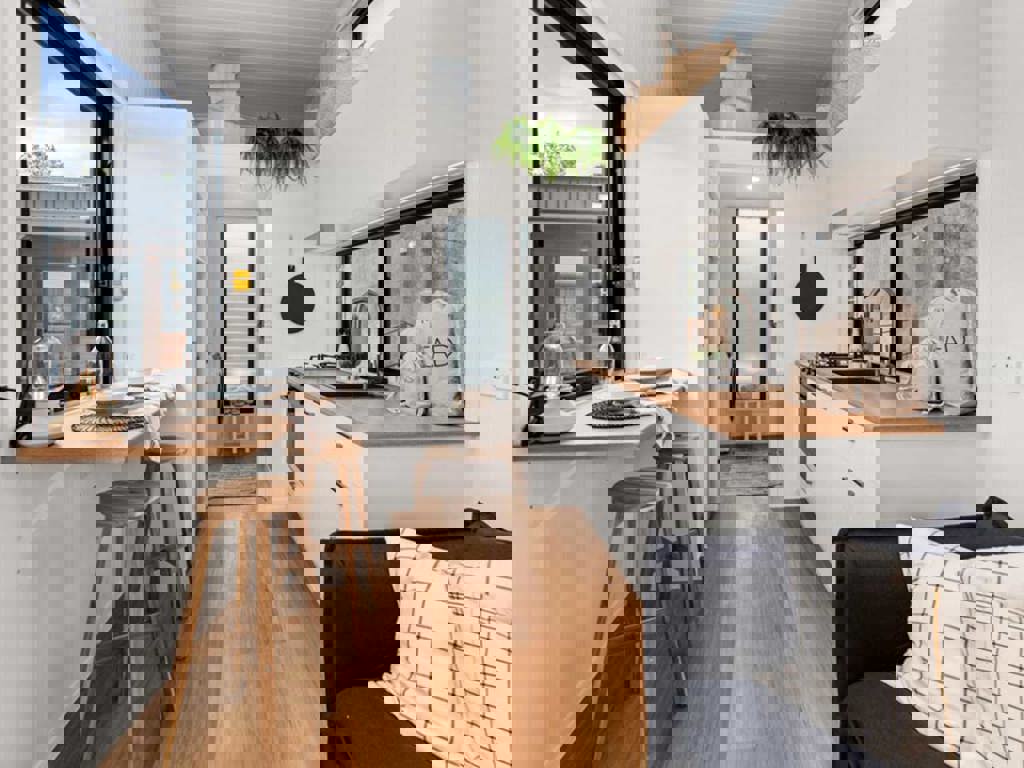

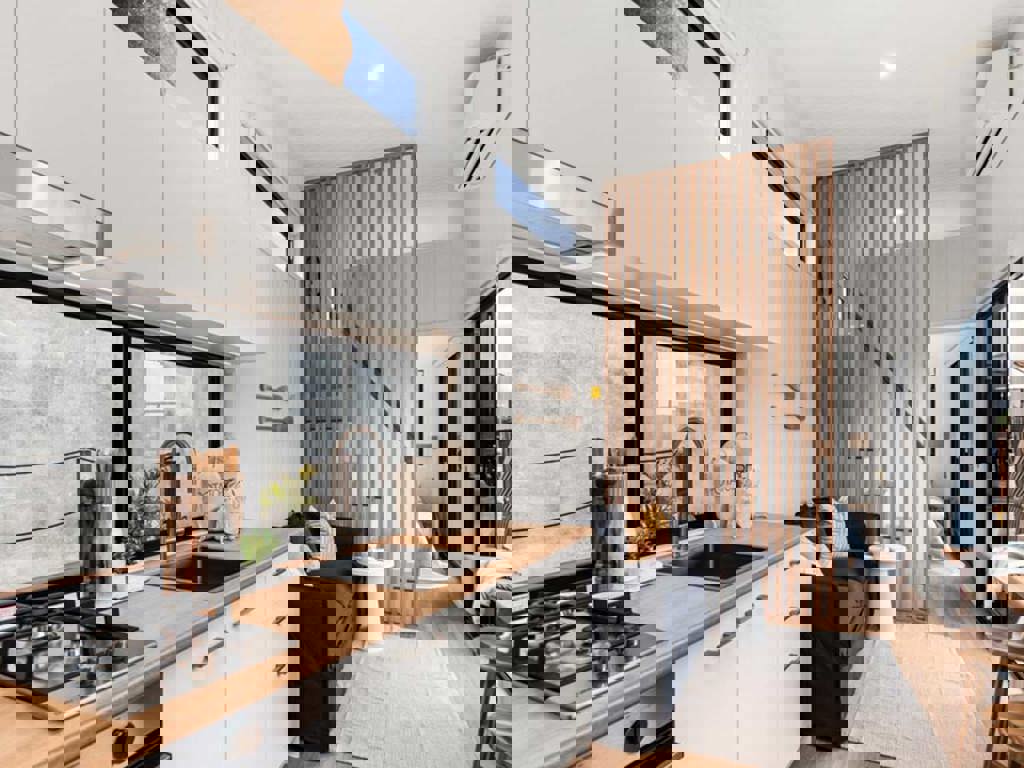

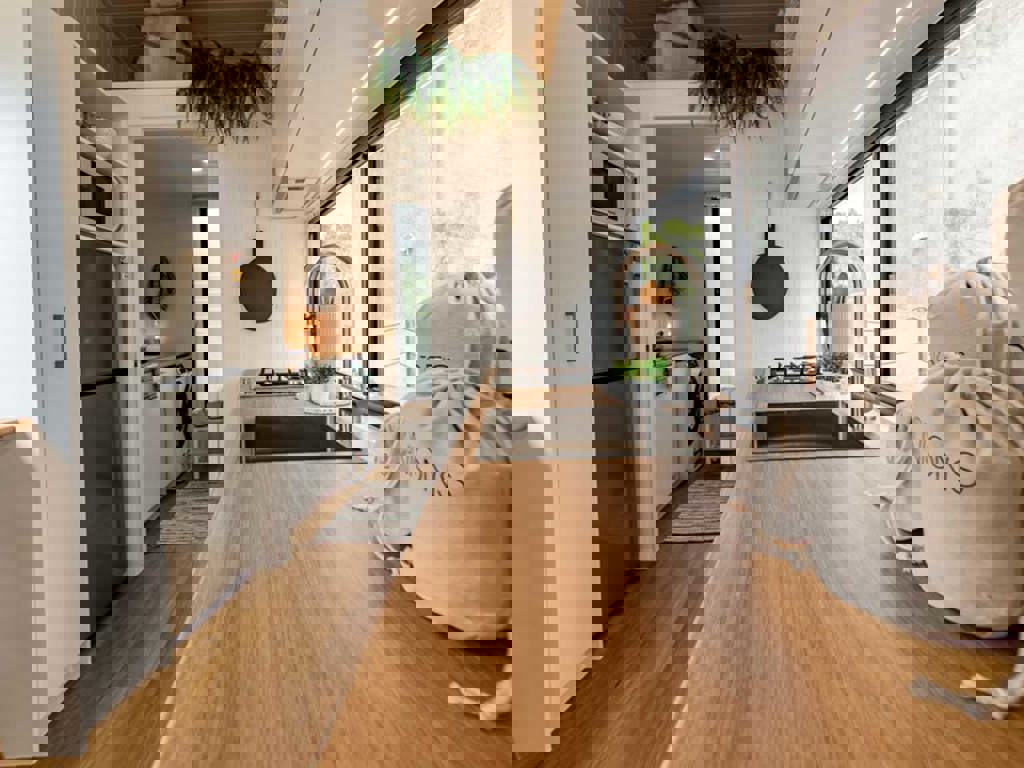

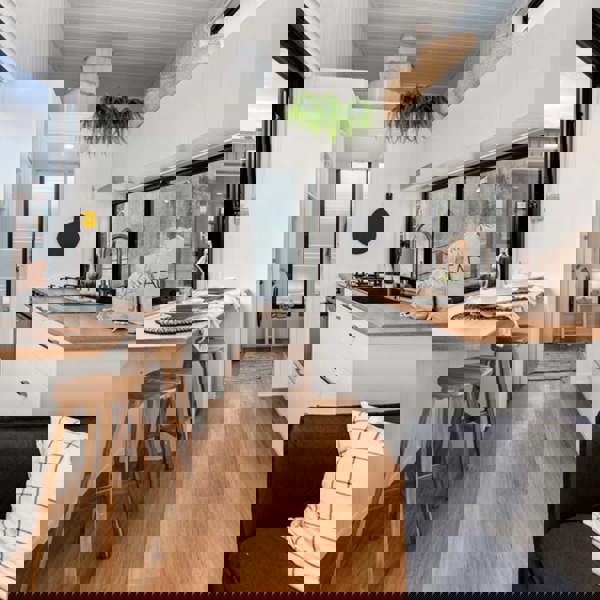

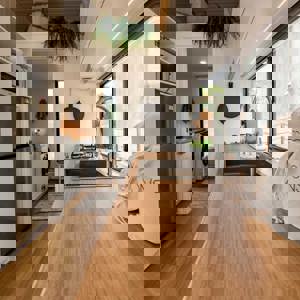

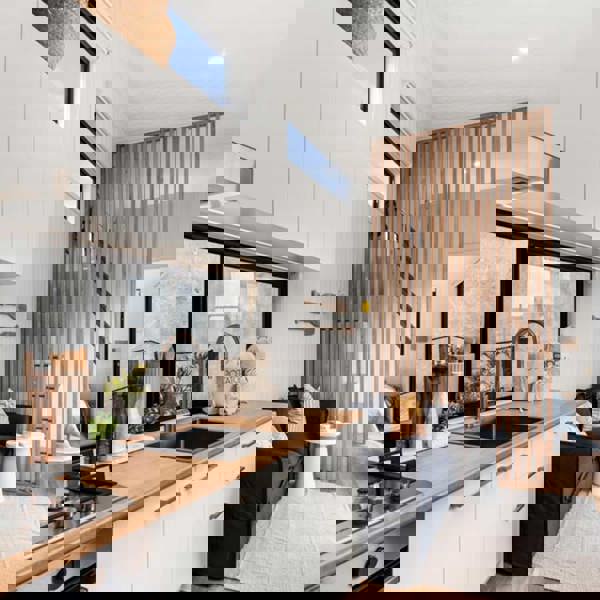

The Kitchen is well appointed, with a large bench, optional dishwasher, full-height pantry, breaky bar, overhead storage cupboards and space for a full-height fridge.

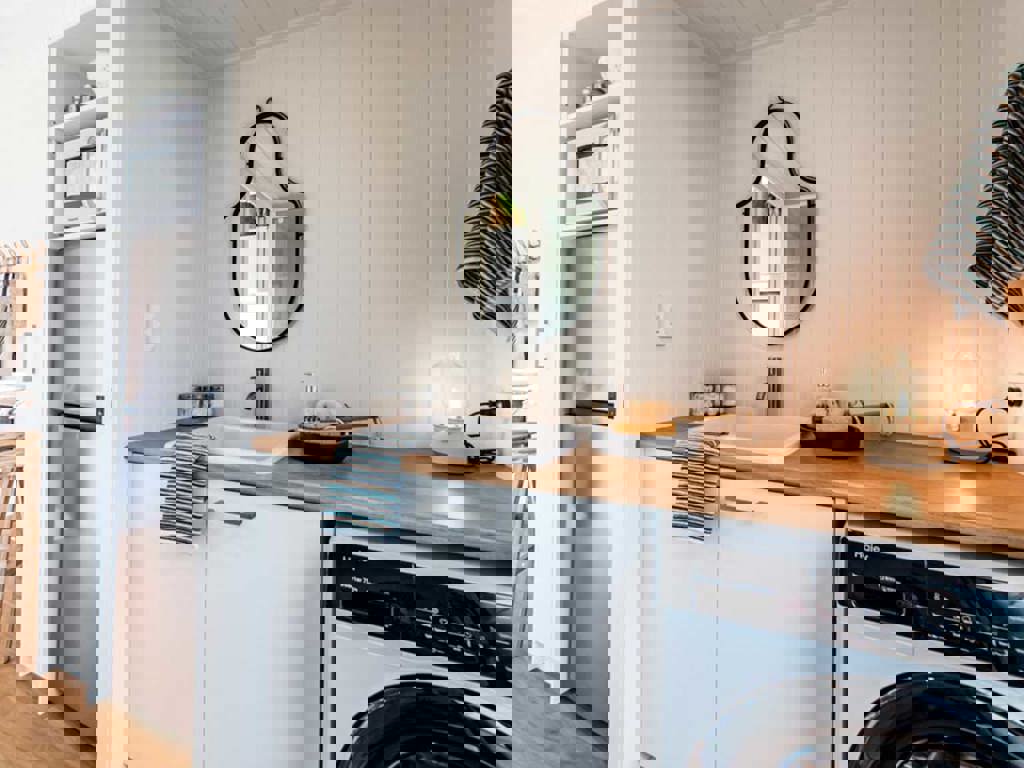

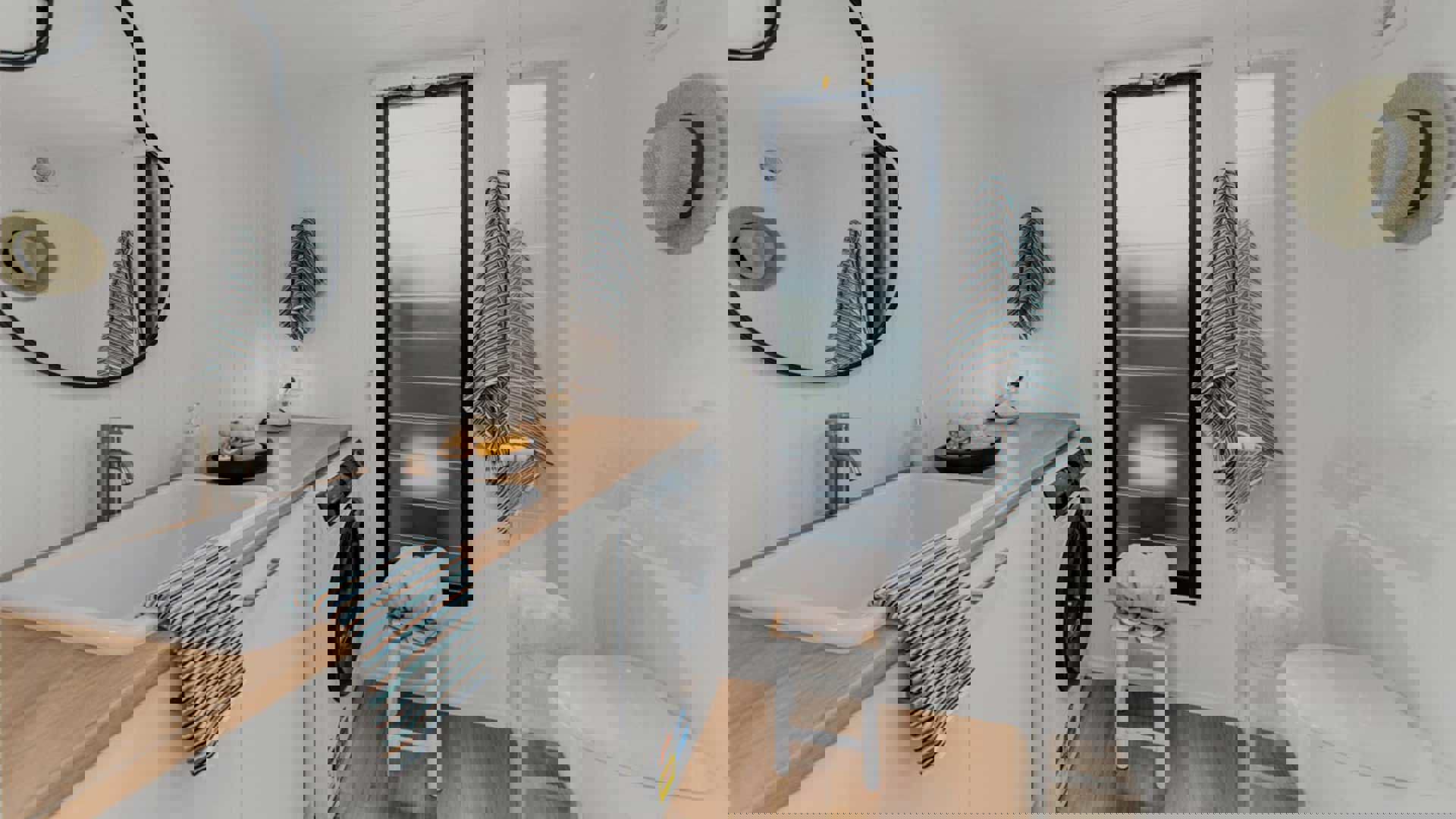

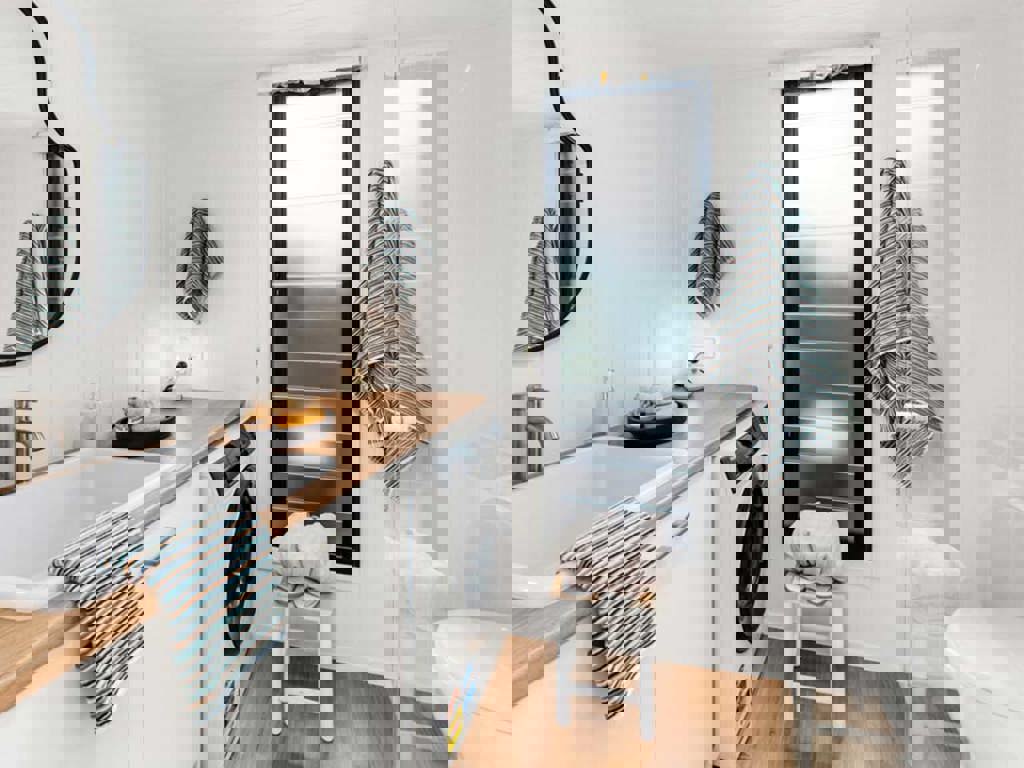

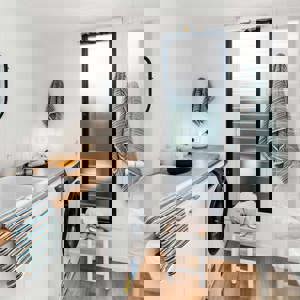

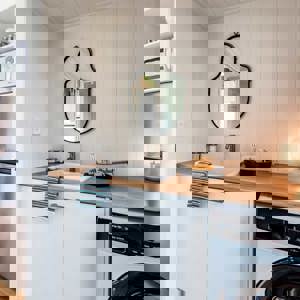

A well-designed Bathroom is provided with shower, toilet, vanity, under bench space for a washing machine and extra Loft storage above.

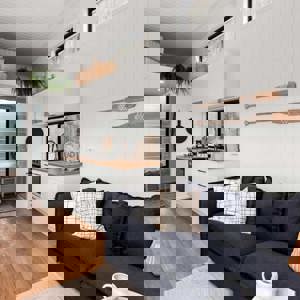

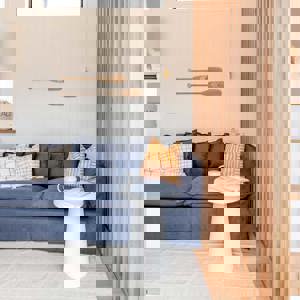

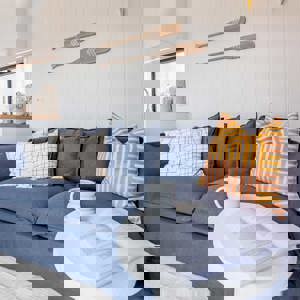

But it’s the flexibility of the Coogee 10, that has the pundits talking. Ground Level Bedroom with 2 built-in Robes. An upstairs Loft for Kids or Guests, large Bathroom with all amenities and an open planned Kitchen, Dining, Living space.
What more could you ask for in a Tiny?
Add on an optional ATH Trailer Deck and you have the “Perfect” Tiny House of your dreams.
Virtual Tour
Features and Inclusions
Trailer
- Tri Axle Trailer Rated to 4.5TON
- VIN (Vehicle Identification Number)
- Electric Brakes on all wheels
- Break Away System
- Hand Brake System
- 4x Stabilizing Legs
- Trailer Fully Painted for extra protection

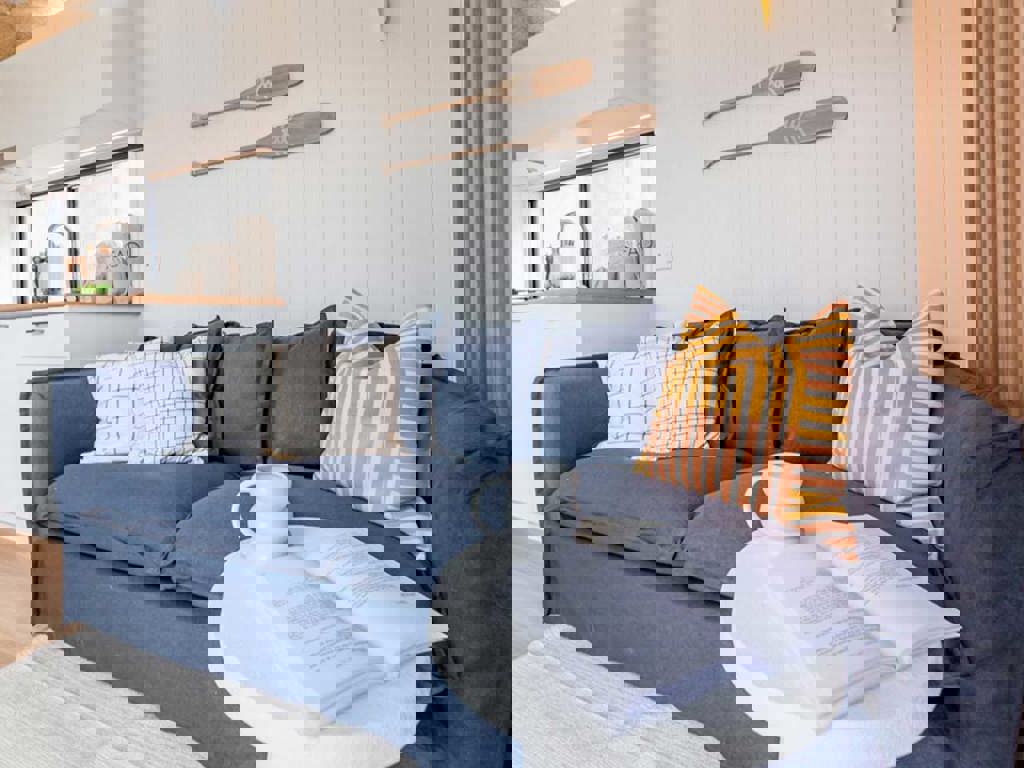

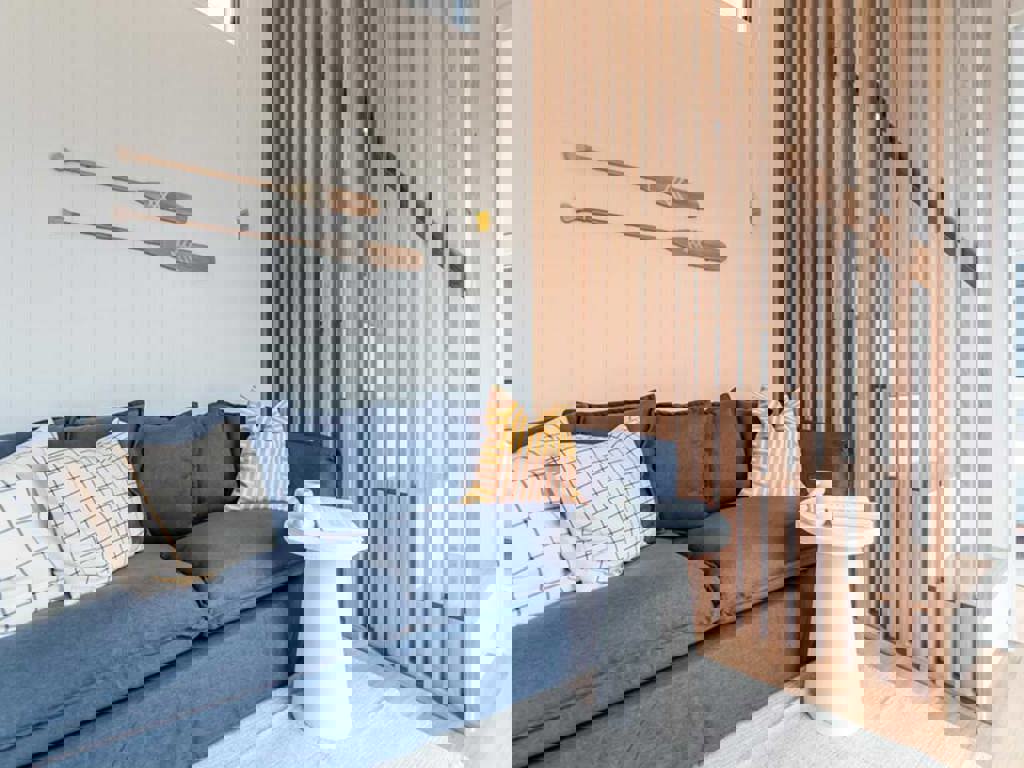

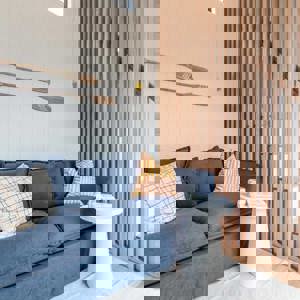

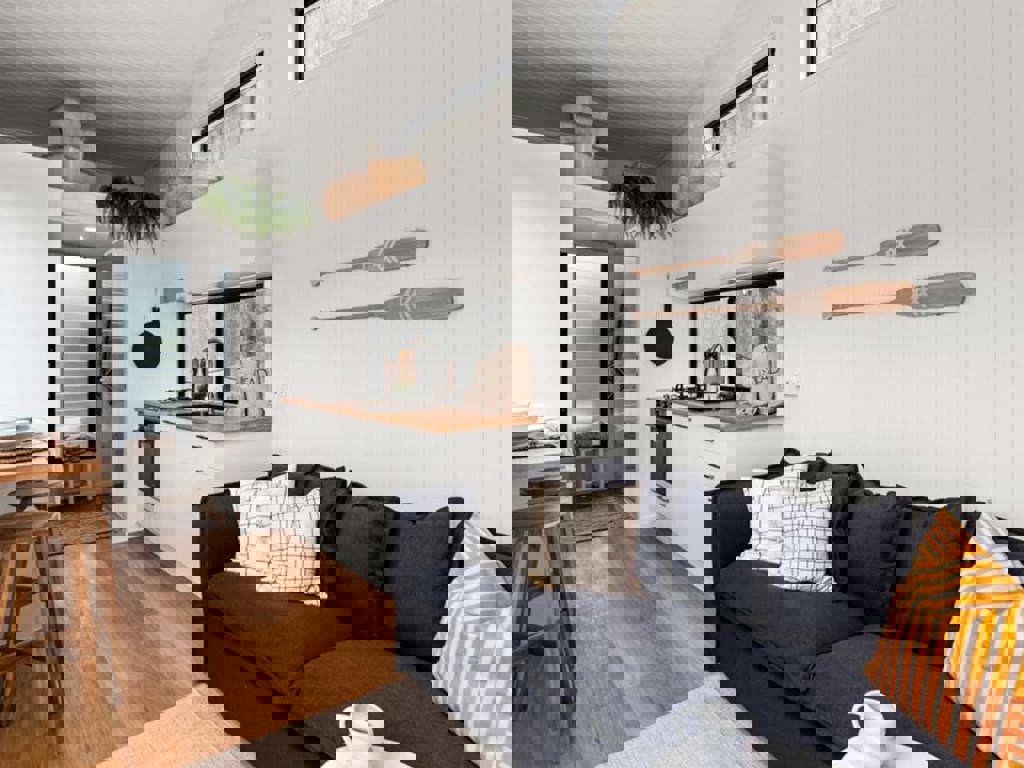

Living Room
-
Windows and Doors
- 1x Triple Stacker Door 2100H X 2238W + Fly Screen
- 1x Fixed Window 400H X 1500W
-
Appliances
- 2.5 kw Air conditioning
-
Electrical
- 1x Led Ceiling Downlight
- 1x Double Power Point

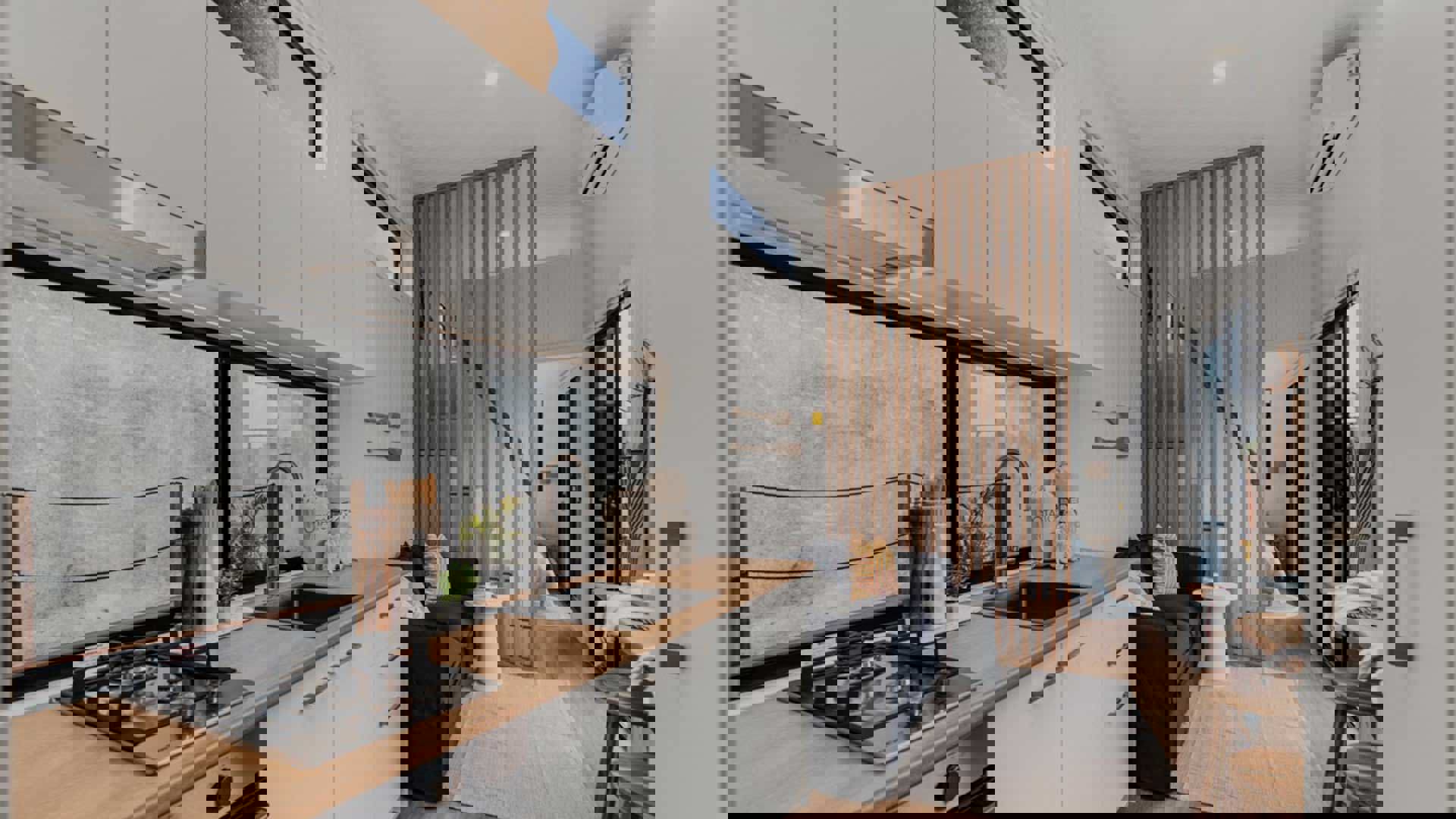

Kitchen
-
Features
- 1.2M Breakfast Multifunction Bench Bar
- Pull Out Pantry
-
Windows and Doors
- 1x Double Hung Window 1200H X 1100W + Fly Screen
- 1x Sliding Window 700H X 2000W + Fly Screen
- 1x Fixed Window 400H X 1500W
-
Appliances
- Stainless Steel Gas Cooktop 2 Burners
- Stainless Steel Electric Built-in Oven
- Recirculating Slide Out Built-in Rangehood
-
Fittings
- Standard Chrome Kitchen Tap
- Standard Chrome Stainless Steel Sink
-
Electrical
- 1x Led Ceiling Downlight
- 1x Double Power Point with USB
- 3x Double Power Points
- Smoke Alarm
-
Cabinetry
- Kitchen Cabinets + Overheads (as per design)
- Pull Out Pantry
- Soft Touch Close to Doors and Drawers where suitable
Bathroom
-
Windows and Doors
- Double Hung 1760H X 600W + Fly Screen
- 1x Cavity Sliding Door 2040H x 720W with Privacy Lock
-
Fittings
- Standard Chrome Shower Head
- Standard Chrome Shower Mixer
- Standard Stainless Steel Bathroom Sink
- Standard Chrome Basin Mixer
- Washing Machine Taps Ready
-
Electrical
- 1x Led Ceiling Downlight
- 2x Double Power Points
- Extractor Fan
-
Toilet / Shower
- Standard Composting Toilet

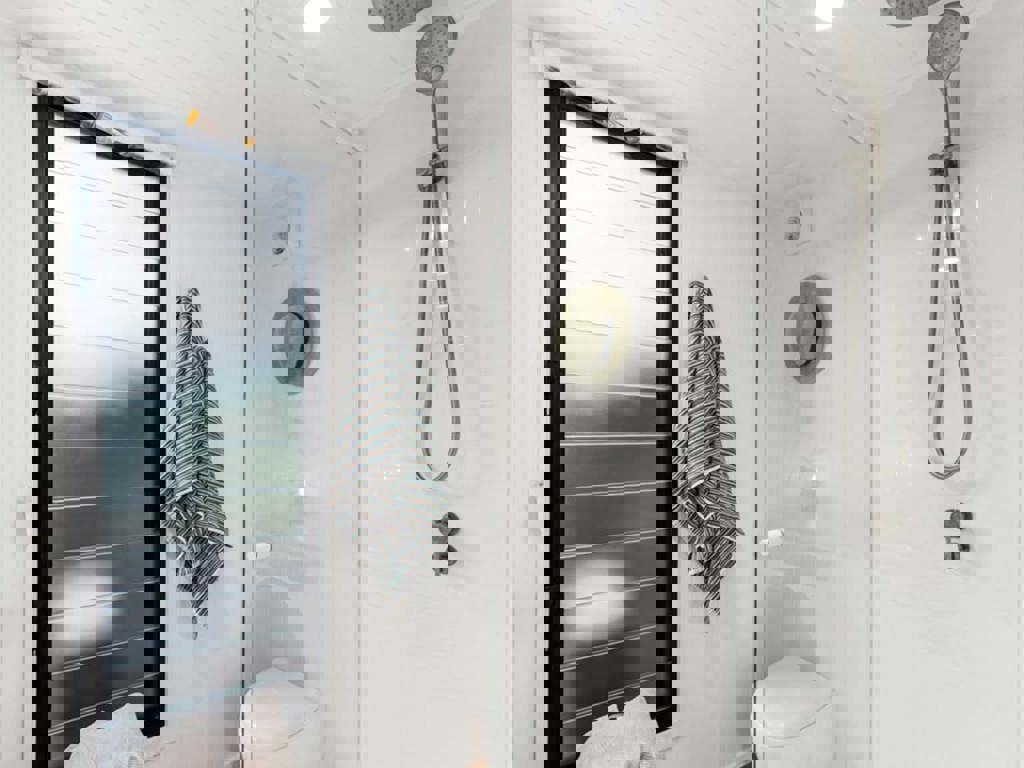

- Shower 820X820MM
- Toughened Glass Semi Frameless Shower Screen
Main Bedroom
-
Features
- Suitable for Queen or Double Size Bed
-
Windows and Doors
- 1x Sliding Door 2100H X 1500W + Fly Screen
- 2x Sliding Window 1200H X 1500W + Fly Screen
-
Electrical
- 1x Led Ceiling Downlight
- 1x Double Power Point with USB
- 1x Double Power Point
- 1x 2 Way Light Switch
-
Cabinetry
- Storage Robes (as per design)
Loft 1 Bedroom
-
Features
- Suitable for Queen Size Bed
-
Windows and Doors
- 1X Sliding Window 400H X 1500W + Fly Screen
-
Electrical
- 1x Led Ceiling Downlight
- 1x Double Power Point
- 1x 2 Way Light Switch
Loft 2 Bedroom
-
Features
- Suitable for Queen Size Bed
-
Windows and Doors
- 1X Sliding Window 400H X 1500W + Fly Screen
-
Electrical
- 1x Led Ceiling Downlight
- 1x Double Power Point
- 1x 2 Way Light Switch
Internal / Structure
- Waterproof Engineered Vinyl Floor Boards
- Insulation Batts Earthwool R 2.5
- Insulated Subfloor R 1.4
- Steel Frame Engineered
- Fully Painted - 1x colour option

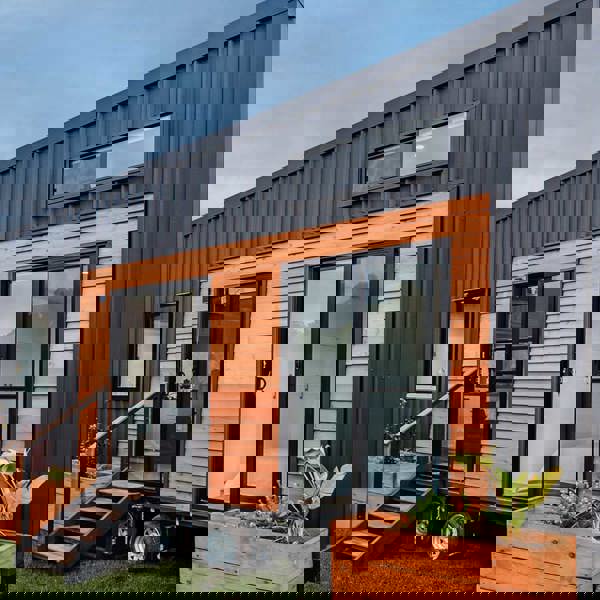

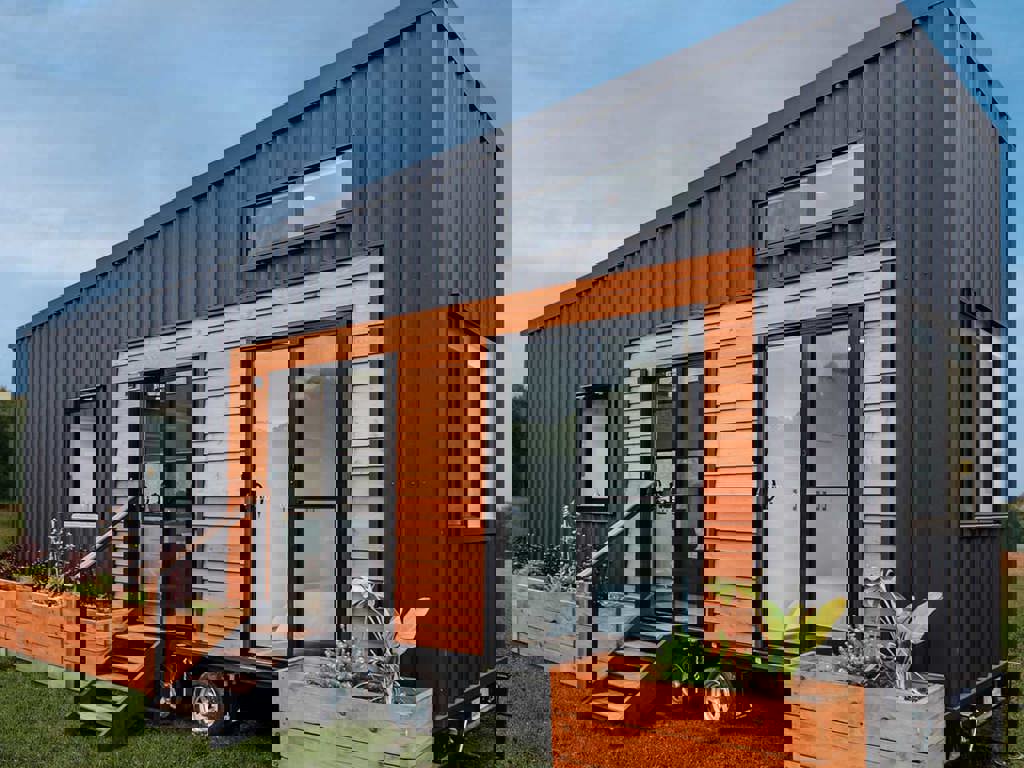

Exterior
- Safety Switch Board
- 2x External Double Power Point
- 20AMP Power Inlet with 20AMP Extension Lead
- Colorbond Steel Roof and Wall Cladding
- External LED Porch Light
- Water Inlet
- Dual Gas Regulator
- Gas Hot Water System
- Gas Aluminium Storage Box
Design Modifications
- Additional Sliding Window 1200H x 1500W in bedroom
- Replacement of Sliding Window 1200H X 1500W for 1200H X 1500W Awning Window in bedroom
- Additional Blind for Additional Sliding Window 1200H x 1210W in bedroom
UPGRADES and Packages
-
Kitchen / Appliances
- Dual Burner Electric Cooktop
- Dual Burner Gas Cooktop Black Glass Finish
- Stainless Steel Gas Built-in Oven
- External Ducting Kit (Rangehood)
- Built-in Single Dishwasher Drawer White or Stainless Steel
-
External / Internal
- Architectural Privacy Screen
- Mapei Sealant and Eco Friendly Paint
-
Cabinetry
- Kitchen Recessed LED Strip Light
-
Deck Trailers
- 10.0m Merbau Deck Trailer with Pergola
- 10.0m Merbau Deck Trailer with Pod and Pergola
- Blinds to standard windows and doors - Pod room
-
Heating and Cooling
- Air Conditioning 2.5Kw (Heating and cooling)
-
Bathroom
- Two Doors Shaving Cabinet with Mirror
-
Skylight and Windows
- Bi-Fold Servery Window Breakfast Bar 1200H X 1100W
- Gas Strut Servery Window Breakfast Bar 1200H X 1100W
- Bi-Fold / Gas Strut Custom Fly Screen 1200H X 1100W
- Louvre Window Bathroom 1060H X 600W + Fly Screen
- Blinds to all windows and doors
-
Water
- Water PUMP
- Ezgrey Greywater Diversion System
- Grease Trap 45L
-
Composting Toilets
- Cinderella Incineration Toilet - Electric
| Solar System Options | ||||||
|---|---|---|---|---|---|---|
| Specifications and Inclusions | Models | |||||
| ATH Systems | ATH Solar Trailers | |||||
| Medium BH-10kw | Heavy BH-15kw | Medium Trailer-10kw | Heavy Trailer-20kw | |||
| Application |
Medium Fridge LED Lights 240v Appliances TV/Computer Small AC System Gas Hot Water System Gas Appliances Dishwasher Washing Machine |
Medium/Large Fridge LED Lights 240v Appliances TV/Computer 2x Small AC Systems Gas Hot Water System Gas Appliances Dishwasher Washing Machine Electric Cooktop Electric Oven |
Medium Fridge LED Lights 240v Appliances TV/Computer Small AC System Gas Hot Water System Gas Appliances Dishwasher Washing Machine |
Medium/Large Fridge LED Lights 240v Appliances TV/Computer 2x Small AC Systems Gas Hot Water System Gas Appliances Dishwasher Washing Machine Electric Cooktop Electric Oven |
||
| Inverter Type | Victron Inverter Multiplus II | Victron Inverter Multiplus II | Victron Inverter Multiplus II | Victron Inverter Multiplus II | ||
| Solar Panel Qty | 6 | 8 | 8 | 8 | ||
| Solar Panel Size | 475w | 475w | 510w | 510w | ||
| Solar Capacity Watts | 2850 | 3800 | 4080 | 4080 | ||
| Battery Type | Lithium | Lithium | Lithium | Lithium | ||
| Battery Capacity kWh | 10 | 15 | 10 | 20 | ||
| Battery Expansion Capacity | N/A | 25 | 30 | 30 | ||
| Inverter Nominal kW | 5 | 5 | 5 | 8 | ||
| Inverter Peak W (10 sec) | 9000 | 9000 | 9000 | 15000 | ||
| Inverter Max AC Output A | 21.5 | 21.5 | 21.5 - (32 Amp Assisted) | 21.5 - (50 Amp Assisted) | ||
| 4G Remote Monitoring | 12 Months Free | 12 Months Free | 24 Months Free | 24 Months Free | ||
| Cabinet Height mm | 740 | 1440 | N/A | N/A | ||
| Auto-start Generator | Optional | Optional | Included | Included | ||
| Installation | Roof | Roof | Trailer | Trailer | ||
|
|
||||||
| Notes | ||||||
| 1) 5 years power equipment warranty. | ||||||
| 2) 10 years battery warranty. | ||||||
| 3) 25 years solar panels warranty. | ||||||
