Casuarina 9.0: Spacious and Stylish
Standard Turn-key Home from $121,900
SLEEPS 1-4
1x Queen size ground level bedroom
1x Optional extra Sofa Bed
DIMENSIONS
9m Length
2.4m Width
3.9m Height
PRICE
$121,900
FEATURES
Separate ground level bedroom
Single level design with storage loft
Skillion roof design
Central bathroom/ensuite design
Double built-in robes
Description

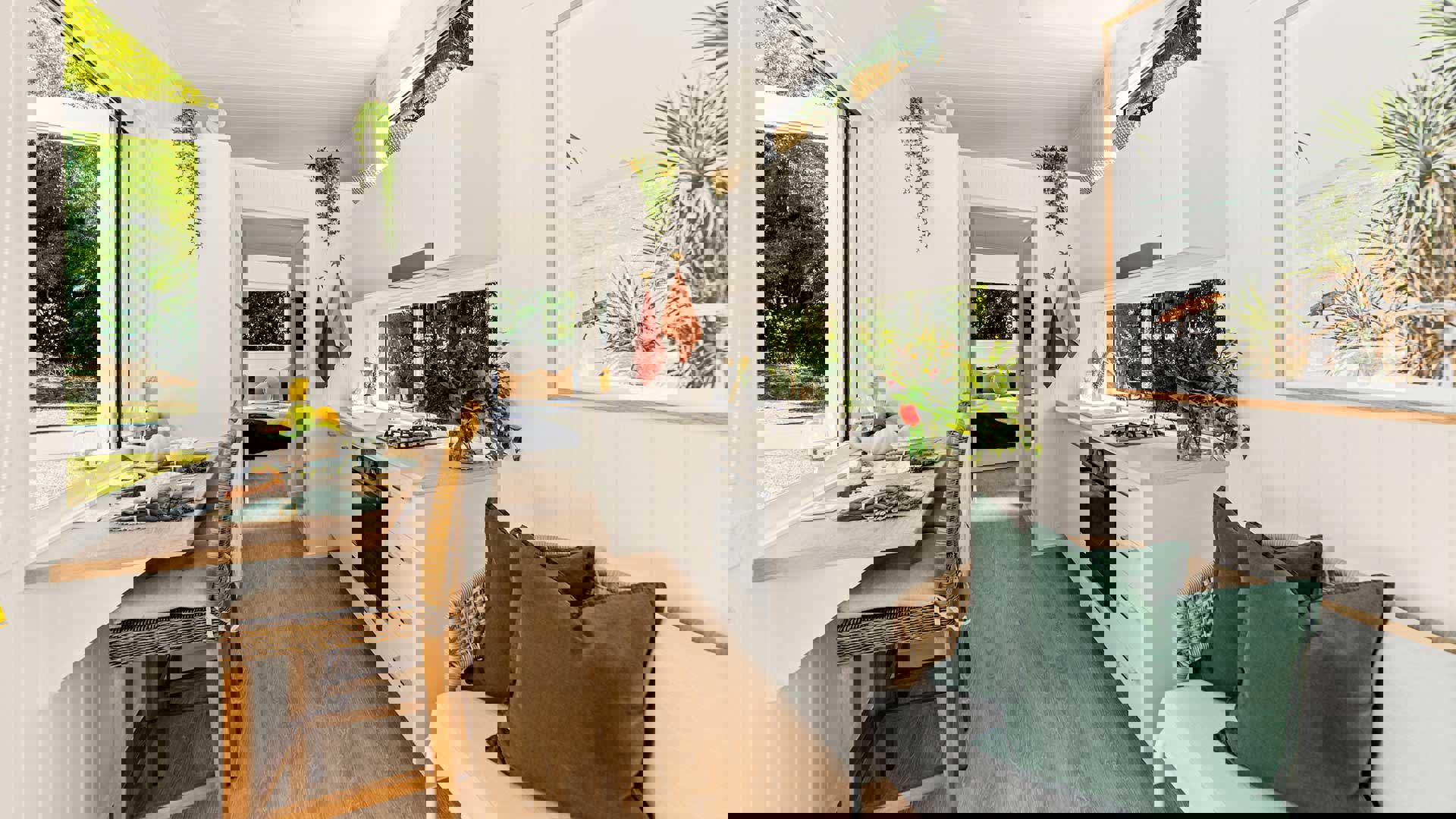

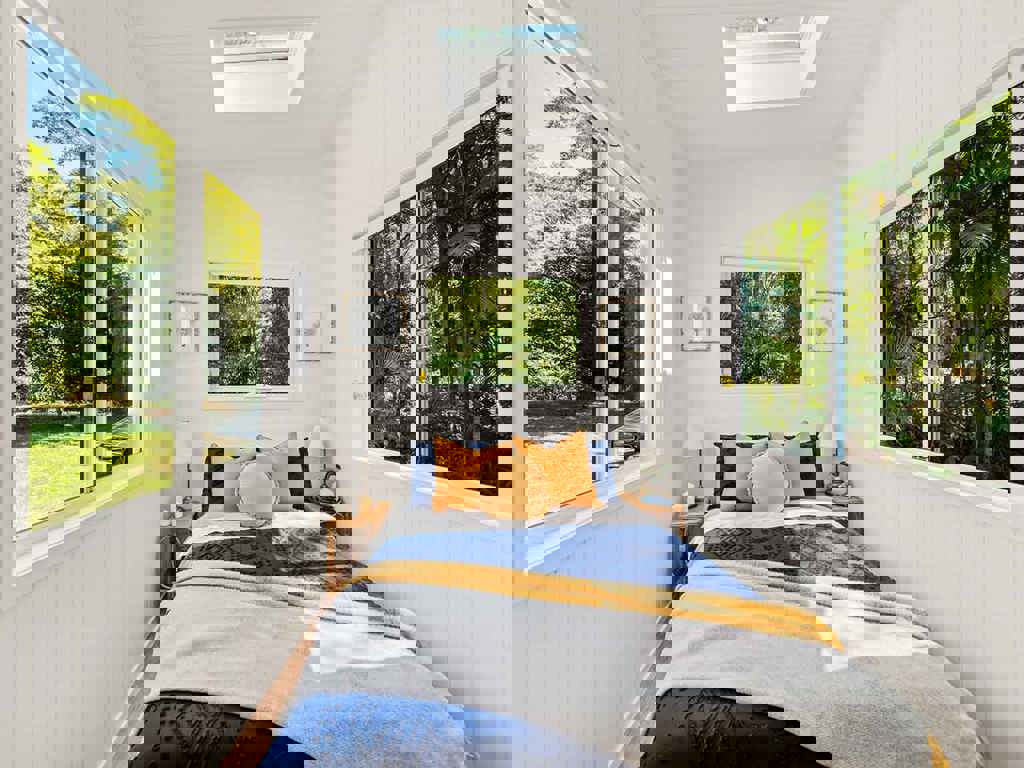

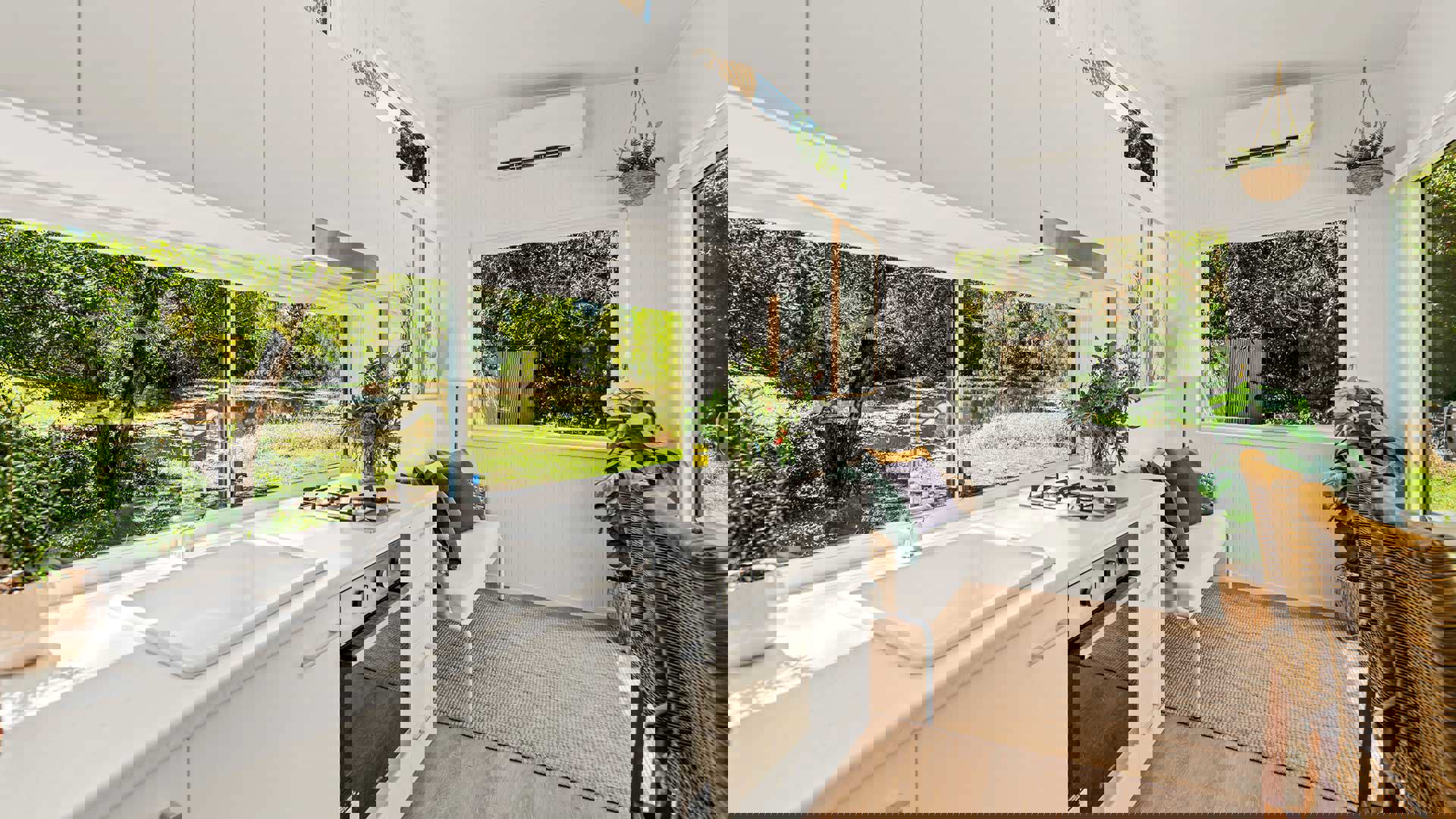

Complete with a large enclosed ground-level bedroom, double built-in wardrobes, a central bathroom and a spacious Kitchen and Living area.

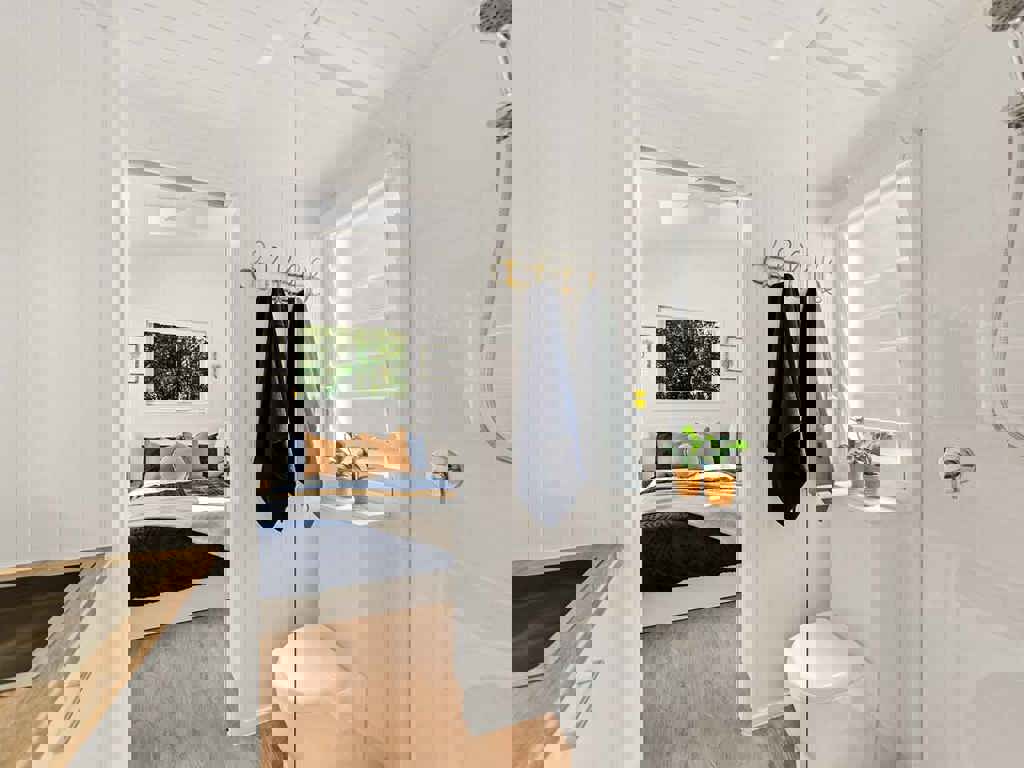

The internal bathroom design creates an ensuite to the bedroom, and can also be accessed via the Kitchen and Living area.

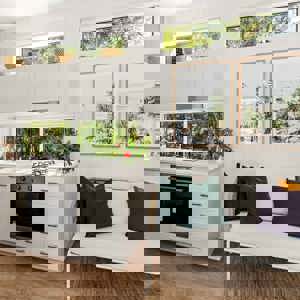

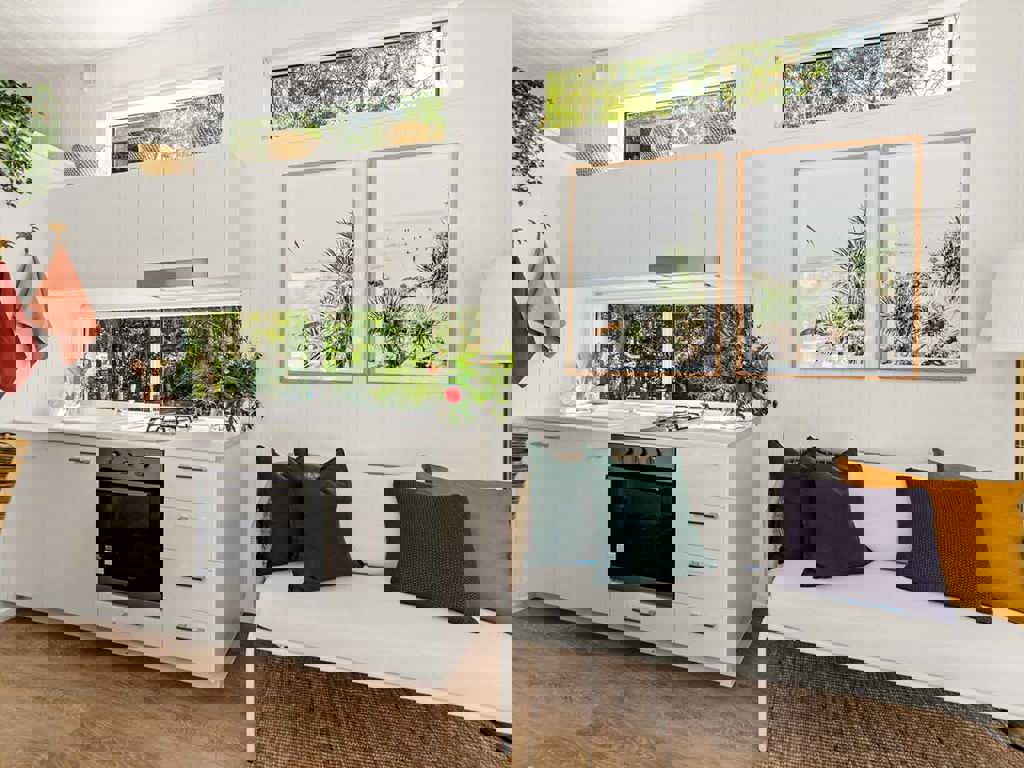

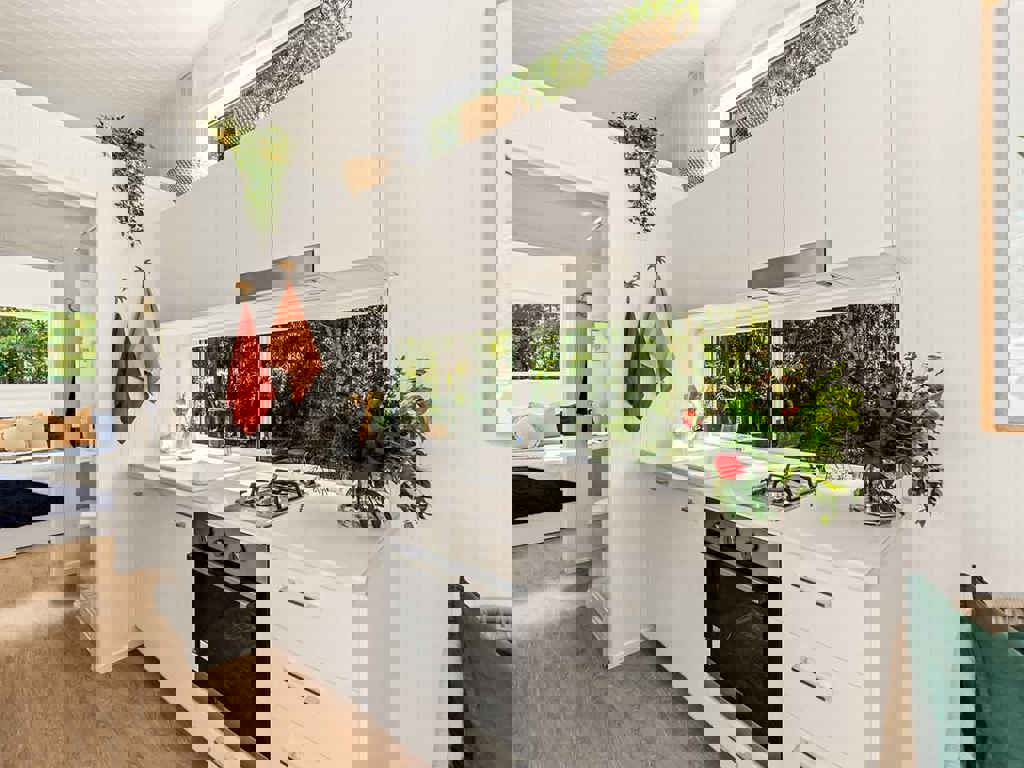

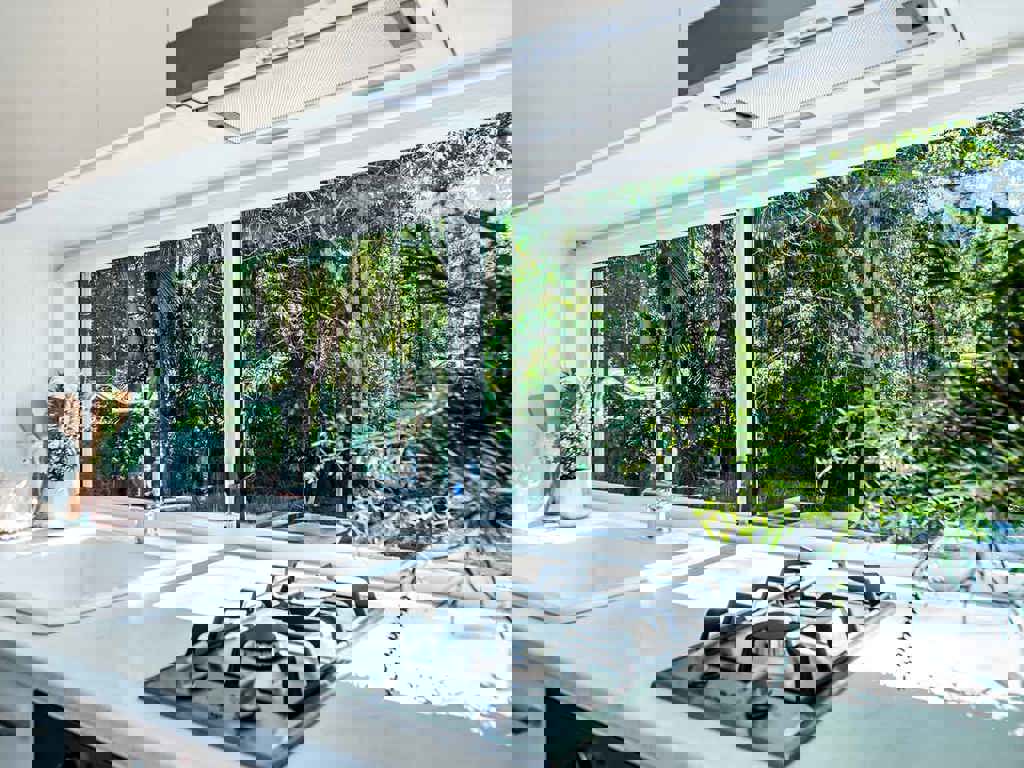

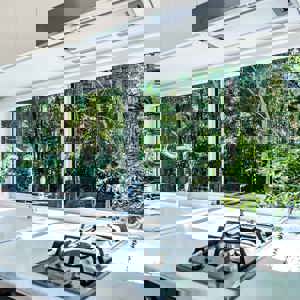

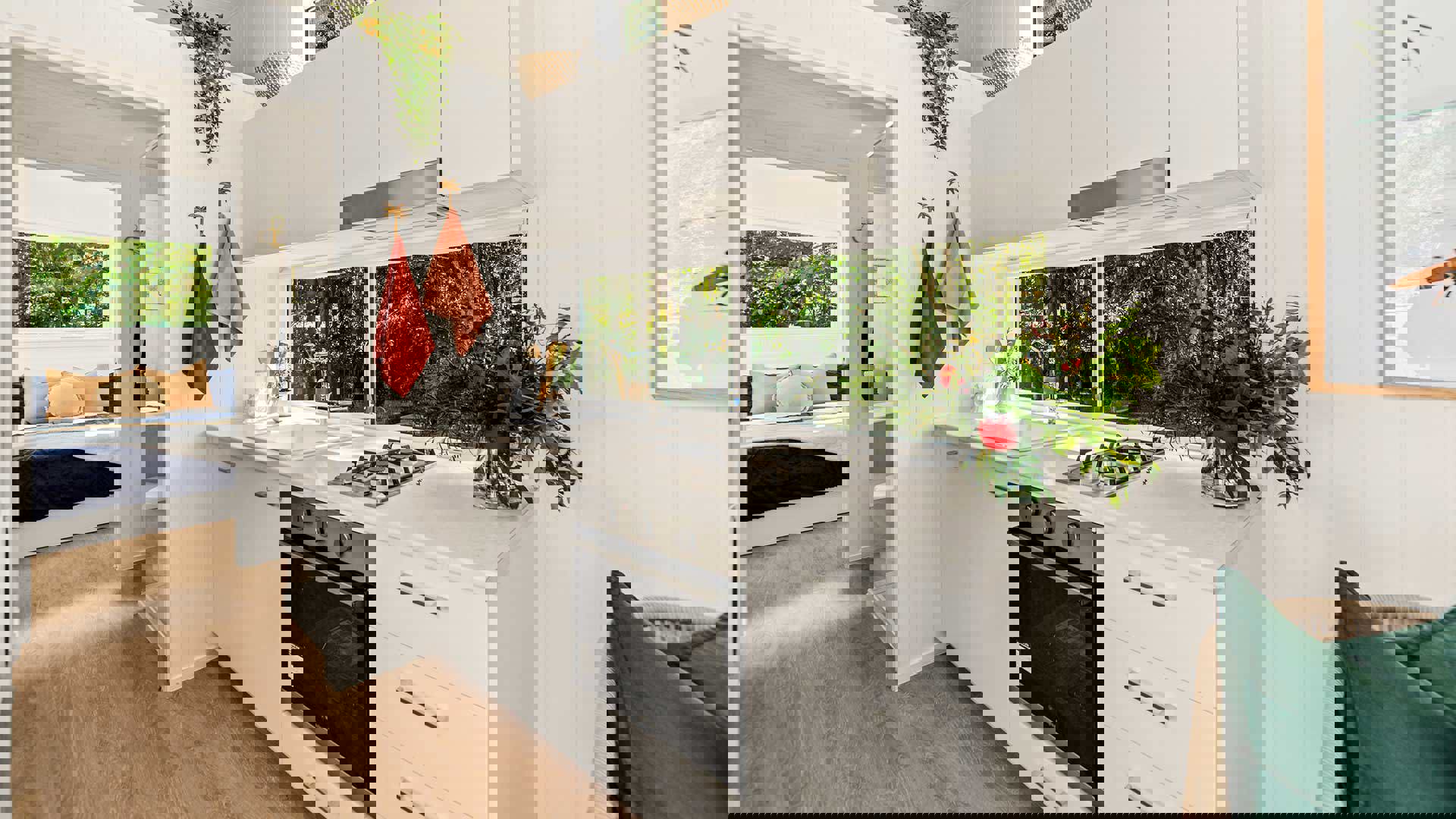

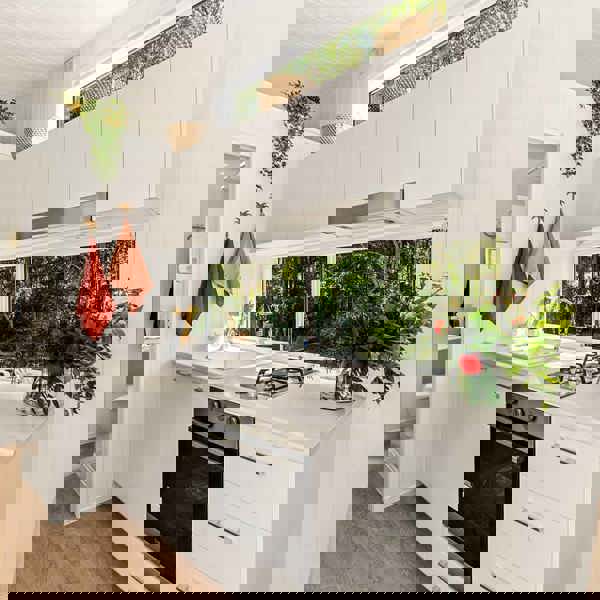

The Kitchen provides adequate bench space with a full-height pull-out pantry, storage cupboard and space for a full-height fridge.

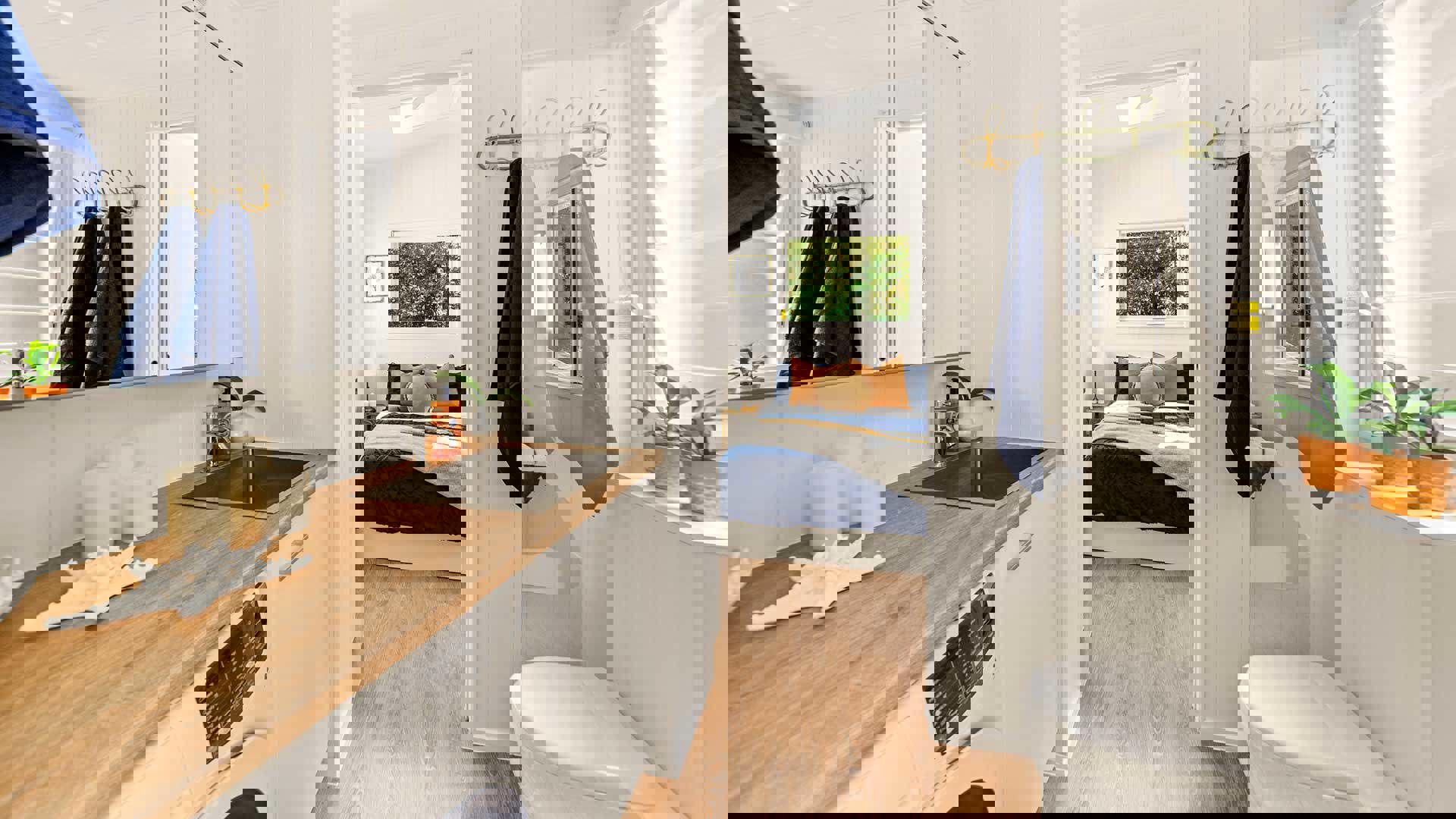

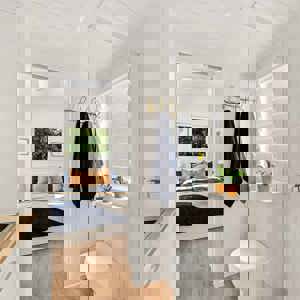

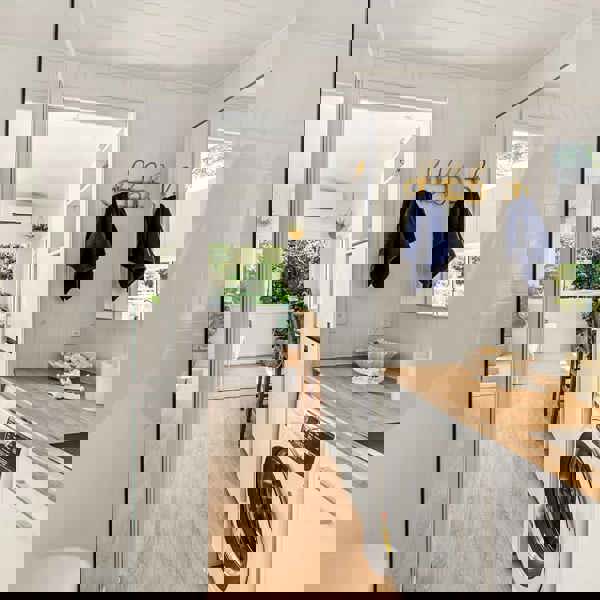

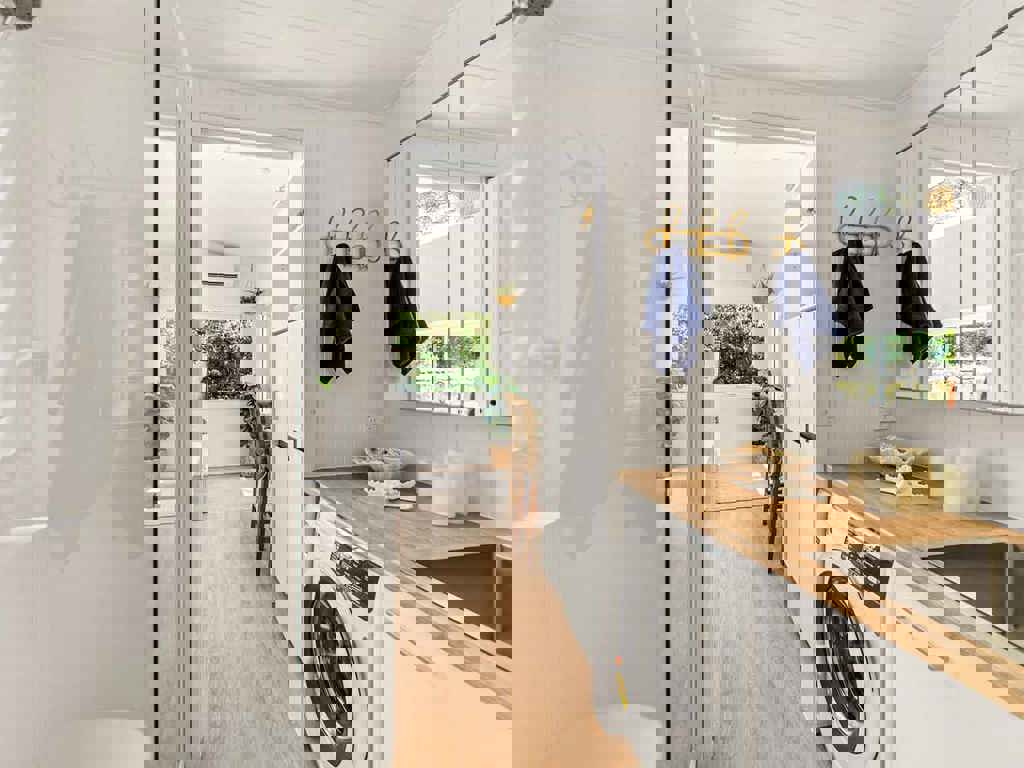

The 1.5-meter wide bathroom with shower, vanity, toilet and washing machine insert, is surprisingly large with plenty of space for storage and shelving options. There is also a storage loft above the bathroom for suitcases, boxes and other miscellaneous items.
This Tiny House is truly one to enjoy, a spacious and well-appointed “Home” to be proud of.
*We offer three building stages; Lock-up, Shell and Turn-Key. You can customise your individual requirements and inclusions in each stage.
**The photos and virtual tour published for this model may have had some Upgrades added. Please get in touch to get Standard Inclusions information.
***All deckings and other external structures for our standard models are not included in the price and were either built by the client or a local builder arranged by the customer after delivery.
360° Virtual Tour
Features and Inclusions
Trailer
- Tri Axle Trailer Rated to 4.5TON
- VIN (Vehicle Identification Number)
- Electric Brakes on all wheels
- Break Away System
- Hand Brake System
- 4x Stabilizing Legs
- Trailer Fully Painted for extra protection
Living Room
-
Windows and Doors
- 2x Sliding Door 2100H X 1500W + Fly Screen
-
Appliances
- 2.5 kw Air conditioning
-
Electrical
- 1x Led Ceiling Downlight
- 1x Double Power Point
Kitchen
-
Features

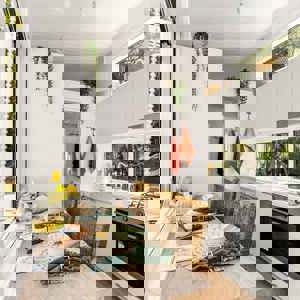

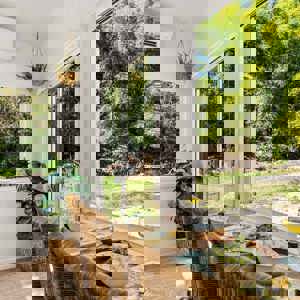

- 1.2M Breakfast Multifunction Bench Bar
- Pull Out Pantry
-
Windows and Doors
- Double Hung Window 1200H X 1100W + Fly Screen
- Sliding Window 700H X 2000W + Fly Screen
-
Appliances
- Stainless Steel Gas Cooktop 2 Burners

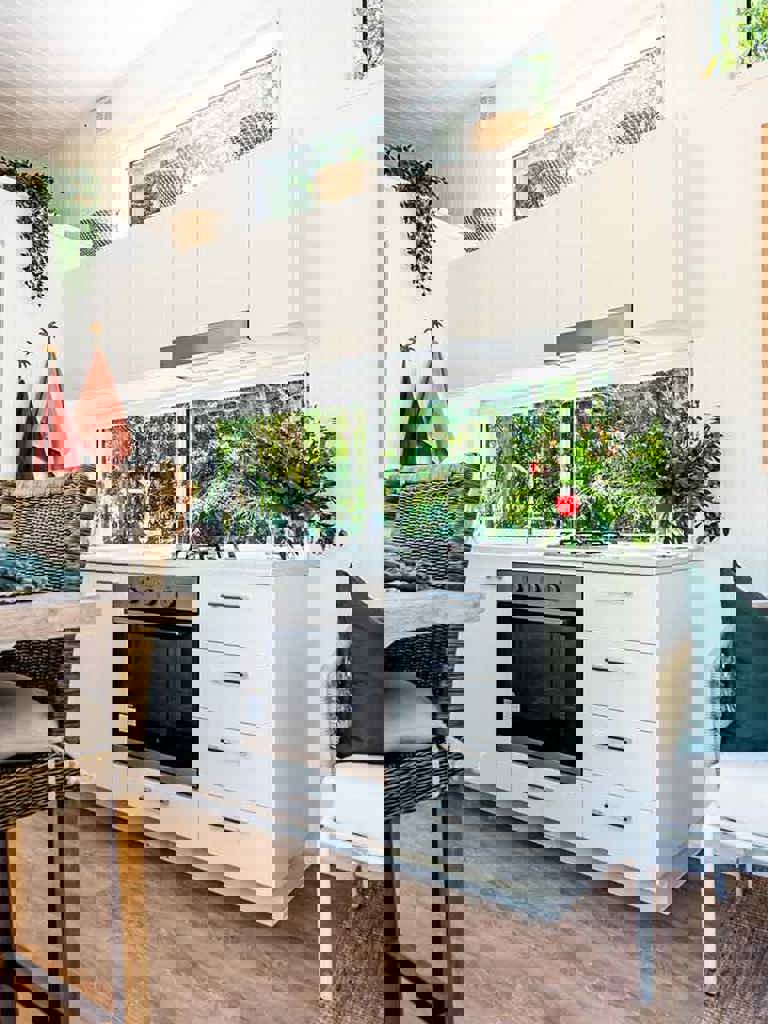

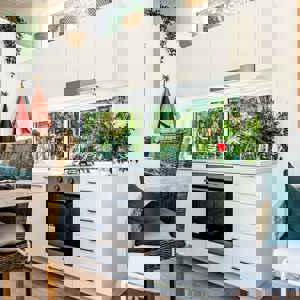

- Stainless Steel Electric Built-in Oven
- Recirculating Slide Out Built-in Rangehood
-
Fittings
- Standard Chrome Kitchen Tap

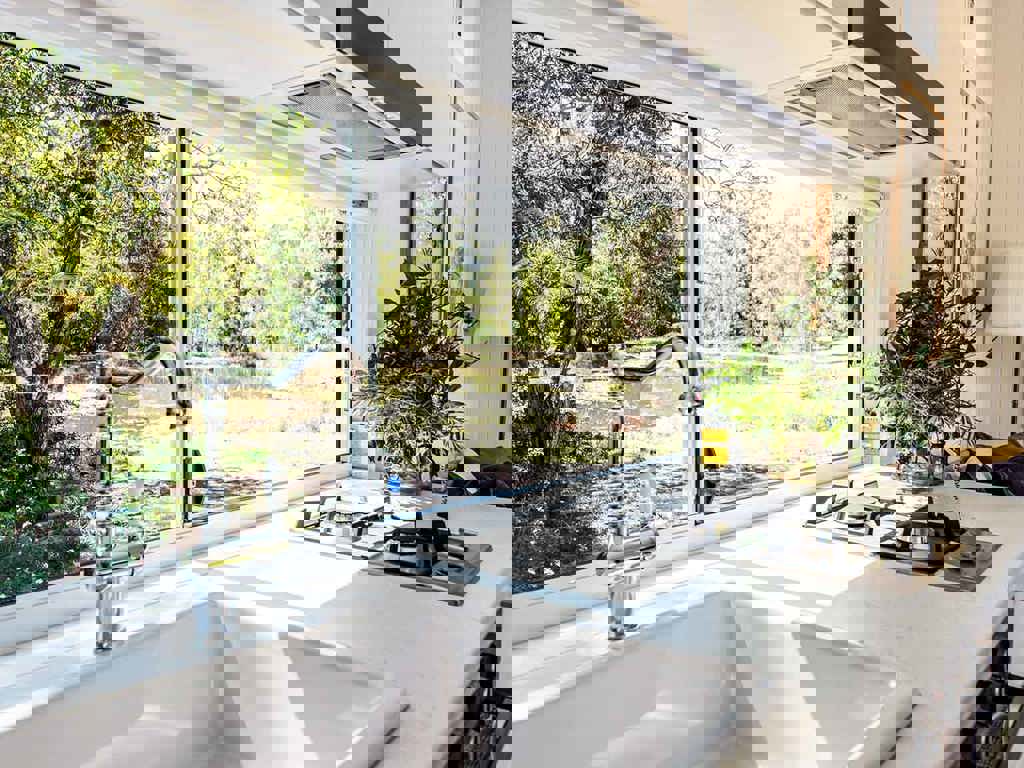

- Standard Chrome Stainless Steel Sink
-
Electrical
- 1x 2 Bar Spotlight
- 1x Double Power Point with USB
- 4x Double Power Points
- Smoke Alarm
-
Cabinetry
- Kitchen Cabinets + Overheads (as per design)
- Pull Out Pantry
- Soft Touch Close to Doors and Drawers where suitable
Bathroom
-
Windows and Doors
- Double Hung 920H X 600W + Fly Screen
- 2x Cavity Sliding Door 2040H x 720W with Privacy Lock
-
Fittings
- Standard Chrome Shower Head
- Standard Chrome Shower Mixer
- Standard Stainless Steel Bathroom Sink
- Standard Chrome Basin Mixer
- Washing Machine Taps Ready
-
Electrical
- 1x Led Ceiling Downlight
- 2x Double Power Points
- Extractor Fan
-
Toilet / Shower
- Standard Composting Toilet
- Shower 820X820MM
- Toughened Glass Semi Frameless Shower Screen

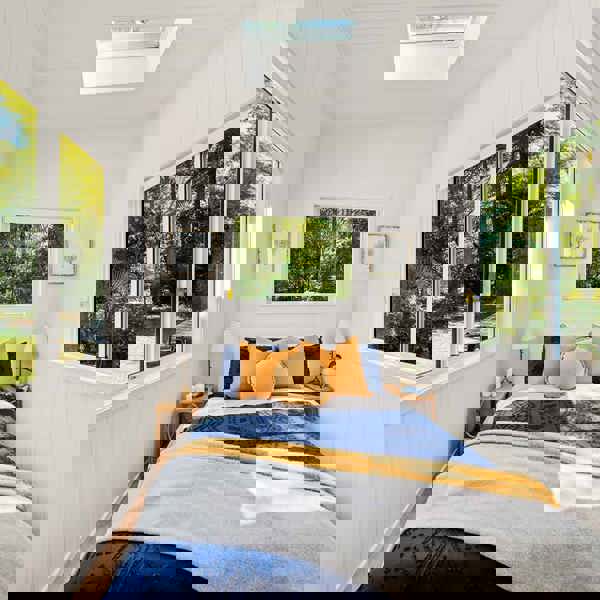

Main Bedroom
-
Features
- Suitable for Queen or Double Size Bed
-
Windows and Doors
- Sliding Window 1200H X 1200W + Fly Screen
- Awning Window 900H X 1200W + Fly Screen
-
Electrical
- 1x 2 Bar Spotlight
- 1x Double Power Point with USB
- 1x Double Power Point
- 1x 2 Way Light Switch
-
Cabinetry
- Storage Robes (as per design)
Internal / Structure
- Waterproof Engineered Vinyl Floor Boards
- Insulation Batts Earthwool R 2.5
- Insulated Subfloor R 1.4
- Steel Frame Engineered C2 (cyclone rating)
- Fully Painted - 1x colour option
Exterior
- Safety Switch Board
- 2x External Double Power Point
- 20AMP Power Inlet with 20AMP Extension Lead
- Colorbond Steel Roof and Wall Cladding
- External LED Porch Light
- Water Inlet
- Dual Gas Regulator
- Gas Hot Water System
- Gas Aluminium Storage Box
Design Modifications

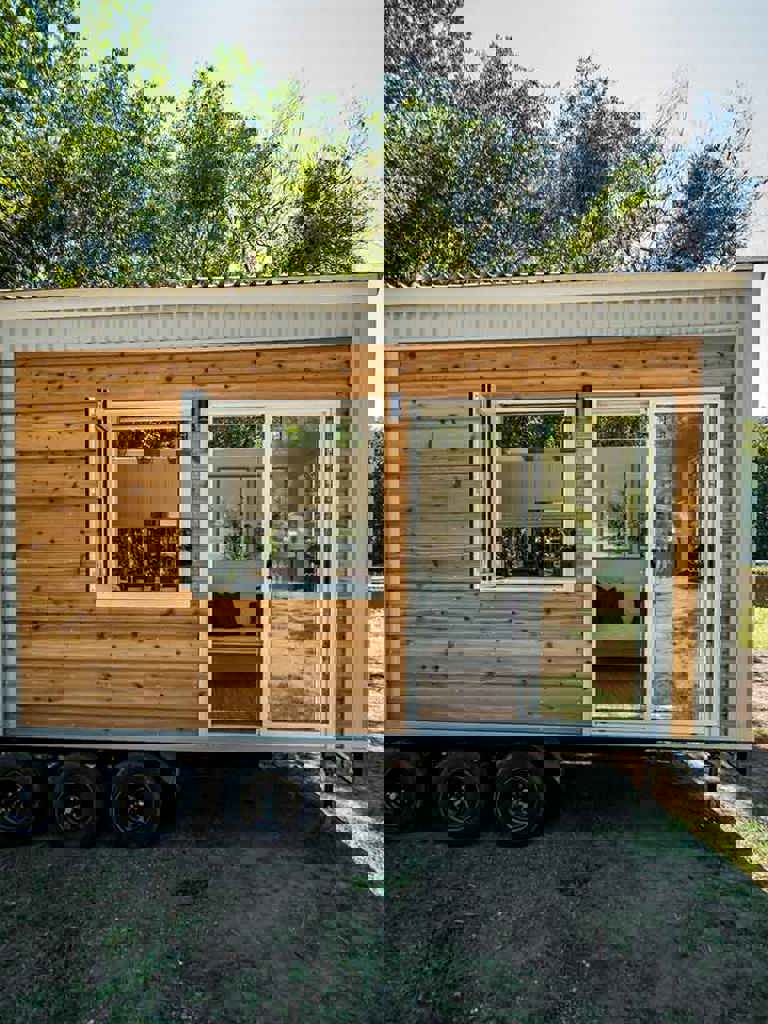

- Replacement of 1 sliding door 2100H x 1500W for Swing door 2100H x 900W in living room (does not include fly screen)
- Additional 2x Fixed Glass 400H x 1500W in living room
- Replacement of 1 sliding window 1200H x 1200W for sliding door 2100H x 1500W in bedroom
- Additional Sliding Window 1200H x 1200W in bedroom
- Replacement of 1 sliding door 2100H x 1500W for Awning Window 1200H x 1500W in living room
UPGRADES and Packages
-
Kitchen / Appliances
- 205L Fridge and Freezer White or Stainless Steel
- Dual Burner Electric Cooktop
- Dual Burner Gas Cooktop Black Glass Finish
- Stainless Steel Gas Built-in Oven
- External Ducting Kit (Rangehood)
- Built-in Single Dishwasher Drawer White or Stainless Steel
- 7.5KG Front Loading Washing Machine
-
Heating and Cooling
- Air Conditioning 2.5Kw (Heating and cooling)
- Ceiling Fan with Light and Remote Control
-
Bathroom
- Two Doors Shaving Cabinet with Mirror
- Xenolith Vanity Benchtop
-
External / Internal
- External Cedar Cladding Feature Wall
- Ply Wood Shadow Gap Feature Ceiling
- Bathroom Cedar Feature Ceiling
- Full Cedar Feature Ceiling
- Gable Roof With Exposed Rafters - Cathedral Ceiling
- Mapei Sealant and Eco Friendly Paint
-
Cabinetry
- Kitchen Recessed LED Strip Light
- Xenolith Kitchen Benchtop
-
Deck Trailers
- 9.0m Composite Deck Trailer with Pergola
- 9.0m Composite Deck Trailer with Pod and Pergola
-
Skylight and Windows
- Velux Manual Skylight (VCM) + Blinds + Screens (665mm x 970mm)
- Velux Solar Power Skylight (VCS) + Blinds + Screens (665mm x 970mm)
- Velux Manual Skylight (VCM) + Blinds + Screens (1275mm x 1275mm)
- Velux Solar Skylight (VCS) + Blinds + Screens (1275mm x 1275mm)
- Bi-Fold Servery Window Breakfast Bar 1200H X 1100W
- Gas Strut Servery Window Breakfast Bar 1200H X 1100W
- Bi-Fold / Gas Strut Custom Fly Screen 1200H X 1100W
- Louvre Window Bathroom 920H X 600W + Fly Screen
- Blinds to all windows and doors
-
Water
- 2500L Slimline PVC Water Tank
- 5000L Slimline PVC Water Tank
- 3000L Round PVC Water Tank
- 5000L Round PVC Water Tank
- Water PUMP
- Ezgrey Greywater Diversion System
- Grease Trap 45L
-
Composting Toilets
- 2x NL Alectura Heat Pad
- Nature Loo NL3
- Cinderella Incineration Toilet - Electric
| Solar System Options | ||||||
|---|---|---|---|---|---|---|
| Specifications and Inclusions | Models | |||||
| ATH Systems | ATH Solar Trailers | |||||
| Medium BH-10kw | Heavy BH-15kw | Medium Trailer-10kw | Heavy Trailer-20kw | |||
| Application |
Medium Fridge LED Lights 240v Appliances TV/Computer Small AC System Gas Hot Water System Gas Appliances Dishwasher Washing Machine |
Medium/Large Fridge LED Lights 240v Appliances TV/Computer 2x Small AC Systems Gas Hot Water System Gas Appliances Dishwasher Washing Machine Electric Cooktop Electric Oven |
Medium Fridge LED Lights 240v Appliances TV/Computer Small AC System Gas Hot Water System Gas Appliances Dishwasher Washing Machine |
Medium/Large Fridge LED Lights 240v Appliances TV/Computer 2x Small AC Systems Gas Hot Water System Gas Appliances Dishwasher Washing Machine Electric Cooktop Electric Oven |
||
| Inverter Type | Victron Inverter Multiplus II | Victron Inverter Multiplus II | Victron Inverter Multiplus II | Victron Inverter Multiplus II | ||
| Solar Panel Qty | 6 | 8 | 8 | 8 | ||
| Solar Panel Size | 475w | 475w | 510w | 510w | ||
| Solar Capacity Watts | 2850 | 3800 | 4080 | 4080 | ||
| Battery Type | Lithium | Lithium | Lithium | Lithium | ||
| Battery Capacity kWh | 10 | 15 | 10 | 20 | ||
| Battery Expansion Capacity | N/A | 25 | 30 | 30 | ||
| Inverter Nominal kW | 5 | 5 | 5 | 8 | ||
| Inverter Peak W (10 sec) | 9000 | 9000 | 9000 | 15000 | ||
| Inverter Max AC Output A | 21.5 | 21.5 | 21.5 - (32 Amp Assisted) | 21.5 - (50 Amp Assisted) | ||
| 4G Remote Monitoring | 12 Months Free | 12 Months Free | 24 Months Free | 24 Months Free | ||
| Cabinet Height mm | 740 | 1440 | N/A | N/A | ||
| Auto-start Generator | Optional | Optional | Included | Included | ||
| Installation | Roof | Roof | Trailer | Trailer | ||
|
|
||||||
| Notes | ||||||
| 1) 5 years power equipment warranty. | ||||||
| 2) 10 years battery warranty. | ||||||
| 3) 25 years solar panels warranty. | ||||||
* Solar upgrades available, please enquire about.
