SLEEPS 1-4
1x Queen size loft
1x Optional extra sofa bed
DIMENSIONS
7.2m Length
2.4m Width
4.3m Height
PRICE
Turn Key - from $118,900
FEATURES
Rear storage stair to loft
2x sliding entry doors
Breakfast Bar
2.7m long kitchen
Description
With a large kitchen, generous open plan living, and rear stairs to access the loft, our Mooloolaba 7.2 is the ultimate Tiny House.

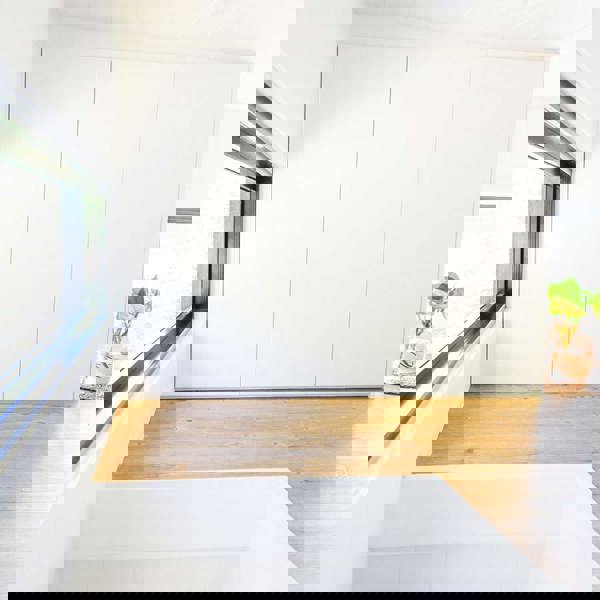

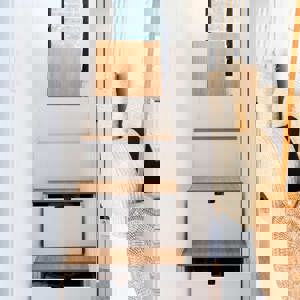

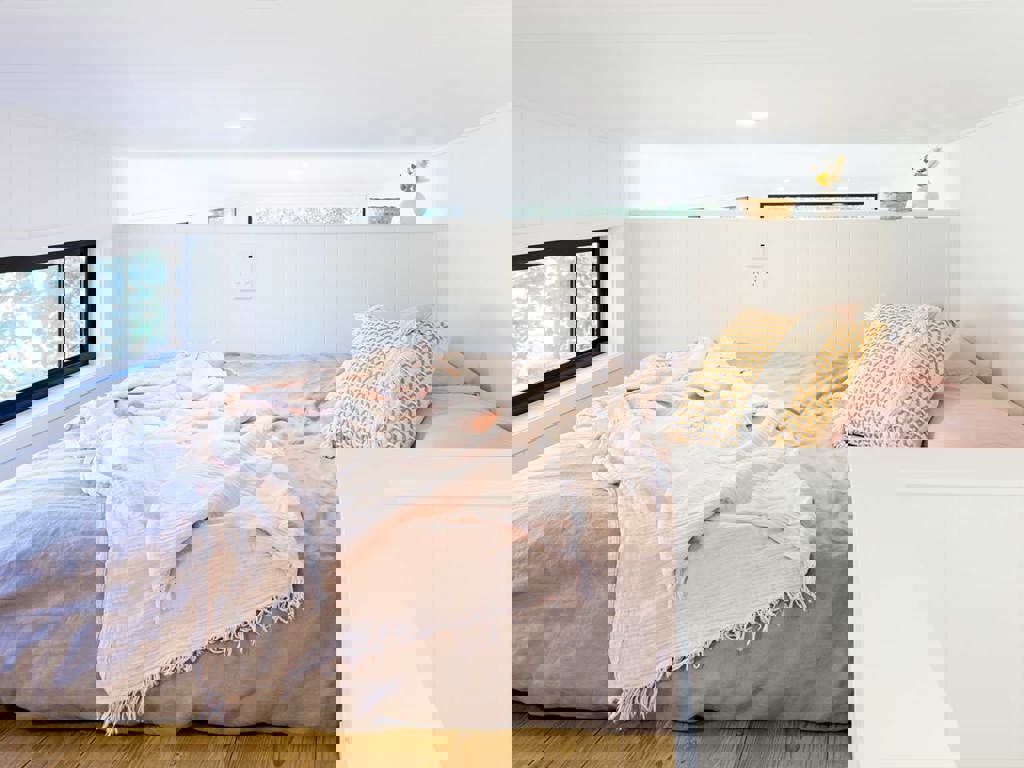

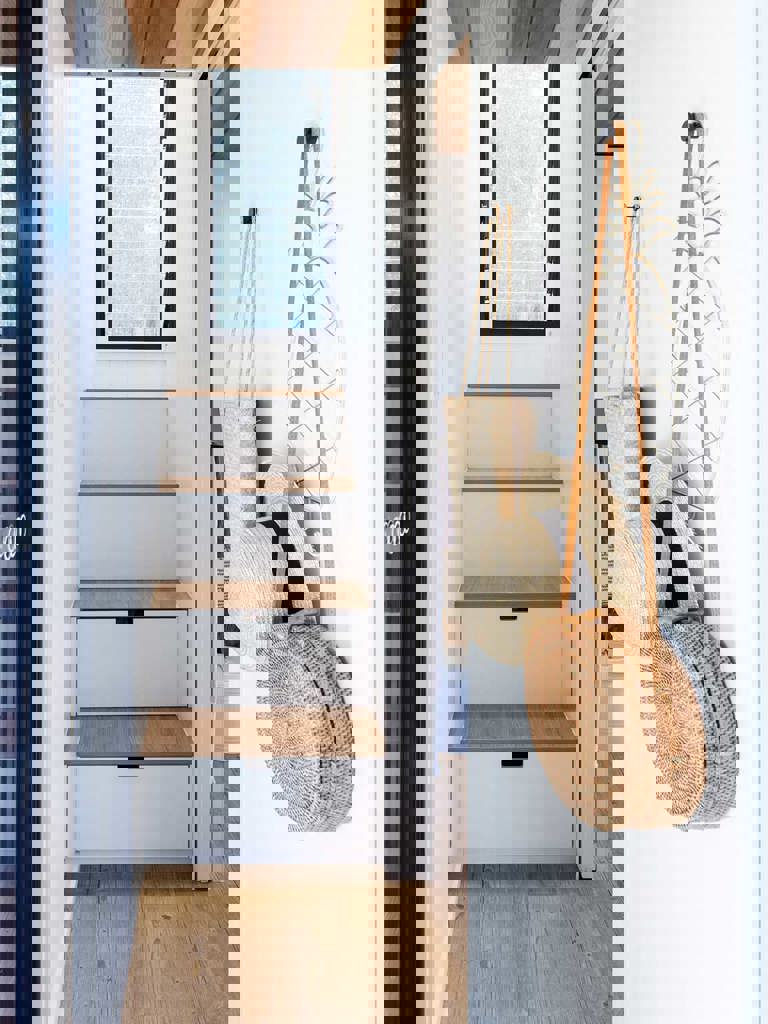

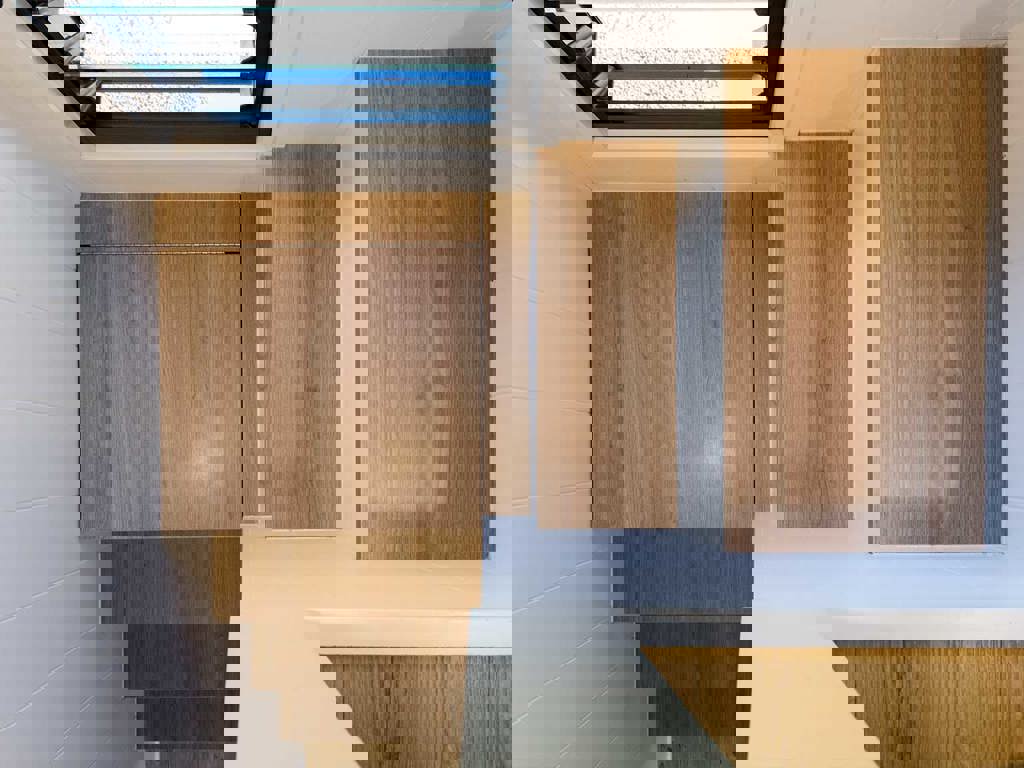

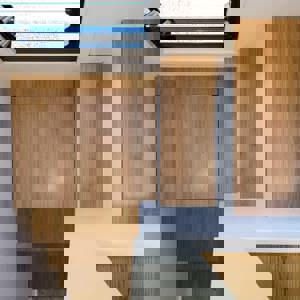

The rear stairs, including 2 storage draws and a deep storage bin, provide an effortless journey to the spacious loft overlooking the living area below. Comfortably position a Queen size bed and opt to include cupboards for extra storage.

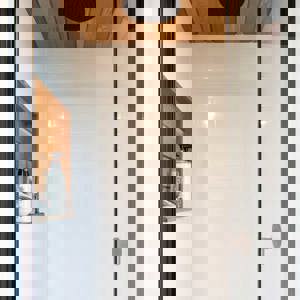

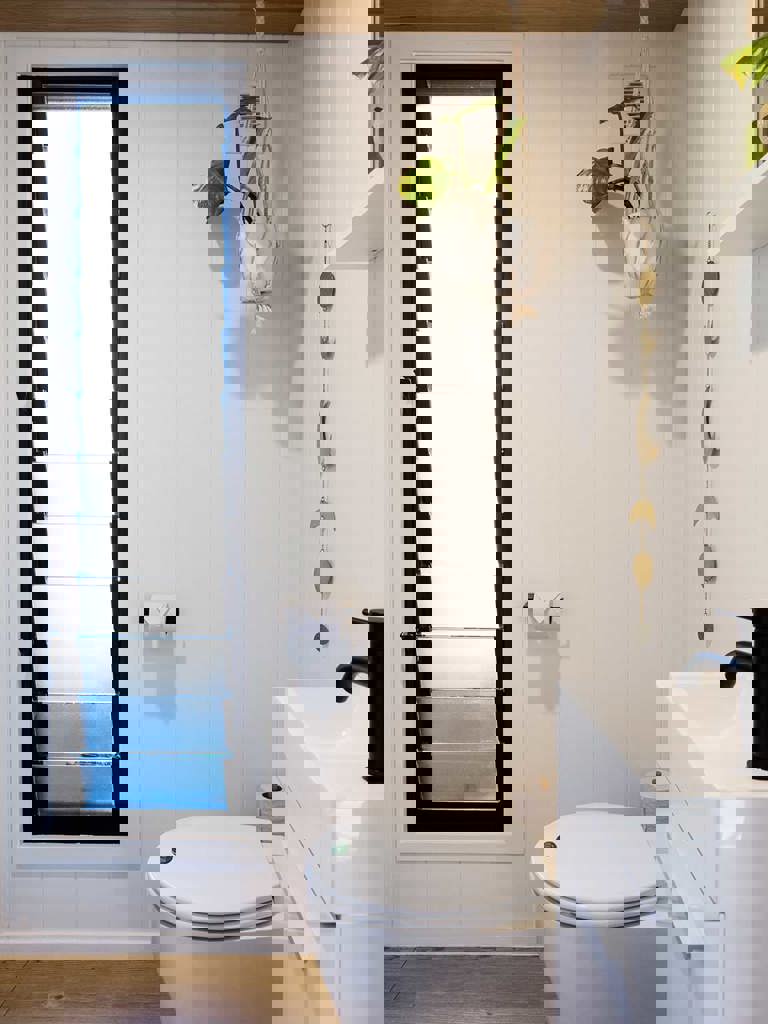

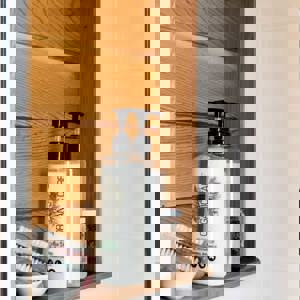

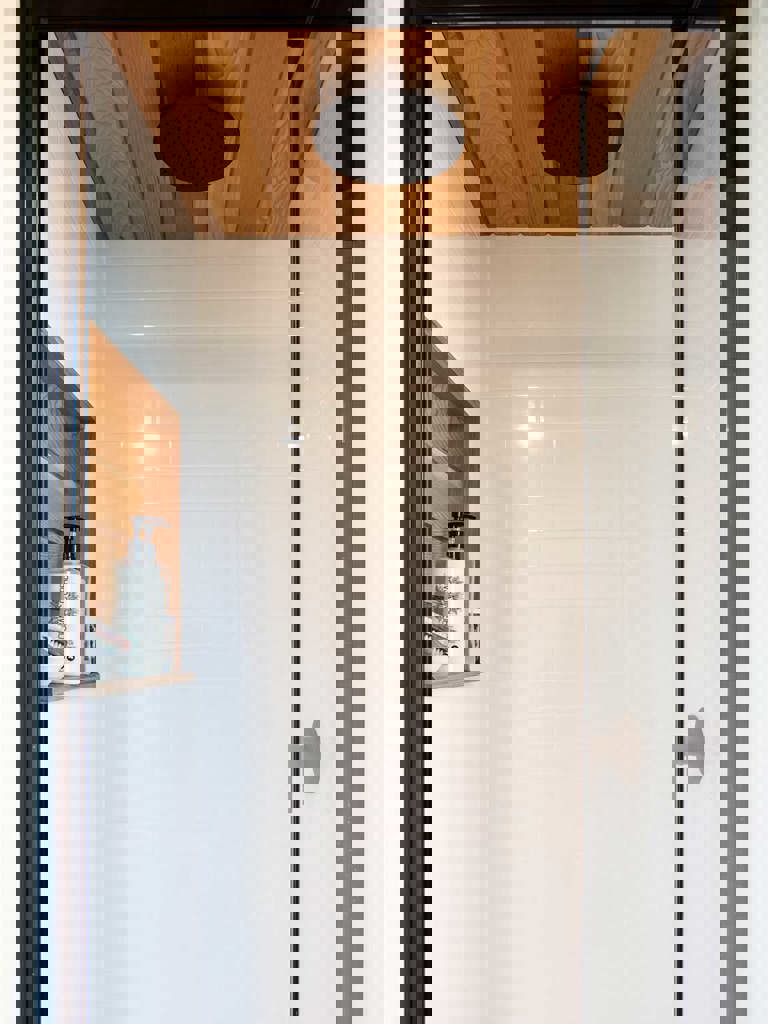

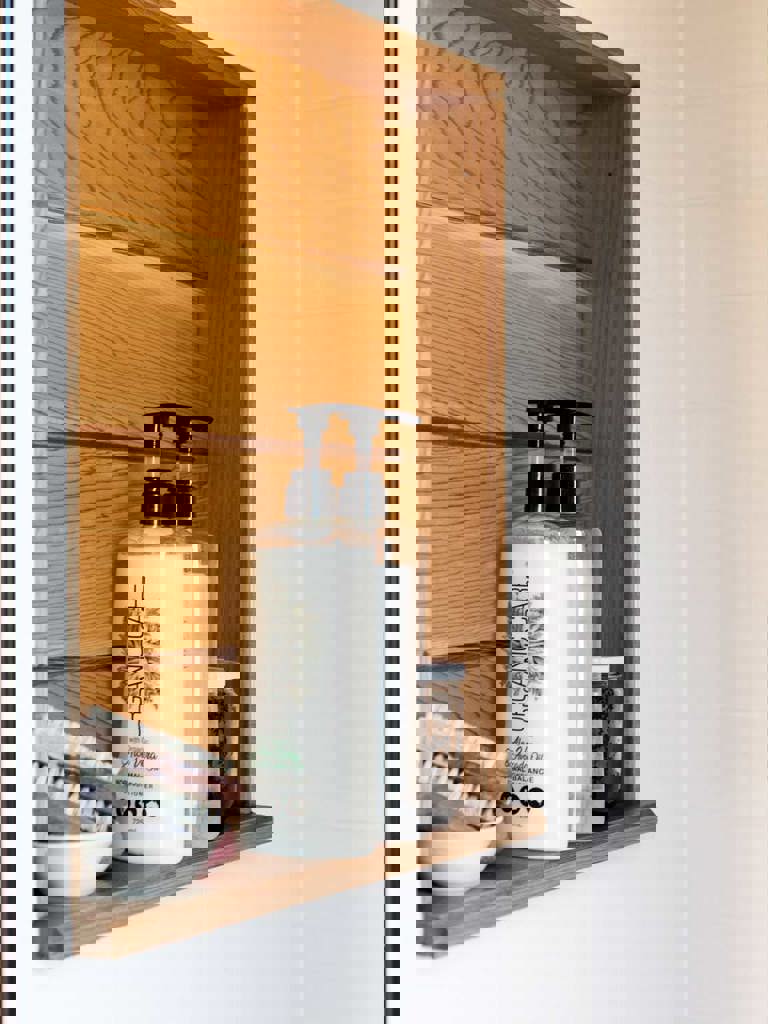

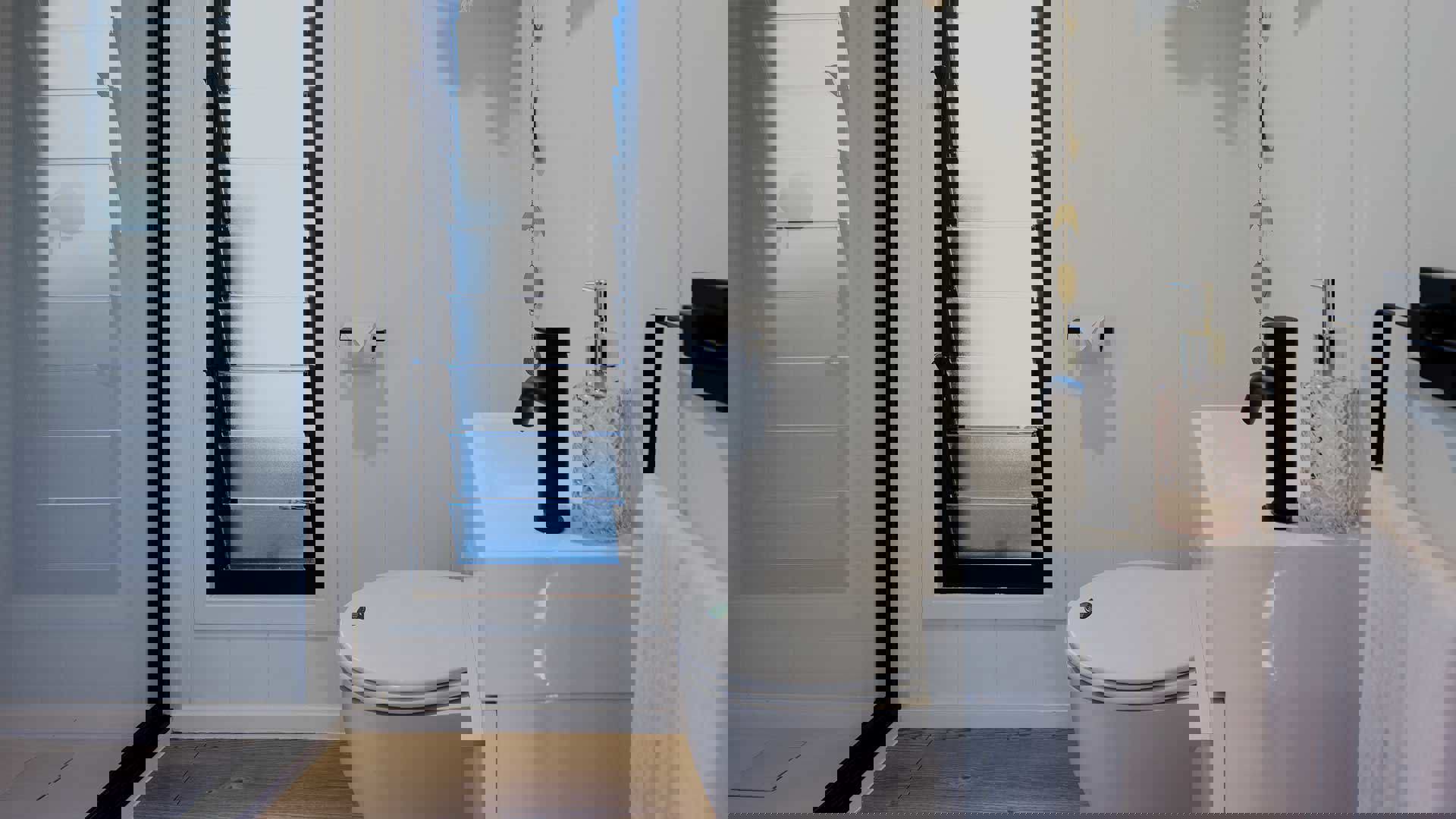

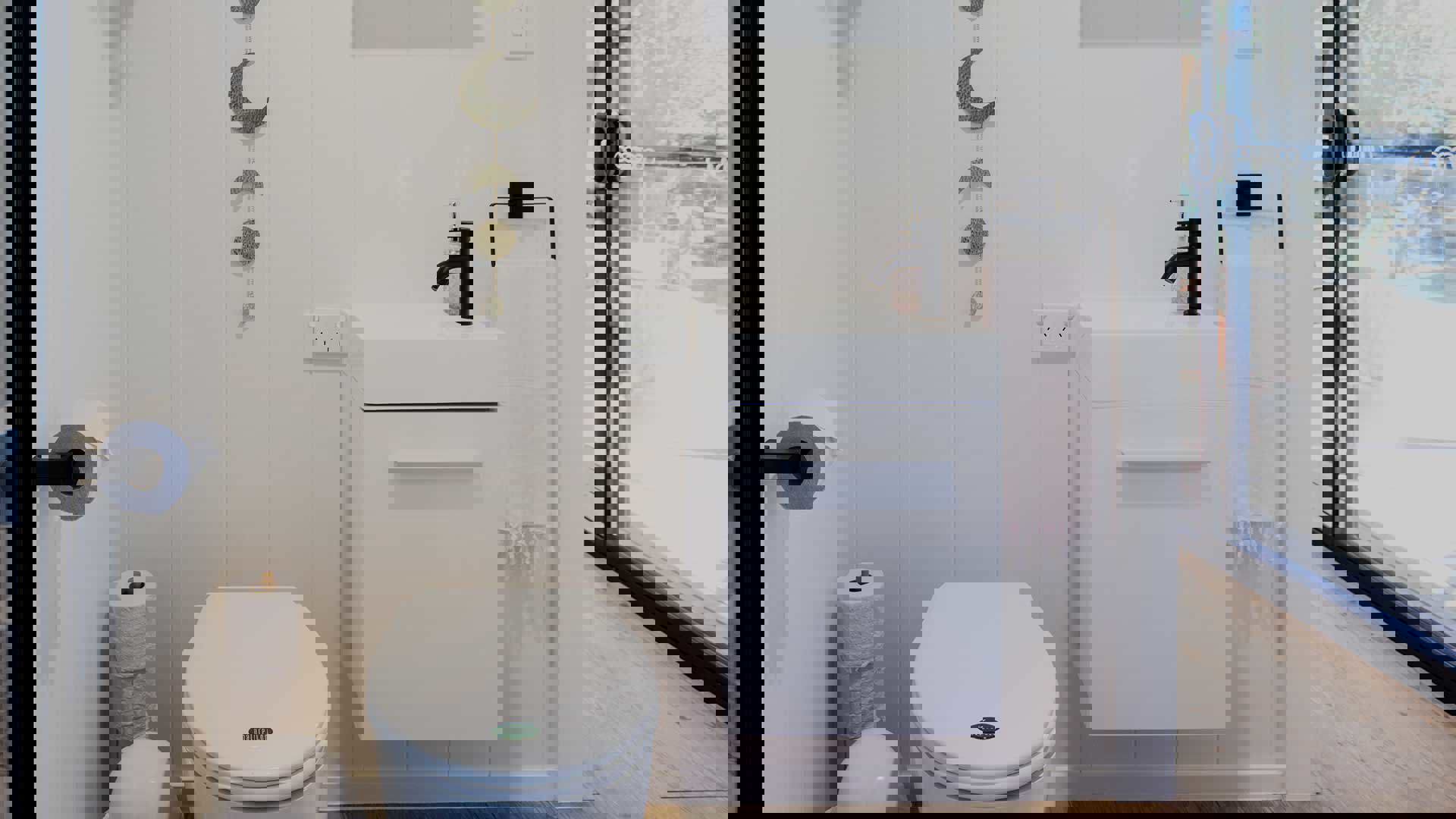

The bathroom is well-appointed with a shower, toilet, vanity, and a floor to ceiling double-hung window. It is deceptively spacious with plenty of light and a separate space for the washing machine under the stairs.

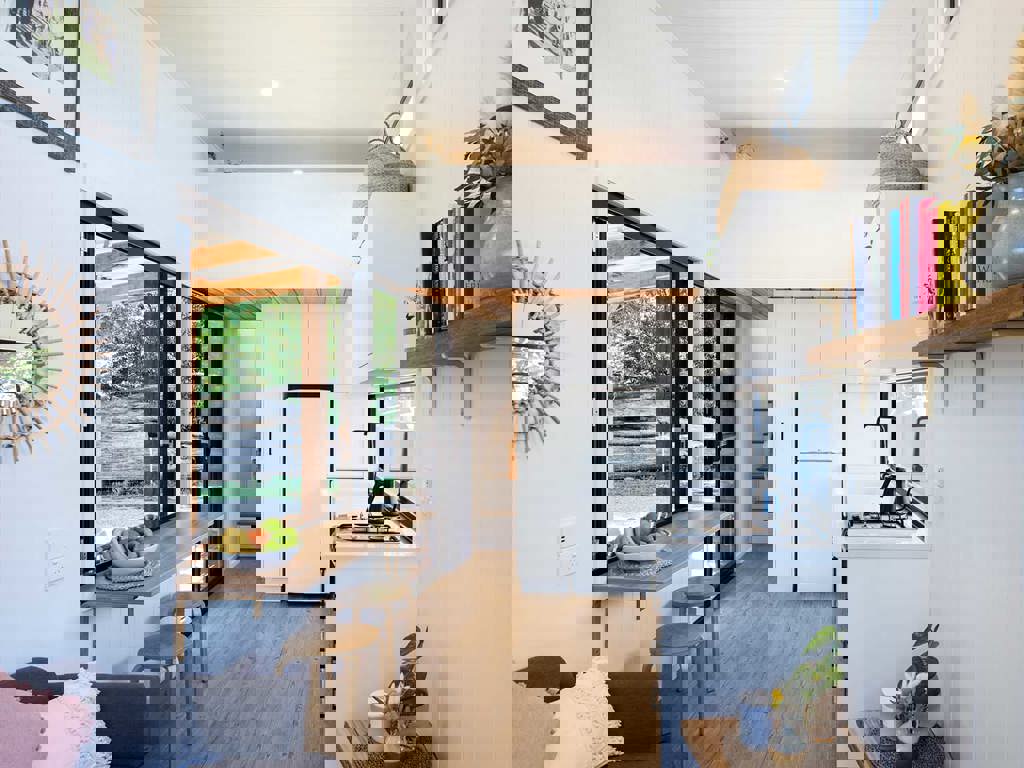

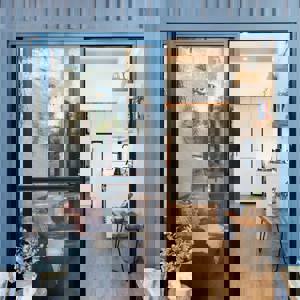

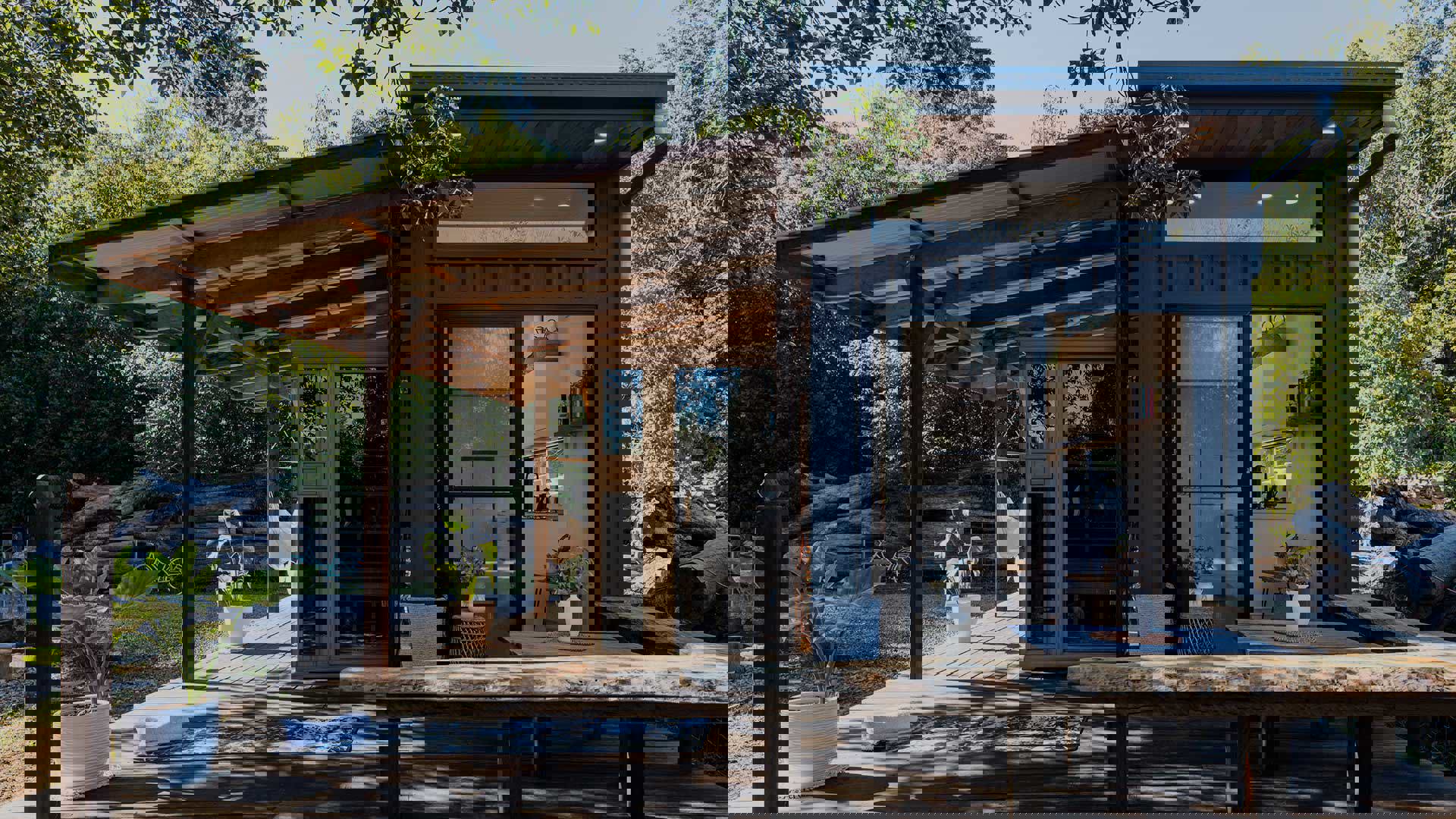

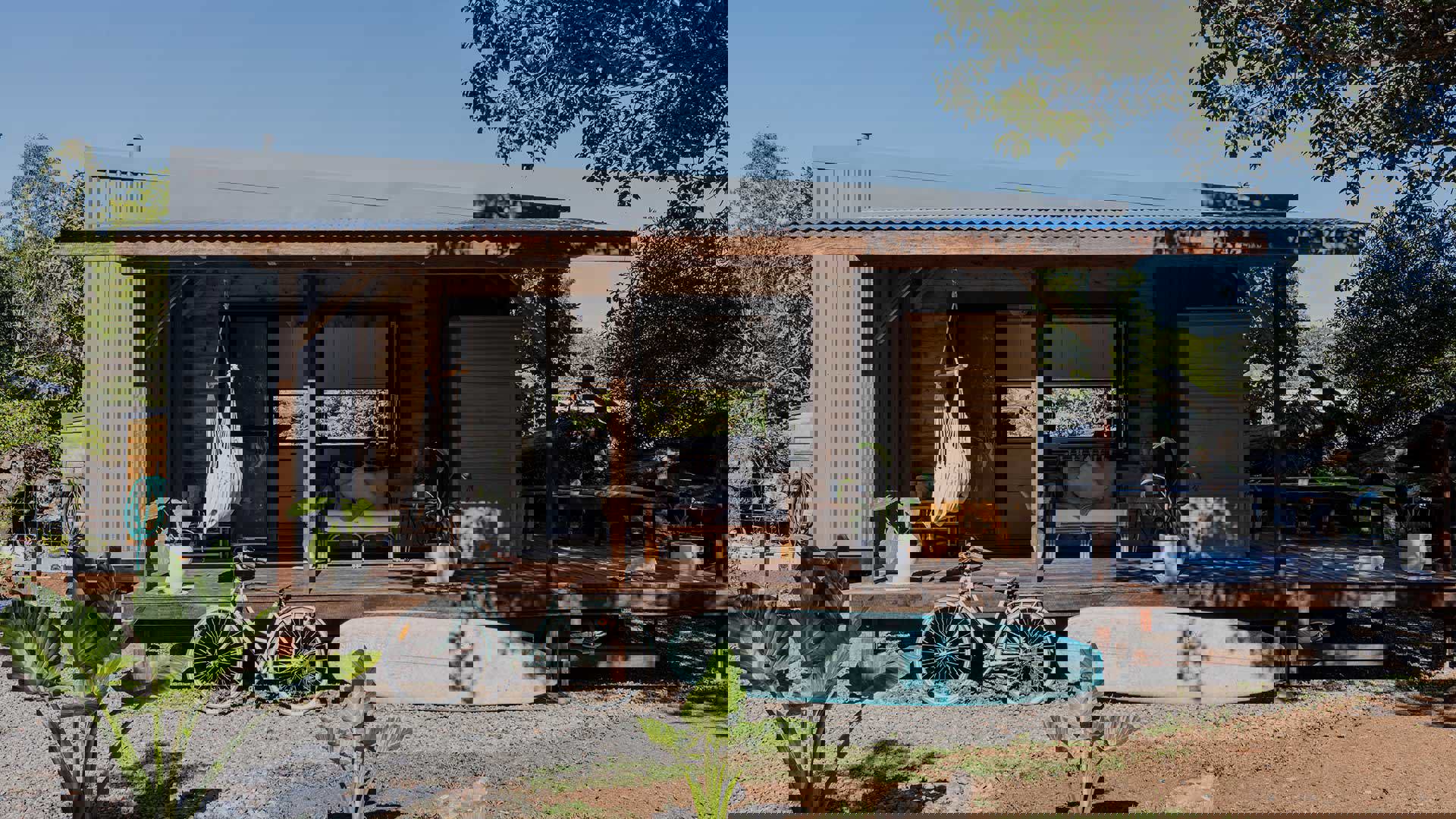

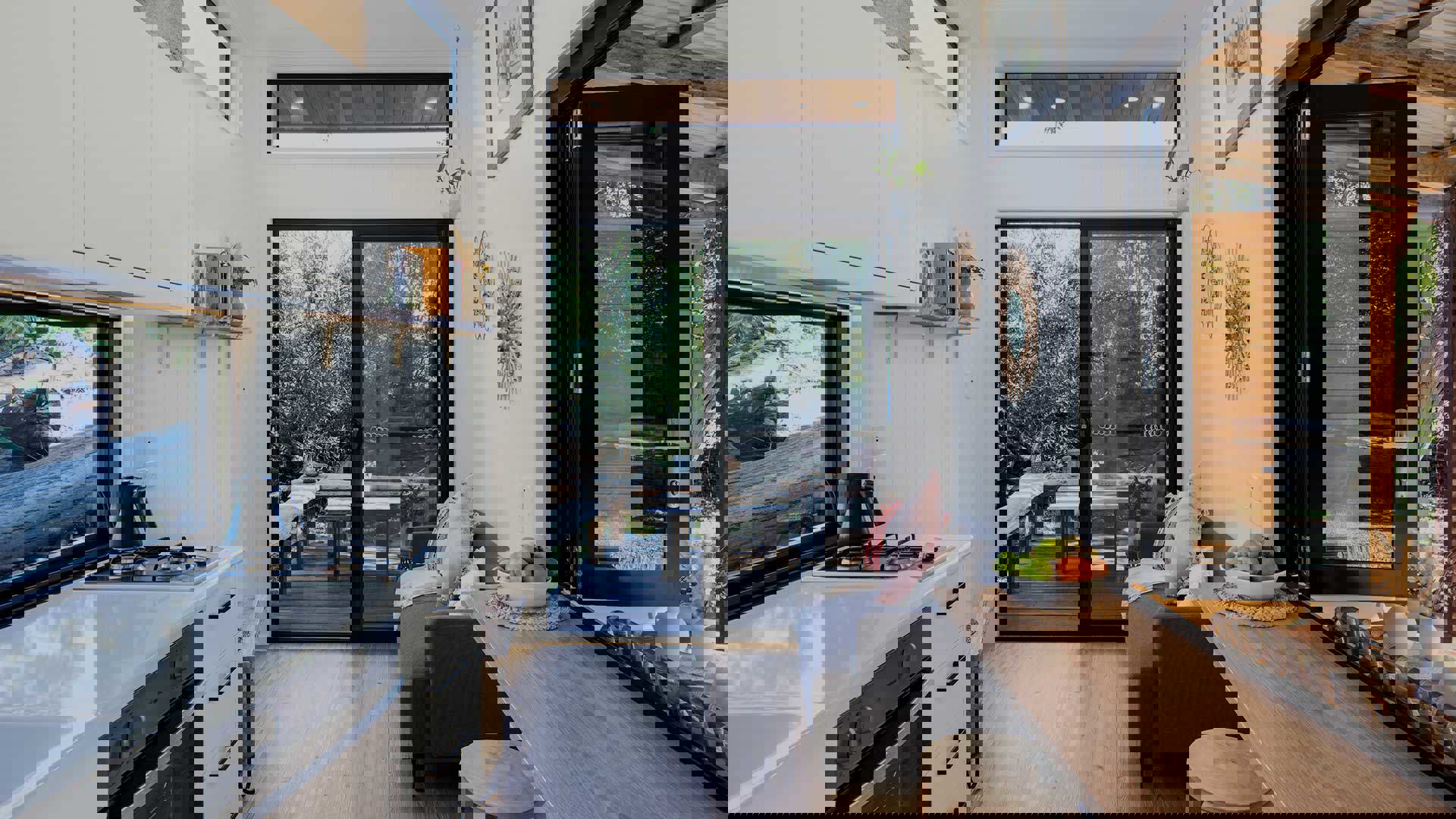

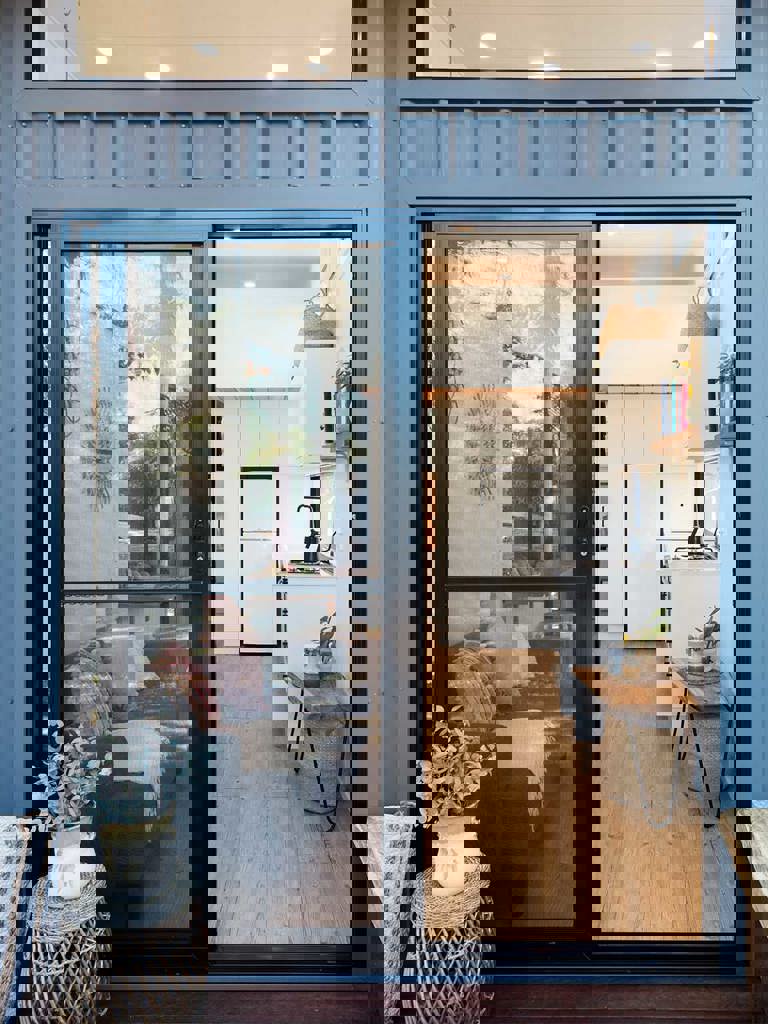

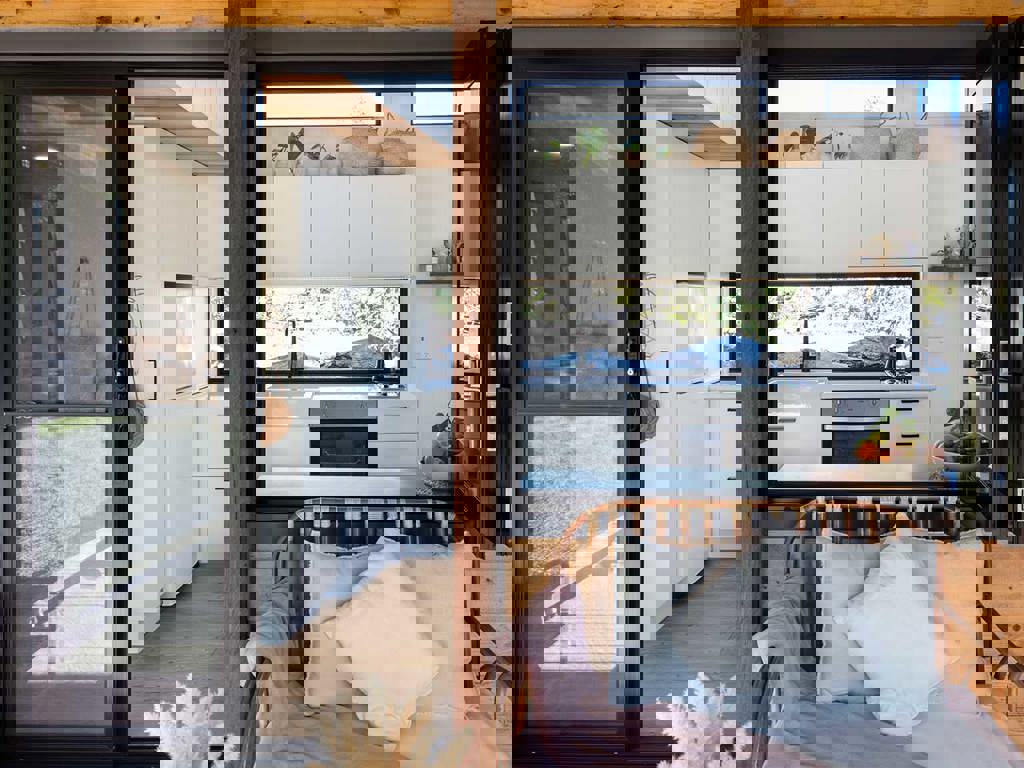

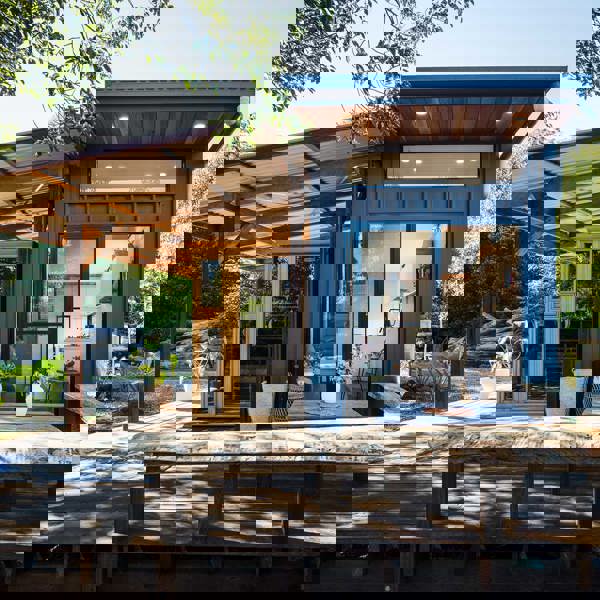

It is the living area that sets this Tiny House apart, creating a seamless indoor-outdoor experience. With high ceilings, 4 large windows and 2 sliding doors, an abundance of natural light floods the interior.

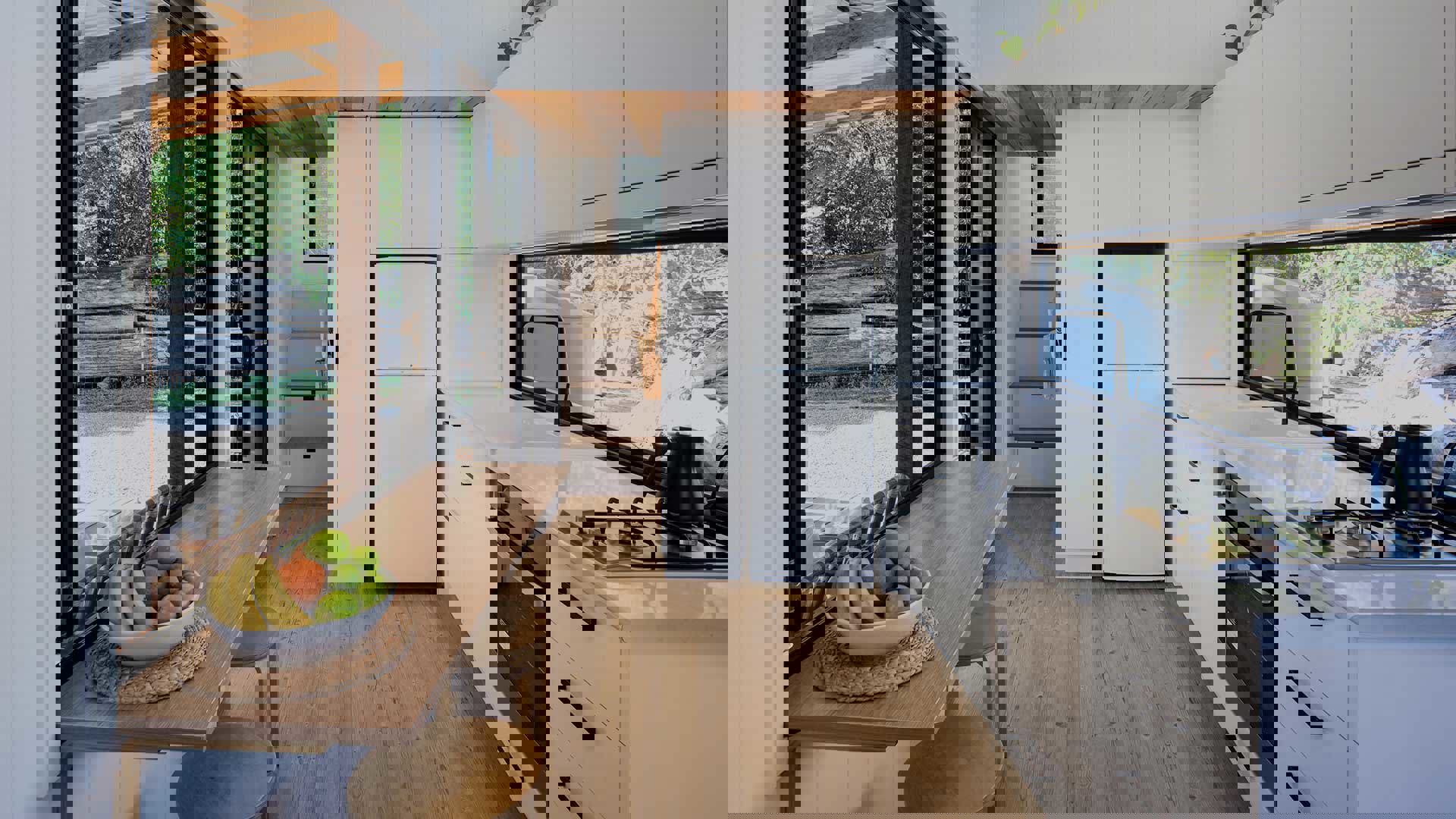

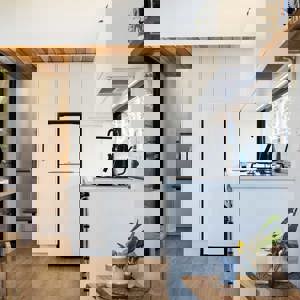

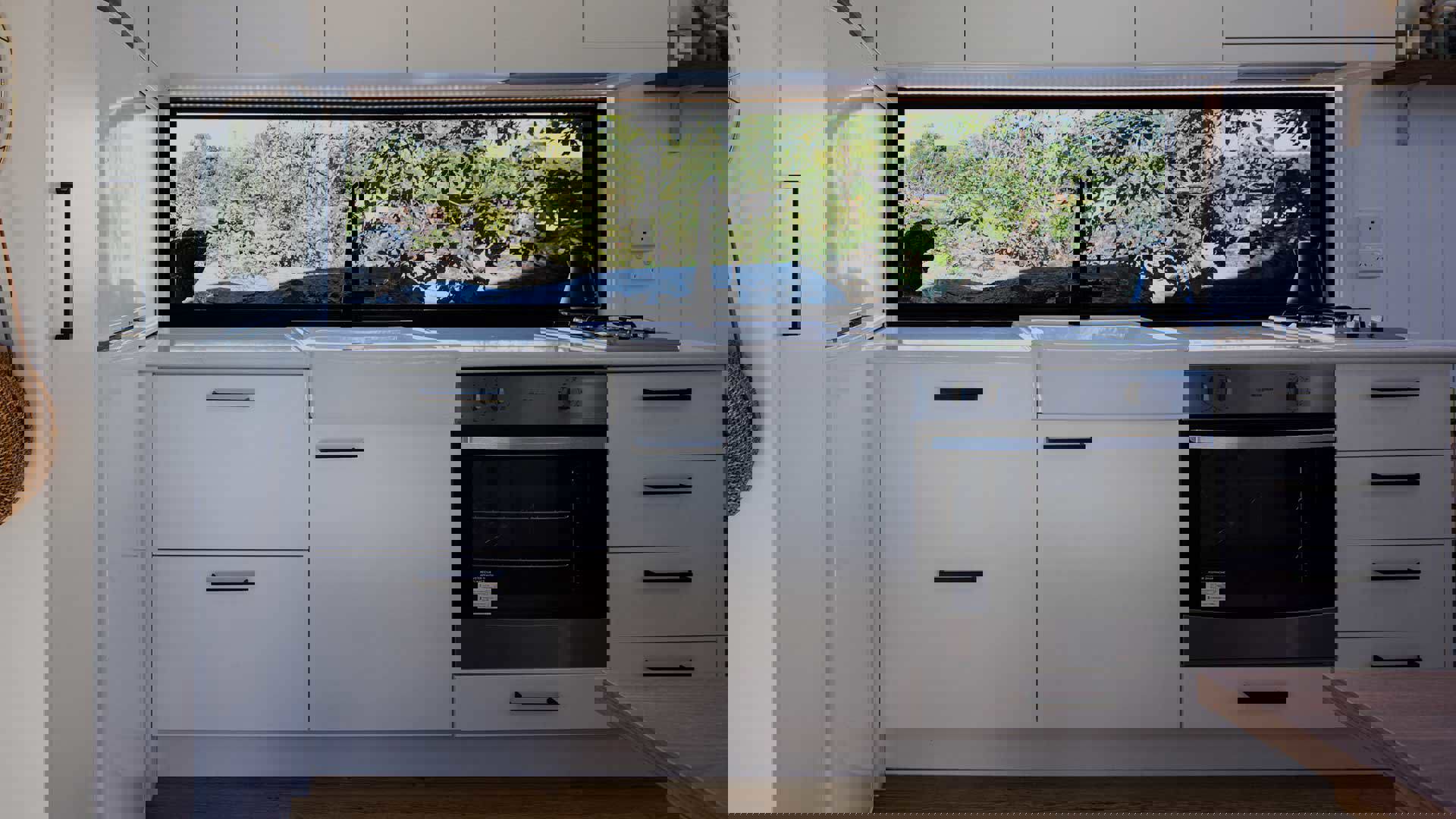

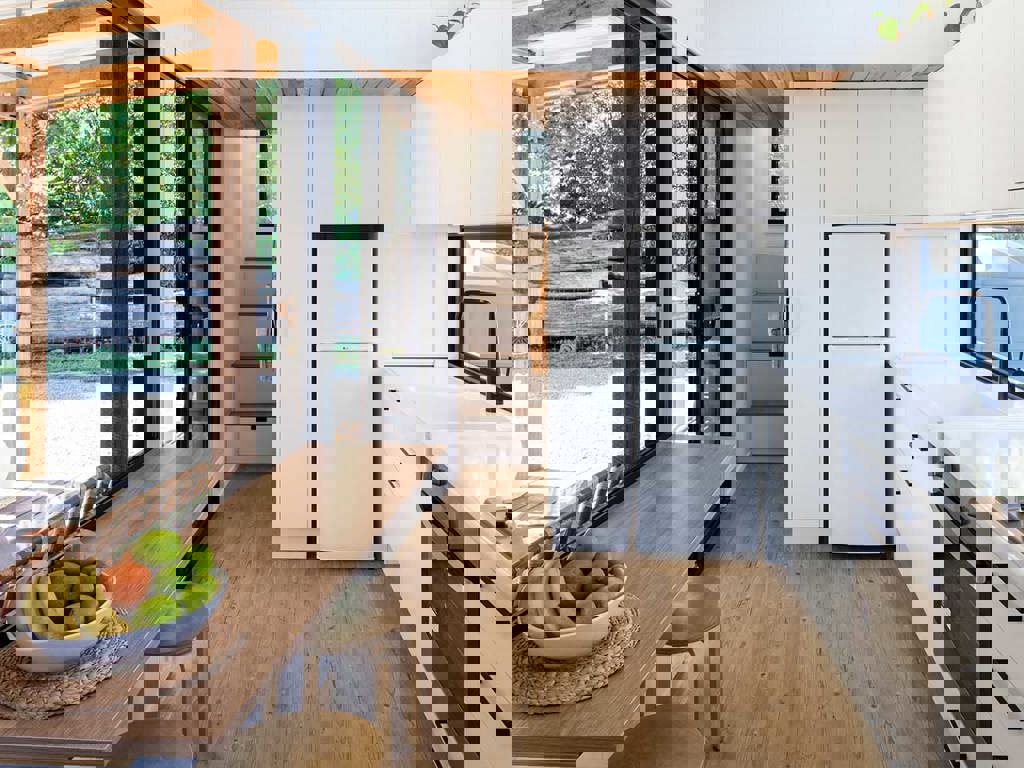

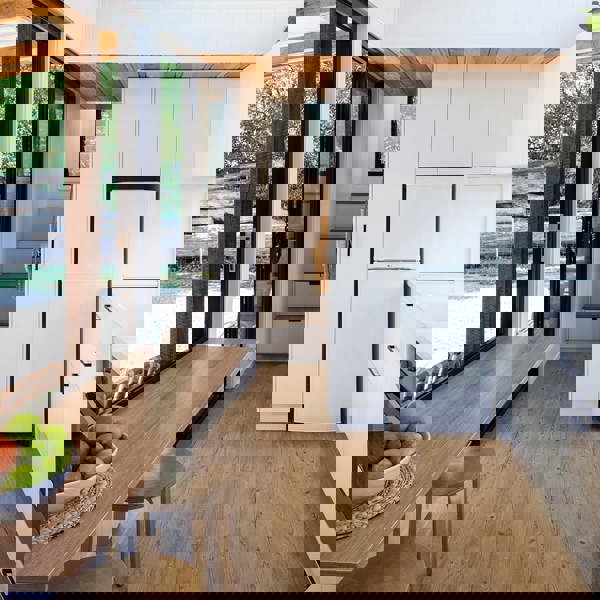

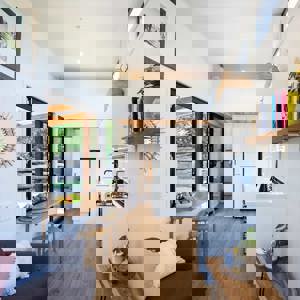

Boasting an L-shaped kitchen with full-height fridge space, appliance cupboard and plenty of storage under the bench and overhead, you’ll never run out of space in this “Tiny” kitchen.
There is also the optional TV/entertainment unit to provide even more storage options!
The Mooloolaba 7.2 has been described as a “New York” style Tiny House with an abundance of light and space.
*We offer three building stages; Lock-up, Shell and Turn-Key. You can customise your individual requirements and inclusions in each stage.
**The photos and virtual tour published for this model may have had some Upgrades added. Please get in touch to get Standard Inclusions information.

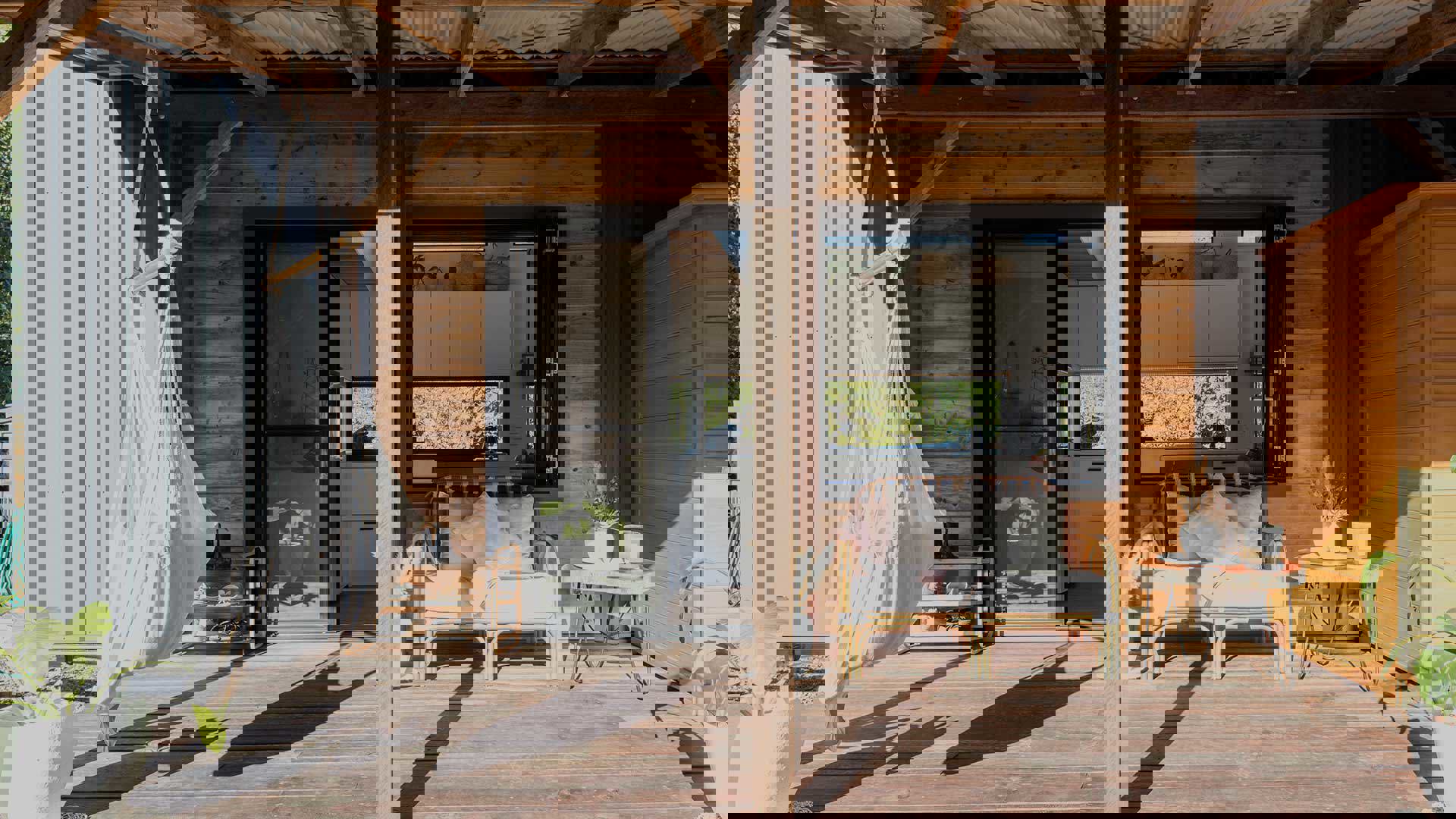

***All deckings and other external structures for our standard models are not included in the price and were either built by the client or a local builder arranged by the customer after delivery.
360° Virtual Tour
Features and Inclusions
Trailer
- Lower Profile Flatbed Trailer For Extra Loft space
- Trailer Fully Painted for extra protection
- Tri Axle Trailer Rated to 4.5TON
- VIN (Vehicle Identification Number)
- Electric Brakes on all wheels
- Break Away System
- Hand Brake System
- 4x Stabilizing Legs
Living Room
-
Windows and Doors
- Sliding Door 2100H X 1500W + Fly Screen
- 2x Fixed Glass Window 400H X 1500W
-
Cabinetry
- Built-in Storage Stairs (as per design)
-
Electrical
- 1x Double Power Point with USB
- 1x Led Ceiling Downlight
- 1x Double Power Point
Kitchen
-
Features
- 1.2M Breakfast Multifunction Bench Bar
- Appliance Cabinet with Roller Door
-
Windows and Doors
- Double Hung Window 1200H X 1200W + Fly Screen
- Fixed Glass Window 640H X 2070W
- Fixed Glass Window 400H X 1500W
- Sliding Door 2100H X 1500W + Fly Screen
-
Appliances
- Stainless Steel Gas Cooktop 2 Burners
- Stainless Steel Electric Built-in Oven
- Recirculating Slide Out Built-in Rangehood
-
Fittings
- Standard Chrome Kitchen Tap
- Standard Chrome Stainless Steel Sink
-
Electrical
- 2x Led Ceiling Downlights
- Smoke Alarm
- 4x Double Power Points
-
Cabinetry
- Kitchen Cabinets + Overheads (as per design)
- Soft Touch Close to Doors and Drawers where suitable
Bathroom
-
Windows and Doors
- Double Hung Window 1760H X 450W + Fly Screen
- Cavity Sliding Door 720W with Privacy Lock
-
Fittings
- Standard Chrome Shower Head
- Standard Chrome Shower Mixer
- Wall Hung Vanity
- Standard Chrome Basin Mixer
- Washing Machine Taps Ready
-
Electrical
- 1x Led Ceiling Downlight
- Extractor Fan
- 2x Double Power Points
-
Toilet / Shower
- Standard Flush Toilet
- Shower 820X820MM
Main Loft / Bedroom
-
Features
- Suitable for Queen or Double Size Bed
-
Windows and Doors
- Sliding Window 400H X 1500W + Fly Screen
- Double Hung Window 1340H X 600W + Fly Screen
-
Electrical
- 2x Led Ceiling Downlights
- 1x 2 Way Light Switch
- 1x Double Power Point
- 1x Double Power Point with USB
-
Cabinetry
- Storage Robes (as per design)
Internal / Structure
- Waterproof Engineered Vinyl Floor Boards
- Insulation Batts Earthwool R 2.5
- Insulated Subfloor R 1.4
- Steel Frame Engineered C2 (cyclone rating)
- Fully Painted - 1x colour option
Exterior
- Safety Switch Board
- 2x External Double Power Point
- Power Inlet 15 AMP
- Colorbond Steel Roof and Wall Cladding
- Gas Aluminium Storage Box
- External Porch Light Provision
- Water Inlet
- Dual Gas Regulator
- Gas Hot Water System
Plans & Layouts
-
Mooloolaba 7.2

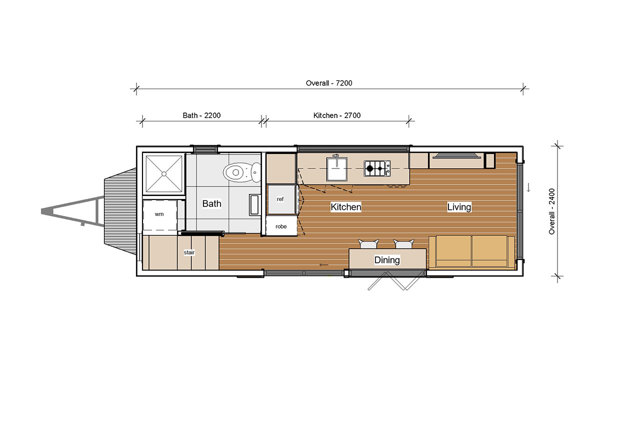

Floor Plan
-
Mooloolaba 7.2

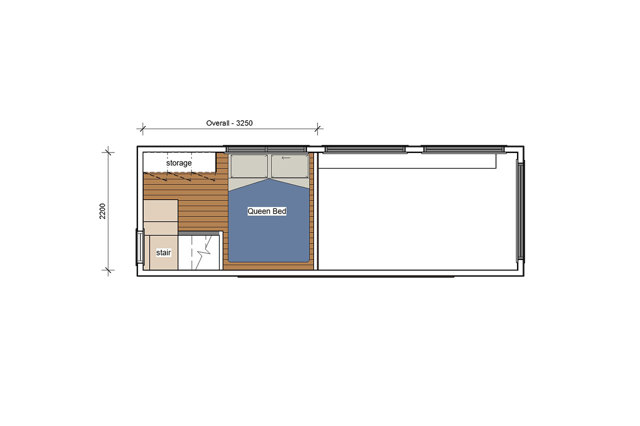

Loft Plan
-
Mooloolaba 7.2

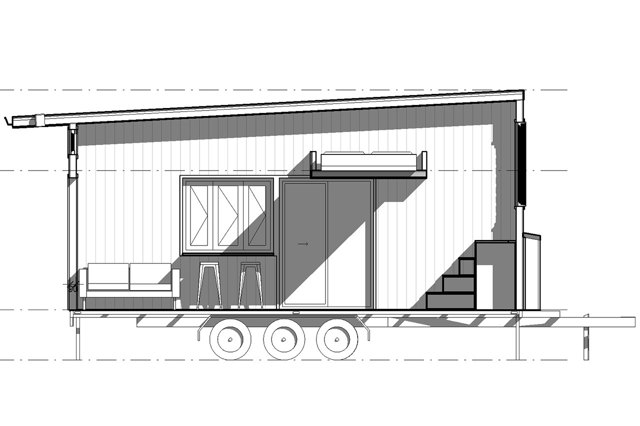

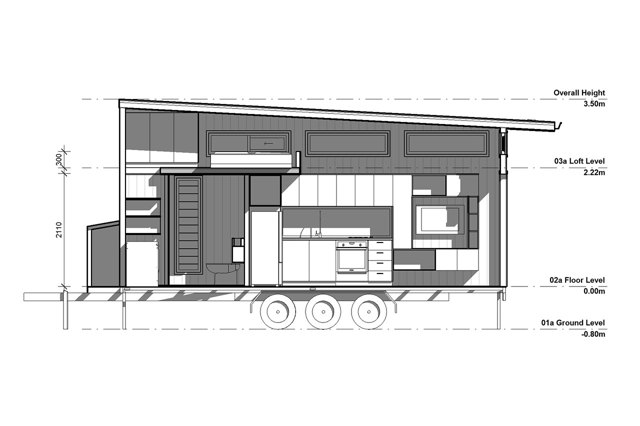

Section 1
-
Mooloolaba 7.2
Section 2
UPGRADES and Packages
-
Overall Length Upgrade
- Length Upgrade from 7.2M to 8.4M – $7,000.00
-
Heating and Cooling
- Air Conditioning 2.5Kw (Heating and cooling) – $2,650.00
- Ceiling Fan with Light and Remote Control – $600.00
-
Kitchen / Appliances
- 221L Fridge and Freezer – $900.00
- Dual Burner Electric Cooktop – $200.00
- Dual Burner Gas Cooktop Black Glass Finish – $280.00
- Stainless Steel Gas Built-in Oven – $1,000.00
- External Ducting Kit (Rangehood) – $500.00
- Built-in Single Dishwasher Drawer – $1,750.00
- 5KG Front Loading Washing Machine – $1,400.00
-
Bathroom
- Recessed Shaving Cabinet Single Door with Mirror – $340.00
- Toughened Glass Semi Frameless Shower Screen – $850.00
-
External / Internal
- Cedar Cladding Feature Wall – $1,650.00
- Ply Wood Shadow Gap Feature Ceiling – $2,000.00
- Bathroom / Kitchen Cedar Feature Ceiling – $1,600.00
-
Solar Packages
- Solar Trailer (without panels) – $5,000.00
- Generator - Westinghouse 8500W – $2,760.00
-
Cabinetry
- TV Unit Cabinetry - $2,200.00
-
Skylight / Roof Windows
- Velux Manual Skylight (VCM) + Blinds + Screens – $2,600.00
- Velux Power Skylight (VCS) + Blinds + Screens – $3,200.00
- Bi-Fold Servery Window Breakfast Bar – $2,300.00
- Gas Strut Servery Window Breakfast Bar – $2,400.00
- Bi-Fold / Gas Strut Custom Fly Screen – $800.00
- Louvre Full Size Window Bathroom – $850.00
- Louvre Window Hall – $660.00
-
Water
- 2500L Slimline PVC Water Tank – $1,600.00
- 5000L Slimline PVC Water Tank – $2,500.00
- 2500L Slimline Steel Water Tank – $2,300.00
- 4000L Slimline Steel Water Tank – $2,700.00
- 3000L Round PVC Water Tank – $1,500.00
- 5000L Round PVC Water Tank – $1,800.00
- Water PUMP – $750.00
- Ezgrey Greywater Diversion System – $1,350.00
- Grease Trap 45L – $450.00
-
Composting Toilets
- CM LP 2 Split System Package – $2,800.00
- Clivus Multrum CM2 – $1,260.00
- Ecolet Separera 30 – $1,950.00
- Electric Cinderella Incinerating Toilet – $8,200.00
- Gas Cinderella Incinerating Toilet – $8,200.00
| Solar System Options | |||||
|---|---|---|---|---|---|
| Specifications and Inclusions | Models | ||||
| EPS 2-2 | EPS 2-5 | EPS+ 3-7 | |||
| Battery Storage kWh | 2.4 | 4.8 | 7.2 | ||
| Battery Type | Lithium | Lithium | Lithium | ||
| Solar Panel Qty | 5 | 6 | 6 | ||
| Solar Panel Size (Watts) | 370 | 370 | 440 | ||
| Solar Capacity (Watts) | 1850 | 2220 | 2640 | ||
| Inverter Model | Luxpower | Luxpower | Victron | ||
| Inverter Normal (Watts) | 3000 | 3000 | 5000 | ||
| Inverter Peak (Watts) | 3600 | 3600 | 10000 | ||
| 4G Modem with Wifi | Yes | Yes | Yes | ||
| EPS Cabinet | Yes | Yes | Yes | ||
| Smart Phone Access | Yes | Yes | Yes | ||
| Application |
Light Small Fridge LED Lights 240v Appliances TV/Computer No AC system Gas Appliances |
Medium Medium Fridge LED Lights 240v Appliances TV/Computer Small AC system Gas Appliances |
Heavy Medium/Large Fridge LED Lights 240v Appliances TV/Computer Small AC system Gas Cooktop Electric Oven Dishwasher |
||
| Total cost Installed | $12,708.50 | $15,605.20 | $20,811.40 | ||
| Extra Components | Cost Installed | ||||
| Solar Panel (370watt) 1763x1040mm | $700.00 | ||||
| Solar Panel (440watt) 2115x1052mm | $820.00 | ||||
| 2.4KW/h battery module | $2700.00 | ||||
| Generator - Westinghouse 8500W | $2760.00 | ||||
;
** Pricing information is indicative only, subject to change without prior notice due to supplier prices and/or unforeseen economic circumstances and does not constitute an offer or contract.
